Stanley QCL171 Grade 1 Heavy Duty Cylindrical Lock - Storeroom Function - SFIC Prep - Less Core
Product Details
Stanley QCL171 Grade 1 Heavy Duty Cylindrical Lock - Storeroom Function -*SFIC Prep - Less Core*

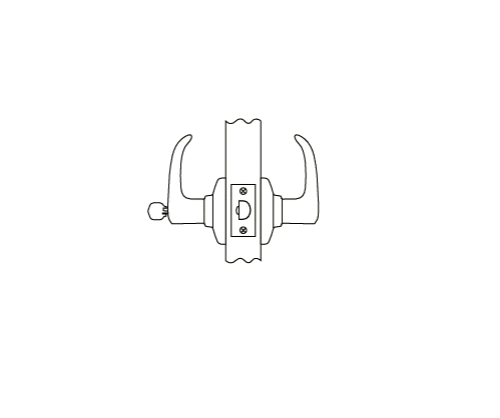

Function - QCL170 Storeroom - SFIC Prep - Outside lever always locked. Entrance by key only. Inside lever unlocked and free for immediate egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism..
ANSI F86
Performance Features:
- Tested to meet Grade 1 specification of 800,000 cycles.
- Standard clutching mechanism provides resistance to damage caused by physical force.
- Thru-bolt design and heavy-duty spring tension provides longer performance life and prevents lever sag.
- Concealed mounting screws.
- Compartmentalized packaging allows for quick and easy installation.
Certifications:
- ANSI/BHMA A156.2 Series - Grade 1.
- ANSI A117.1 Accessibility Code (ADA Compliant).
- UL/cUL Listed (3 hours) for 'A' label single-door applications.
(4' x 8') (1.219m x 2.438m).
- UL10C/UBC 7-2 (1997) Positive Pressure Rated.
- UL10B Pressure Rated.
- California State Reference Code (formerly Title 19 - Fire Marshal).
- Hurricane Compliant - Miami-DADE N.O.A. See page 78 for more details.
Product Specifications:
Handing:
All QCL100 Series Levers Locksets are non-handed.
Door thickness:
1 3⁄8" - 2" (35mm-51mm) standard.
Backset:
2 3⁄4" (70mm) square standard. 2 3⁄8" and 5" (60mm, 127mm) available.
Exposed trim:
Pressure cast zinc, plated to match finish designation.
Strike:
ANSI Strike 1 1⁄4" x 4 7⁄8" (32mm x 124mm) standard.
Other strike options also available.
Door prep:
2 1⁄8" (54mm) diameter cross bore.
Latch bolt:
Keyed/Exterior 1⁄2" (12.7mm) steel throw; Interior 1⁄2" (12.7mm) spring latch.
Latch faceplate:
1 1⁄8" x 2 1⁄4" (29mm x 57mm) standard.
- Single dummy is surface mounted.
- Electrification options available.
Finishes:
605 Bright Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 625 Bright Chrome, 626 Satin Chrome.
Keying:
- 6-pin non-IC brass cylinders. 6 or 7 pin SFIC option available. Many keying options available from our factory to include, but not limited to, master keying, grand master keying and construction keying.
- 2 keys per lockset.
- Offered with the following keyway options: BF-BEST "F" SFIC, KWKwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, & LC-Less Cylinder.
Consult factory for other cylinder options.
Warranty:
- Lifetime Mechanical, 3-year finish,* and 1-year electrical.
*(613/US10B carries no finish warranty).
