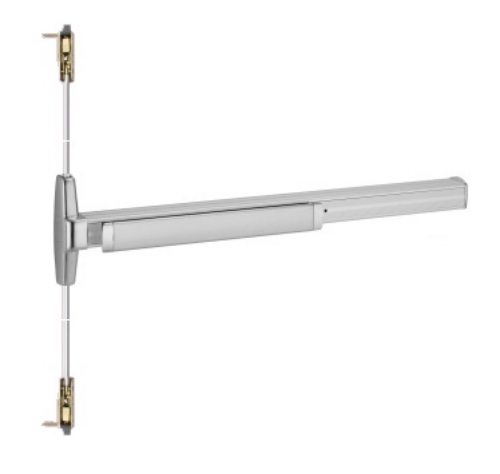

Von Duprin 3547A-EO Concealed Vertical Rod Exit Device - Smooth Mechanism Case

Von Duprin 3547A-EO Concealed Vertical Rod Touch Bar Exit Device - Exit Only

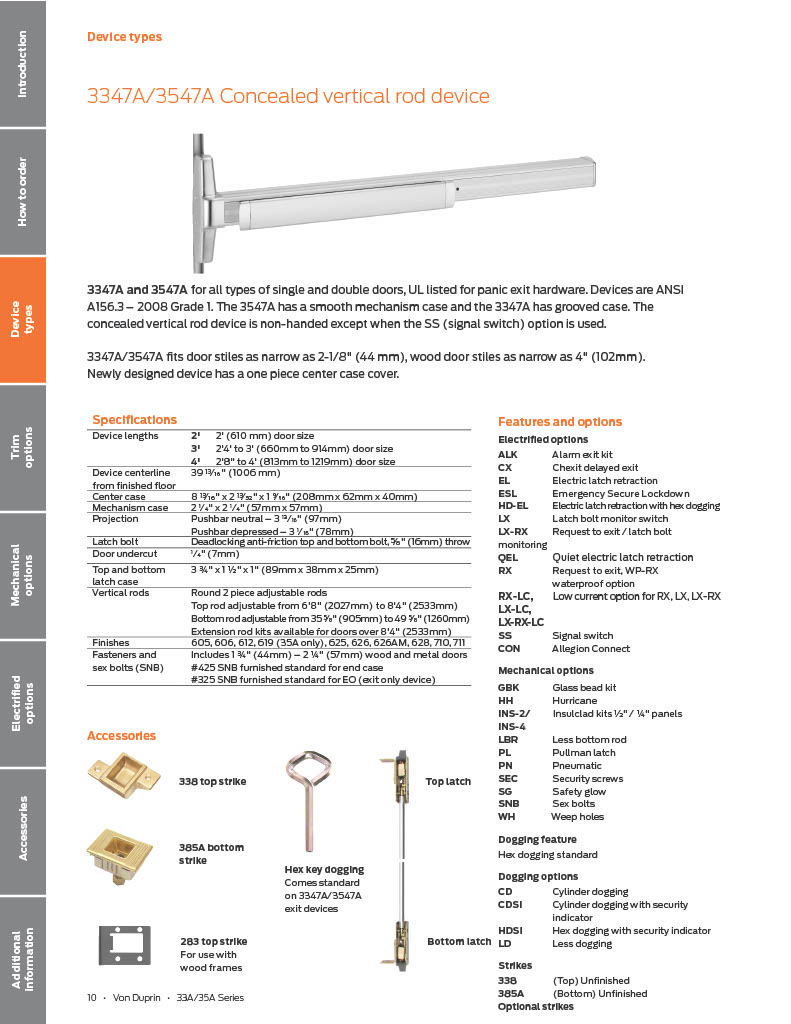

"3547A Series has a smooth mechanism case"

Device Handing:Non-Handed (except when the SS (Signal Switch) option is used).

Device Lengths:*3'- 2' 4" to 3' (711mm to 914 mm) Door Size,4-*2' 10" to 4" (864 mm to 1219 mm) Door Size.

Door Height:up to 8' 4" (2533mm). Extension rods available for door heights up to 10'.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze,US26 - Bright Chrome, US26D - Satin Chrome, US28 -Aluminum Anodized, 313AN - Anodized Duranodic (Dark Bronze), 315AN - Anodized Black.

Strike:Top 338 Unfinished, Bottom 385A Unfinished

.

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Sex Bolts #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt 5/8" (16mm) throw.

Device Centerline from Finished Floor:39 5/8" (1006mm) Standard, Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm).

3347A/3547A fits door stiles as narrow as 1-3/4" (44 mm), wood door stiles as narrow as 4" (102mm).

All 33A/35A series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 3547A, 3547AEO, QEL3547A, EL3547A, RX3547A, US3, US4, US10, US26, US26D, US28, 313AN
