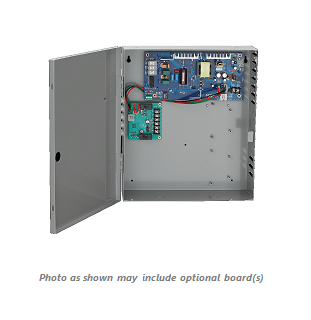

Von Duprin PS902 Base Power Supply 2 Amps

Von Duprin PS902 Base Power Supply 2 AmpsOverview:

The Von Duprin PS902 2-amp power supply is designed to deliver a highly filtered and regulated "clean" output to protect downstream devices. The PS902 is factory and field configurable to suit specific needs. Separate battery management extends battery life and ensures consistemt output.

Applications:

The PS900 Series of power supplies works with many electrified devices including Schlage electromagnetic locks, Schlage AD-Series hardwired locks, Schlage electrified mechanical locks, Von Duprin electrified strikes , Von Duprin exit devices, and many other brands.

Number of connectors on power supply for the following: 2 ampsDistribution boards:  1 Battery back-up board: 1

Output*:*

2 ampClean, consistent power output helps protect the sensitive circuitry of downstream productsOverload protection prevents too much current being pulled by an overload of devices12/24 VDC output field selectable with plug-in jumper Externally visible LED indicator provides visual status on AC inputAbility to provide continual power with battery backupInput:

Universal 120-240 VAC, fused primary inputExternally visible AC input indicator with isolated SPDT contactsBattery back-up board auto-selects voltageLED indicator provides visual status on DC outputInstallation

Order to specification or field configure; option boards use polarized plug-in connectors to simplify in-field expansionsOption boards enable basic fuse protection, simple relay, advanced logic with sequencing and timing, panic device control, fire alarm relay and battery backupCabinet accommodates 2 batteries and up to 2 option boards, plus fire alarm relay and battery backup boards**Option boards:

**900-4R: 4 relay controlled output board to power multiple devices

900-4RL: 4 relay distribution board with logic is field configurable for time delay function, auto operator, security interlock

900-8F: Provides 8 individually fuse-protected outputs, giving the flexibility to power multiple devices and provide another layer of protection

900-FA: Emergency interface relay integrates with fire alarm and is used to cut power in case of emergency

900-BB: Battery backup

900-2RS: 2 relay EL panic device control board (PS914 only)

900-BBK: Battery backup kit includes two 7A/hr batteries and provides up to four hours of backup power when cycled every 5 minutes at full load

Certifications:

UL 294 certified the standard for access control Class 2 rated

Von Duprin PS902, PS902-BB, PS902BBK

Flat mounting of option boards provides easier access to terminal blocks for connection of electrified devices High voltage protective cover Fire alarm relay can be configured to provide either switched or un-switched outputs from a power supply Low voltage DC, regulated and filtered Electronic power limiting foldback circuit for AC current overload protection AC status monitor- isolated SPDT contacts Cover mounted AC input indication Hinged cover with lock down screws
