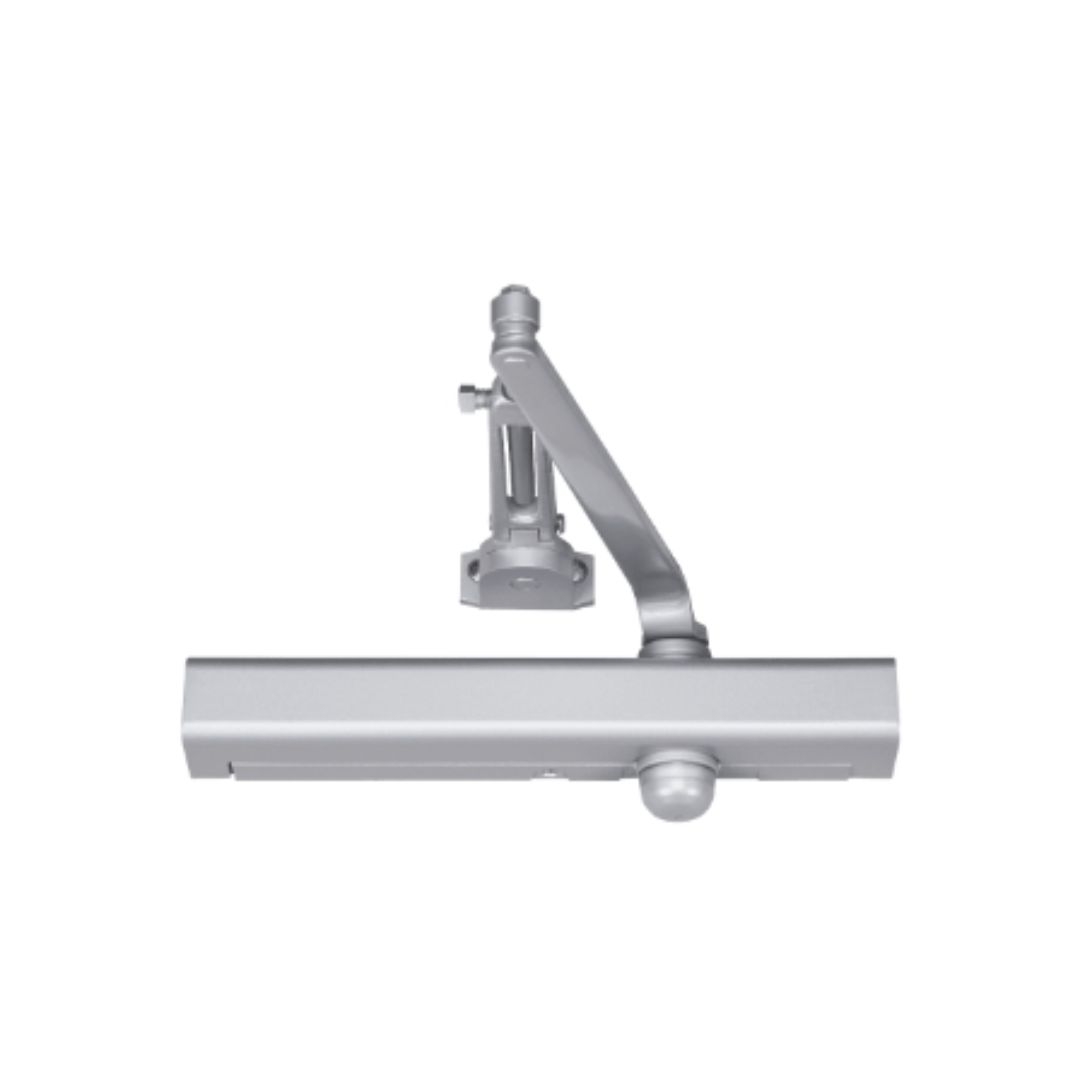

Accentra (Yale) 3301 Multi-Sized Door Closer W/ Slim Cover

**

Features**

Non-handed

3301 -shipped with slim-line plastic cover

includes sex nuts

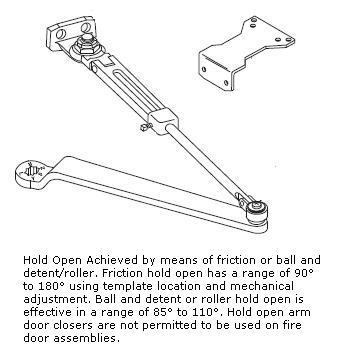

includes parallel arm bracket

Power Size:Multi-Sized Door Closer Adjustable through the power range of sizes 1 through 6.**

Standard, separate and independent, latch, sweep andbackcheck intensity valves.

Sweep Speed:Allows adjustment of door speed from the door's full open position down to approximately 10 Degree from the closed position.

*Latch Speed:*Allows adjustment of door speed from approximately 10 Degree down to the door's fully closed position.

*Backcheck:*Provides control of the door in the opening cycle, beginning at approximately 75 Degree of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

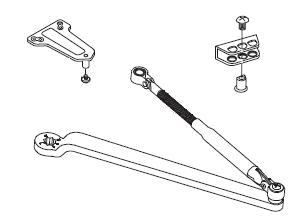

Tri-Style**packaging**(regular arm, top jamb and parallel arm mounting)

Molded plastic cover

All standard arm applications allow doors to swing 180 degree, conditions permitting

Full-size template

10-year limited warranty

**Aluminum Alloy Housing

**Closer bodies are constructed of a specialaluminum alloy, carefully selected toaccommodate interactive steelcomponents and operating conditions.

**Rack & Pinion Operation

**Provides a smooth constant control of thedoor through its full opening and closingcycle. 180 Degree door swing can be achievedwhen door, frame, hardware and armfunction do not interfere.

**Standard Molded Covers

**Molded of high-impact U.L. listed material. These covers are non-handed for allapplications.

1-1/4" (32mm) diameter piston

5/8" (16mm) diameter pinion journals

2-1/8" (54mm) projection (standard covers)

*Compliance Standards *

Series 3301 and 3501 door closers are designed to comply with requirements of the Americans with Disabilities Act (A.D.A.) and ANSI standard A117.1. All series 3300/3500, 3301/3501 are ANSI/BHMA Grade 1 certified.

All Yale series 3300/3500, 3301/3501 closers with non-hold open arms are listed by Underwriters Laboratories for labeled fire doors. This includes compliance to UL10C and UBC-72 (1997) for 3-hour assemblies. The product is manufactured in an ISO 9001 facility. These closers are also listed with the New York City Materials and Equipment Acceptance Division.
