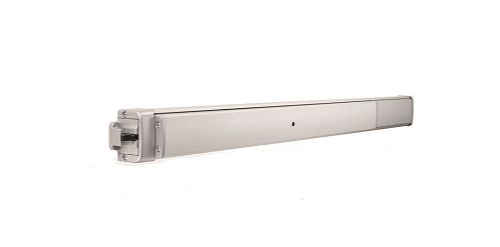

Adams Rite EX88 Rim Exit Device

Adams Rite EX88  EX Series Rim Exit Device, For Narrow Stile Aluminum Applications

**Function:

**When the door closes, the bolt guard and interlocking bolt close around the strike. The deadlocking slide springs over, which interlocks the bolt to the strike. When the active pushbar is depressed, the deadlocking slide moves back, which allows the door to open by unlocking from the strike. This unique interlocking bolt design provides unique strength and solid security, and prevents jamb spreading. Exit device capable of opening under 20 lbs preload. Suitable for use on single doors, or with mullion on pairs of doors. Suited for high, medium and low traffic areas on aluminum, hollow metal and wood applications.

Features:

Materials:Active pushbar and back bar made of extruded aluminum. Matching metal angled end caps.

Handing:Device is non-handed.

Door Thickness: -Suitable for use with all door thickness. -May be used with trim on 1-3/4" thick doors, up to 2-1/4" door thickness. -When cylinders are required, select rim cylinder length based upon door thickness.

Stile Width:Minimum 2" stile. Fits ultra-narrow, narrow, medium and wide stile aluminum doors.

Projection:2-1/2" when fully projected,1-3/4" when dogged.

Dogging:Standard dogging with 3/16" hex key.

Fasteners:Device mounted using standard self tapping screws. Hardware is not visible from back when installed. Adhesive templates for mounting included.

End Caps:Mounting end cap with 1/4"overlap for cut coverage.

Universal Hardware Kit:Hardware kit is suitable for aluminum, hollow metal, and wood door applications.

Strike:Strike made of hardened steel. Standard strike suitable for centering doors in 4" jamb. Strike plate adjusts 1/4" horizontally.

Cylinders:Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.Available separately.Cylinders with MS cams can be readily obtained from most cylinder manufacturers.

Trim:Compatible with Adams Rite 3080 Series Entry Trim and 3090 Series Entry Trim.

Noise Reduction: -Impact bumpers to reduce noise from the initial device activation. -Return control to dampen the sound and control the device returning to its resting state. -Horizontal and vertical guides decrease the scraping sound of the active push bar on the static back bar.

Shipping Weight:10 lbs [4.54 kg]

Options: -Pushbar and back bar available in choice of 313 Dark bronze anodized, 335 Black anodized, 628 Clear anodized. Metallic end caps finished to match exit device.

-Monitor: Dual signal switch (Options are field installable or factory installed)

Certifications:UL 305 Panic Hardware ANSI/BHMA A156.3-2014 Grade 1
