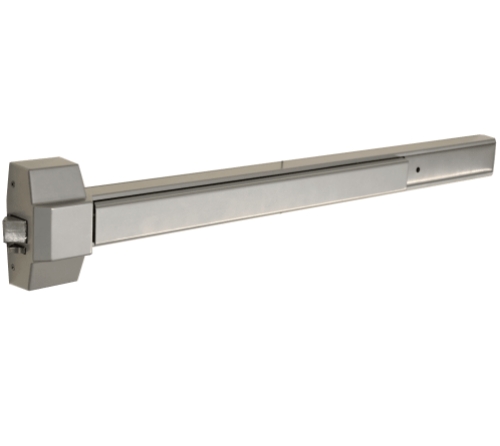

Arrow PEC910 36 Rim Exit Device, Permanent End Cap, 36"

Product Details

Arrow PEC910 36 Rim Exit Device, Permanent End Cap, 36"

Features:

Chassis:Stamped steel materials.

Chassis cover:Cast zinc, seamless one piece design.

 End Cap:Patented permanent End Cap (U.S. Pat No. 9,021,745 B2).

Door Types:Fits 1-3/4" (44.5 mm) doors standard.

Door Width:For 31" to 36" door widths.

Stile:4-1/2" (144.30mm) minimum.

Mounting:Supplied with wood and machine screws.

Handing:Reversible.

Dogging:Hex-type hold down.

Latchbolt:Stainless steel.

Rail Assembly:Powder Coated Steel, stainless steel optional.

Strike:ES90 Strike.

Warranty: Ten year warranty.

Trims:Works will all Arrow S1150 and S1250 trims.

Finishes:AL Aluminum (sprayed finish),US32D Satin Stainless Steel, BRZ Dark Bronze (sprayed finish).

Certification ANSI/BHMA A156.3, Grade 1. Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard. All exit devices comply with life safety code NFPA 101.

Arrow PEC910 36 Rim Exit Device, Permanent End Cap, 36"

SKU: PEC910

In Stock

Finish *

AL ~ Aluminum Painted
AL ~ Aluminum Painted
BRZ - Dark Bronze Painted
BRZ - Dark Bronze Painted
32D - Satin Stainless - Steel [+$38.72]
32D - Satin Stainless - Steel [+$38.72]

$193.89

$393.00

You saved $199.11

About this item

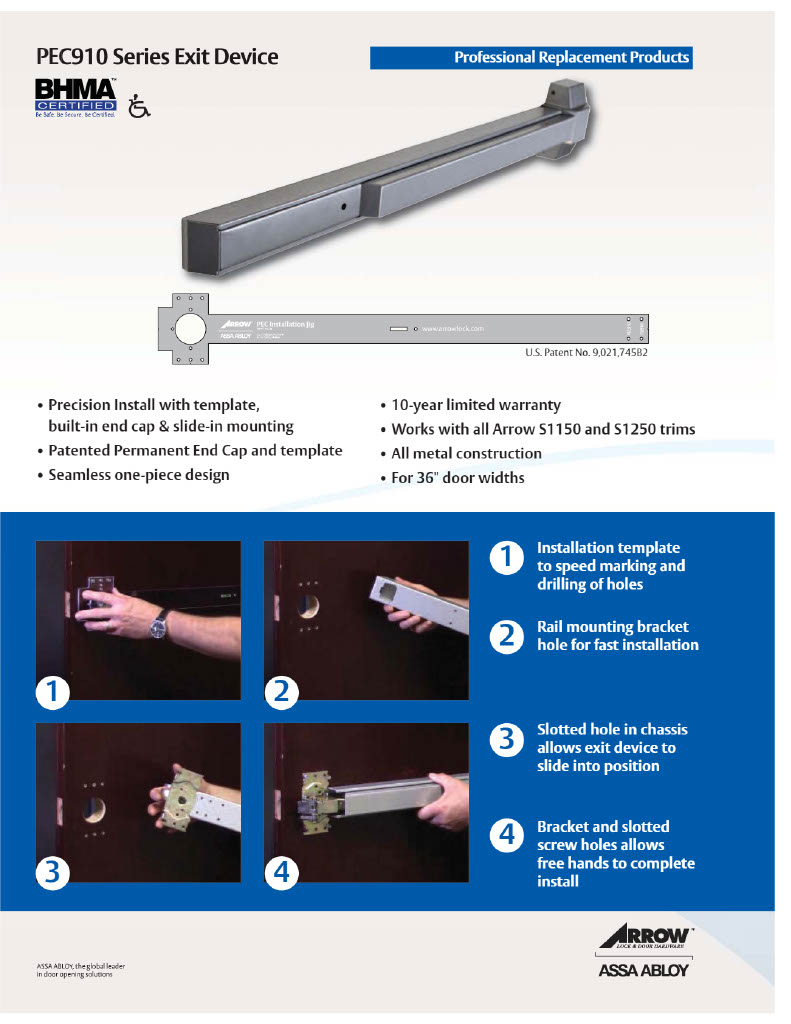

The Arrow Patented Permanent End Cap Exit Device is designed for quick installation. The PEC910 is BHMA Grade 1 Certified and offers a precision installation using the install template, built-in end cap and slide mounting.

Resources

No resources added to this product.

Arrow PEC910 36 Rim Exit Device, Permanent End Cap, 36"

Features:

Chassis:Stamped steel materials.

Chassis cover:Cast zinc, seamless one piece design.

 End Cap:Patented permanent End Cap (U.S. Pat No. 9,021,745 B2).

Door Types:Fits 1-3/4" (44.5 mm) doors standard.

Door Width:For 31" to 36" door widths.

Stile:4-1/2" (144.30mm) minimum.

Mounting:Supplied with wood and machine screws.

Handing:Reversible.

Dogging:Hex-type hold down.

Latchbolt:Stainless steel.

Rail Assembly:Powder Coated Steel, stainless steel optional.

Strike:ES90 Strike.

Warranty: Ten year warranty.

Trims:Works will all Arrow S1150 and S1250 trims.

Finishes:AL Aluminum (sprayed finish),US32D Satin Stainless Steel, BRZ Dark Bronze (sprayed finish).

Certification ANSI/BHMA A156.3, Grade 1. Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard. All exit devices comply with life safety code NFPA 101.
