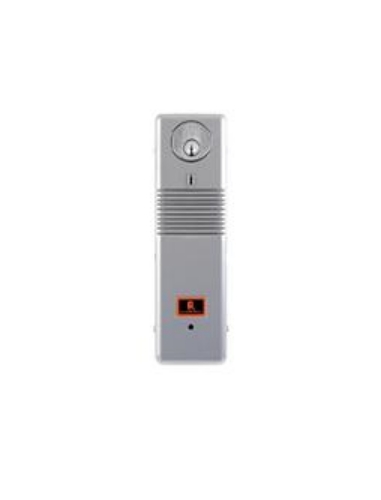

Alarm Lock PG21 Exit Door Alarm

Two selectable arming modes1.

Always armed modewhen key is turned counter clockwise to the disarmposition, the key cannot be removed. To remove key, turn back to arm mode, thuskeeping unit armed always.2.

Standard arming modewhen key is inserted turning counter clockwise willdisarm and key can be removed. Turning key clockwise will arm and key can beremoved.

Max-Flex Terminals, allowing for any or all of the following:

Continuous power with the addition of an external power supply

Multiple door monitoring permitted with built-in external reed switches

Status Indicator The LED will indicate RED when armed.

Entry Delay Time Options include 15 seconds, 1 minute 15 seconds &3 minutes 15 seconds

Sleek model design key-activated door alarm for use on standard size and narrow stiledoors

Unauthorized use of door causes alarm to sound and activates LED indicator

Options include continuous alarm, minute shutdown with auto reset and exit/entry delay

Uses standard mortise cylinder (not included)

Tamper switch supervised

For exterior key control, optional RIM cylinder may be used

Metallic silver or duronodic finish

Relay optionOptional Strobe unit  PG21MSS/PG21MBS units include a highly visible amberstrobe will flash when unit goes into alarm

Power: uses9v battery(supplied).

Alarm: Dual piezo siren measured at 95db.

Cylinder: Accepts most 1-1/4"mortise cylinder used for interior activation (not supplied) and standard size rim cylinder used for exterior activation (not supplied).

Installation: Surface mounted for single or double doors.

Cover: Die cast metal.

Model: PG21MS, PG21MB
