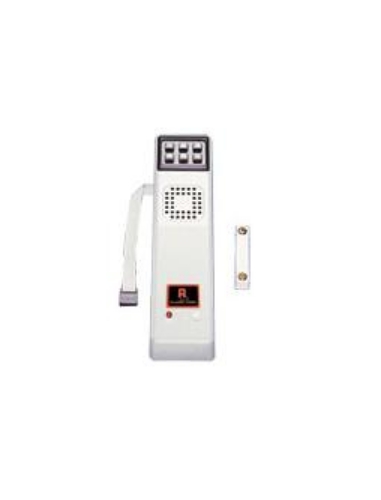

Alarm Lock PG30 Keypad controlled door alarm

Model PG30:Keypad-controlled narrow stile door alarm

Digital codes for master, management and passage (used for auto-arming)

3 security levels for: a) high security b) unattended applications c) flexible control for delivery doors, etc.

Audible low battery warning

3 Programmable 95db siren styles: sweep, pulsed, and steady

Logo key is dual function test button

PGKPD Accessory:

For optional use with the PG30, this low-profile, brushed aluminum finished accessory provides all functions of the PG30 from the outside of the door. (Available in metallic silver only.)

Max-Flex Terminals, allowing for any or all of the following:

Continuous power with the addition of an external power supply

Multiple door monitoring permitted with built-in external reed switches

Status Indicator The LED will indicate RED when armed.

Entry Delay Time Options include 15 seconds, 1 minute 15 seconds &3 minutes 15 seconds

Unauthorized use of door causes alarm to sound and activates LED indicator

Options include continuous alarm, minute shutdown with auto reset and exit/entry delay

Tamper switch supervised

Metallic silver or duronodic finish

Relay option

Power: uses9v battery(supplied).

Alarm: Dual piezo siren measured at 95db.

Installation: Surface mounted for single or double doors.

Cover: Die cast metal.

Finish: Available in metalic silver and metalicbronze.

No cylinders required. All exit,entry and security levels programmedthrough keypad. 3 security levels, master,management and passage. Use 9v battery.

Model: PG30MS, PG30MB
