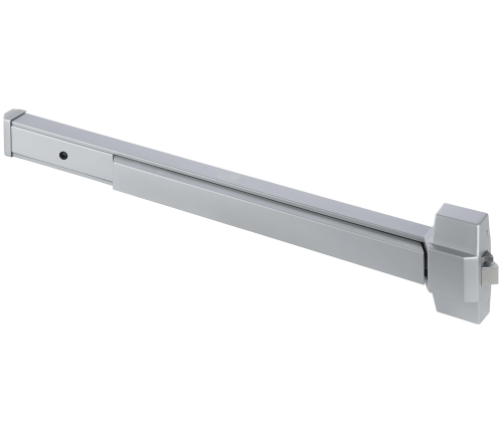

Arrow ED910 Rim Exit Device

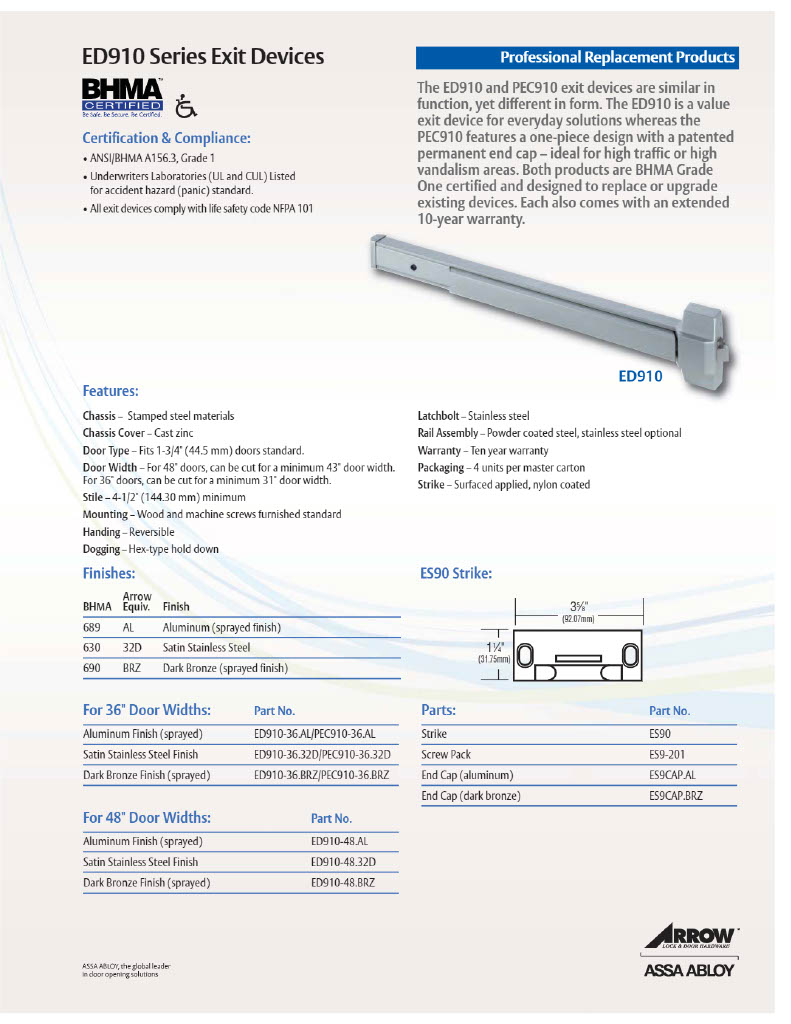

Arrow ED910 Rim Exit Device * *Features:

Chassis:Stamped steel materials.

Chassis cover:Cast zinc.

Door Types:Fits 1-3/4" (44.5 mm) doors standard.

Door Width:For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width.

Stile:4-1/2" (144.30mm) minimum.

Mounting:Supplied with wood and machine screws.

Handing:Reversible.

Dogging:Hex-type hold down.

Latchbolt:Stainless steel.

Rail Assembly:Powder Coated Steel, stainless steel optional.

Strike:ES90 Strike.

Warranty:10 year warranty.

Finishes:AL Aluminum (sprayed finish),US32D Satin Stainless Steel, 613E Dark Bronze Equivalent.

Certification: ANSI/BHMA A156.3, Grade 1. Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard. All exit devices comply with life safety code NFPA 101.

ED910, Arrow ED910, ED910 Arrow, ED91036, ED91048, LBZ, BRZ, AL
