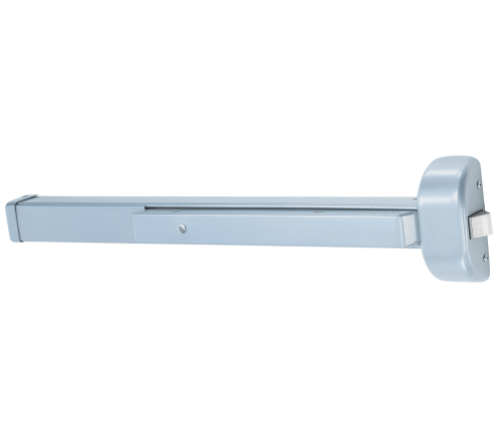

Arrow S1250 Rim Exit Device

Arrow S1250 Rim Exit Device

Features:

Chassis & Cover:Non-ferrous alloy.

End caps:Metal.

Doors: - 1-3/4" (44.45 mm) thick. - hollow metal. - 4-1/2" (114.3 mm) minimum stile.

Handling:Non-handed.

Dogging:Allen-type key standard, cylinder available.

Top/Bottom Bolts/Latchbolt:3/4" (19.05 mm) throw, stainless steel.

Throughbolts:Order separately.

Rail Assembly:Steel.

Rail Size: - E - 24" to 32" door widths. - F - 32-1/4" to 36" door widths. - G - 36-1/4" to 48" door widths.

Finishes:AL, BRZ, LBZ (sprayed finishes).

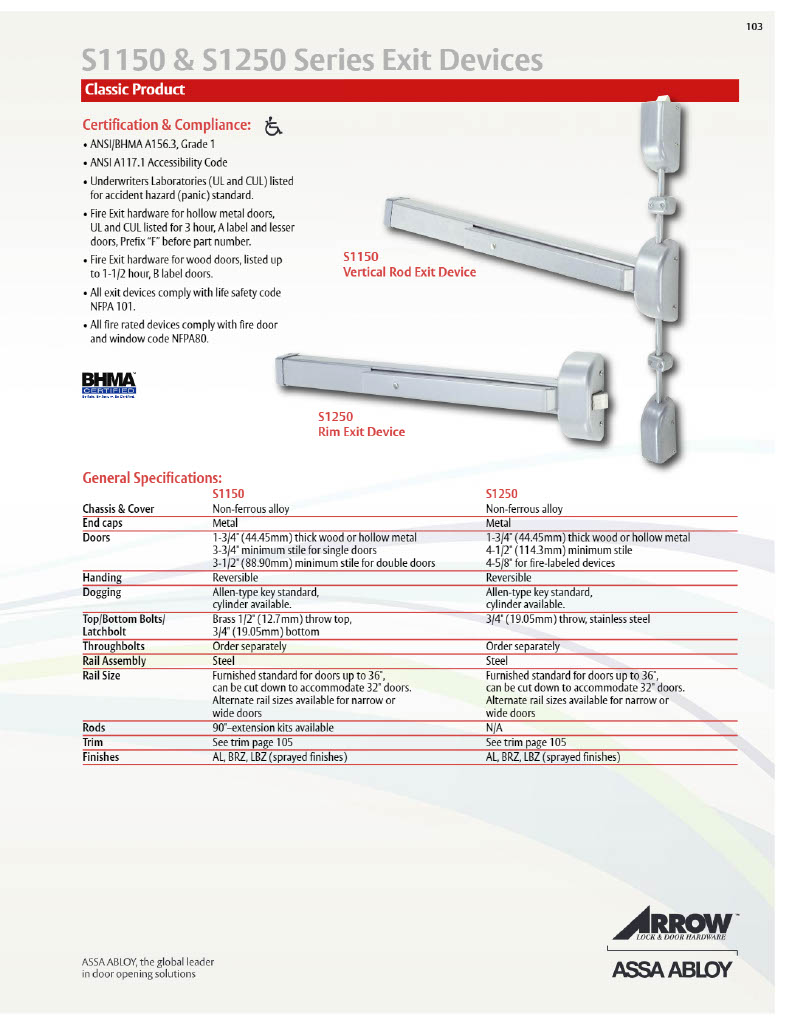

Certification: ANSI/BHMA A156.3, Grade 1 Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard. Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix "F" before part number. ANSI A117.1 Accessibility Code Fire Exit Hardware for wood doors, listed up to 1-1/2 hour, B label doors All exit devices comply with life safety code NFPA 101. All fire rated devices comply with fire door and window code NFPA80.

S1250E,S1250G, S1250F, AL, BRZ, LBZ, S1250EAL, S1250EBRZ, S1250ELBZ, S1250FAL, S1250FBRZ, S1250FLBZ, S1250GAL, S1250GBRZ, S1250GLBZ
