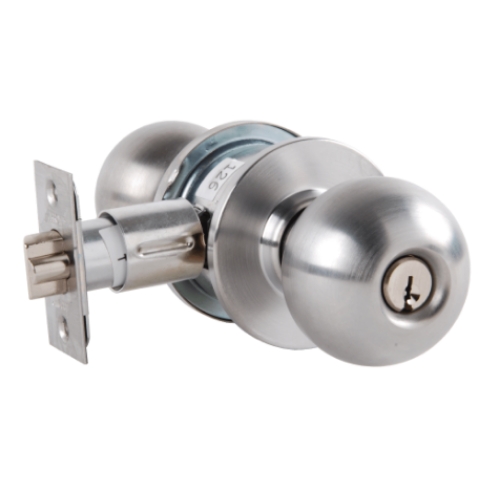

Arrow MK14 - Grade 2 Pushbutton Service Station Cylindrical Lock

Arrow MK14 - Grade 2 Service Station Knob Lock*-ANSI F92*

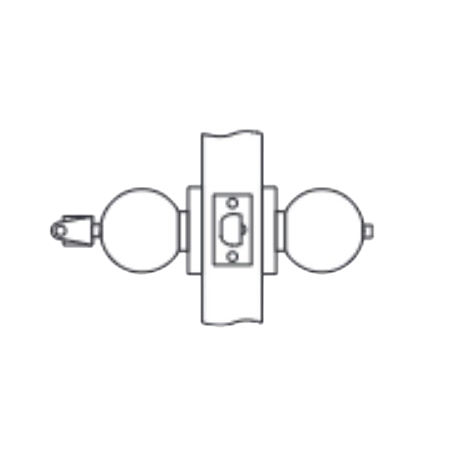

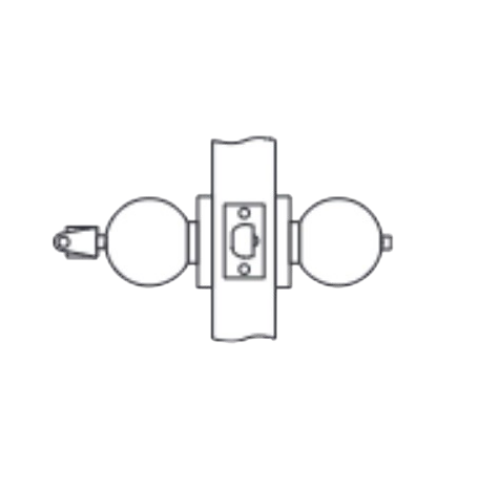

Dead locking latch bolt operated by knob from either side except when outside knob is locked by push button inside. Key outside, operating inside knob or closing door releases push button unlocking outside knob except when slotted push button is in a locked position. Inside knob always operates latch bolt.

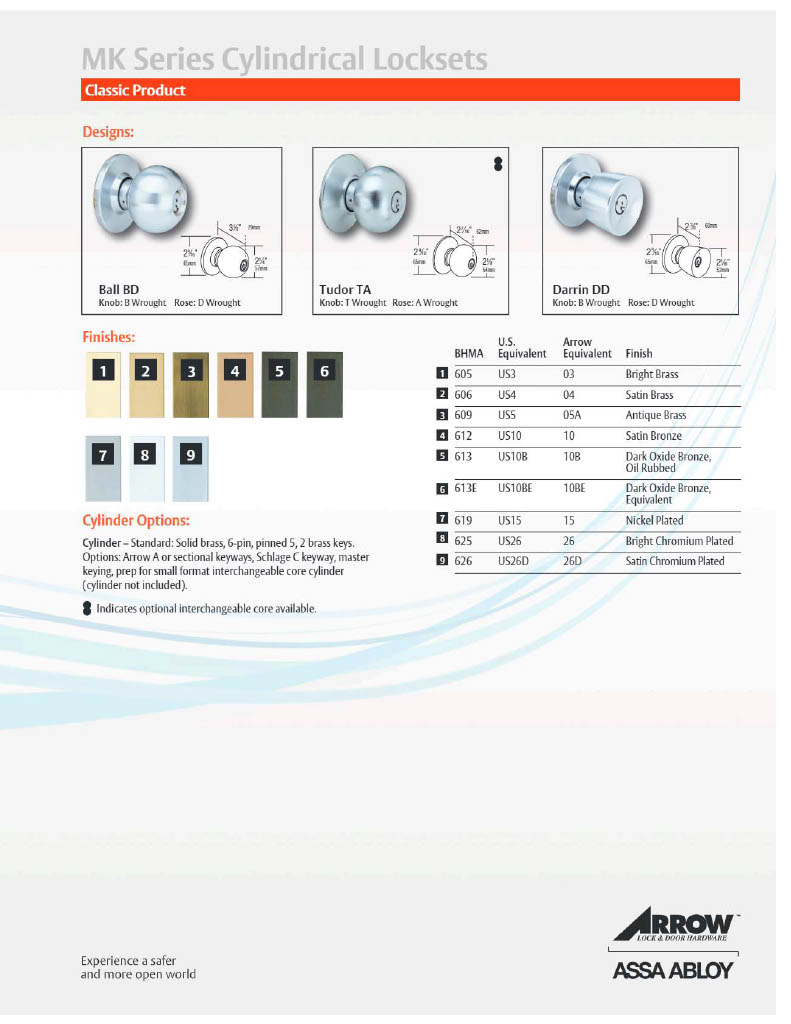

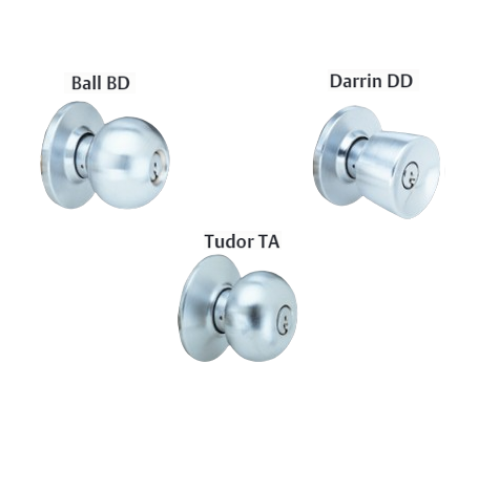

Knobs:Ball - BB BD, Tudor - TD TA, Darrin - DB DD

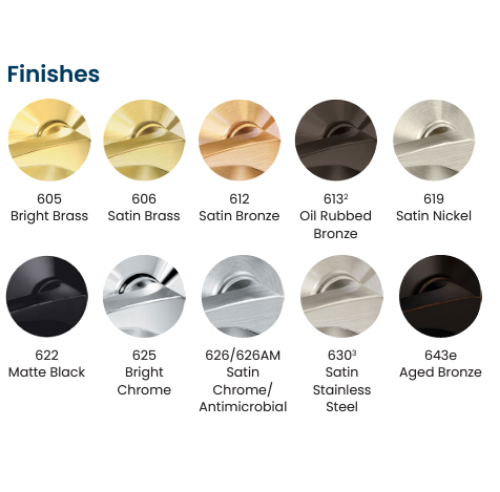

Finishes:605 US3 03 Bright Brass, 606 US4 04 Satin Brass, 609 US5 05A Antique Brass, 612 US10 10 Satin Bronze, 613 US10B 10B Dark Oxide Bronze, Oil Rubbed, 619 US15 15 Nickel Plated, 625 US26 26 Bright Chromium Plated, 626 US26D 26D Satin Chromium Plated

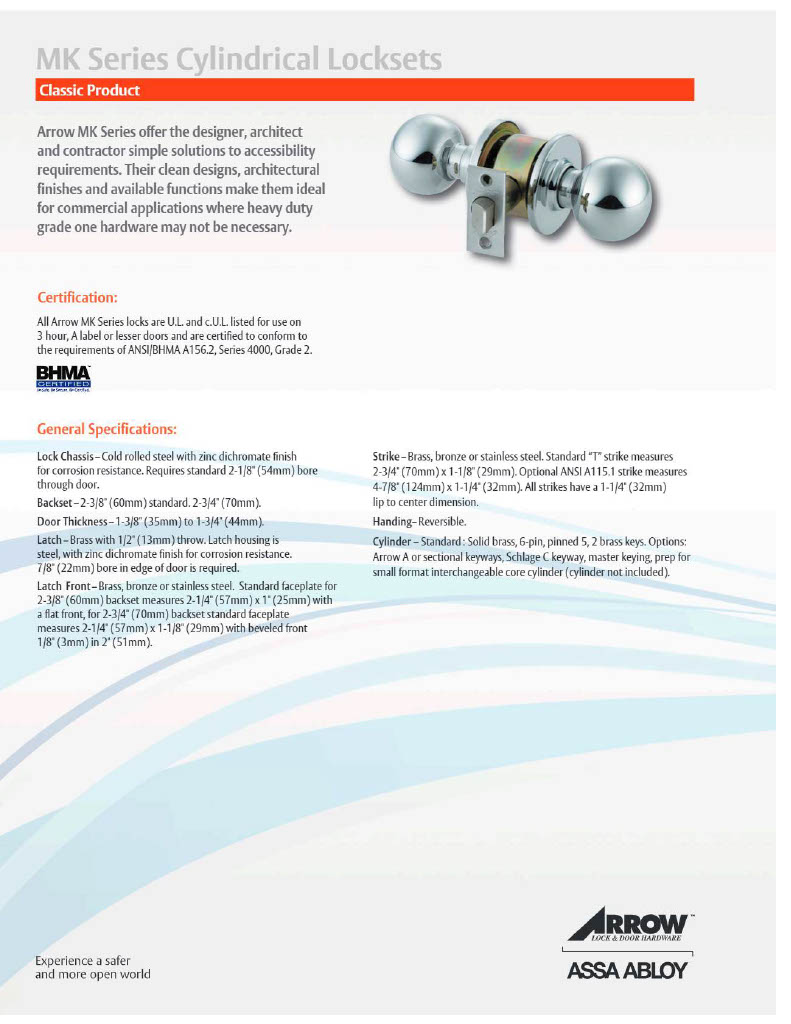

Lock ChassisCold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Requires standard 2-1/8" (53.97mm) bore through door.

Backset2-3/8" (60.32 mm)standard.2-3/4" (69.85 mm),3-3/4" (95.25 mm)and5" (127 mm)available.

Door Thickness1-3/8" (34.92 mm)to1-3/4" (44.45 mm)

LatchBrass with1/2" (12.7 mm)throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance.7/8" (22.225 mm)bore in edge of door is required.

Latch FrontBrass or bronze. Standard faceplate for2-3/8" (60.32 mm)backset measures2-1/4" (57.15 mm)x1" (25.40 mm), with a flat front, for2-3/4" (69.85 mm)standard faceplate measures2-1/4" (57.15 mm)x1-1/8" (28.57 mm), with a beveled front1/8" (3.17 mm)in2" (50.8 mm).

StrikeBrass, bronze or stainless steel. StandardTstrike measures2-3/4" (69.85 mm)x1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures4-7/8" (123.82 mm)x1-1/4" (31.75 mm). All strikes have a1-1/4" (31.75 mm)lip to center dimension.

Cylinder -Solid brass 6 pin cylinder with ArrowAkeyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturers keyways. Supplied with two 5 pin brass keys for stock.

Cylinder OptionsInterchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,Falconand other similar style cores. SuffixICto design.

HandingReversible.

Warranty- 3 year limited warranty

Model:Arrow MK14, BD BB TA TB MK14BD, MK14TA, MK14BB, MK14TB, MK14BD26D, MK14TA26D, MK14BB26D, MK14TB26D, MK14BD3, MK14TA3, MK14BB3, MK14TB3, MK14BD26, MK14TA26, MK14BB26, MK14TB26, MK14BD4, MK14TA4, MK14BB4, MK14TB4, MK14BD10, MK14TA10, MK14BB10, MK14TB10, MK14BD10B, MK14TA10B, MK14BB10B, MK14TB10B

Certification & Compliance: ANSI/BHMA A156.2, Series 4000, Grade 2 Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors. Federal Specifications FF-H-106C, Series 160
