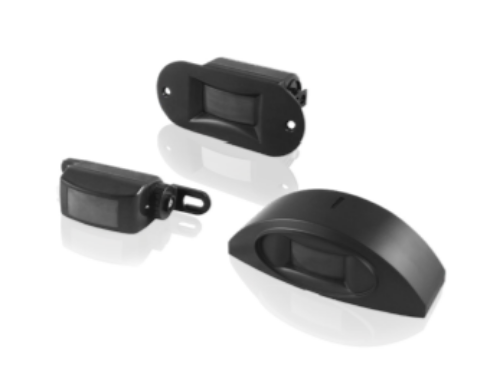

BEA 10FLYKITB, FLY KIT Passive infrared sensor, field adjustable detection zone, 0 to 180 degree mounting angle, 12 to 24 V AC/DC

Product Details

BEA 10FLYKITB, FLY KIT Passive infrared sensor, field adjustable detection zone, 0 to 180 degree mounting angle, 12 to 24 V AC/DC

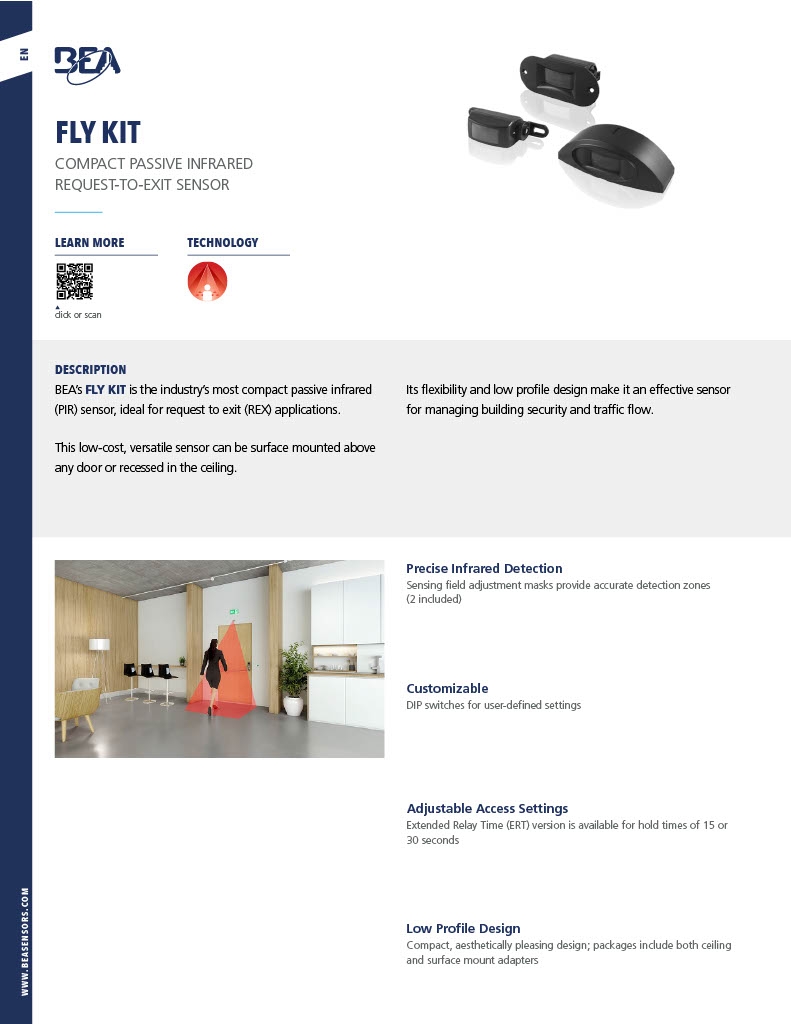

Description:

BEA's FLY KIT is the industry's most compact passive infrared (PIR) sensor, ideal for request to exit (REX) applications.

This low-cost, versatile sensor can be surface mounted above any door or recessed in the ceiling. Its flexibility and low profile design make it an effective sensor for managing building security and traffic flow.

Features:

Precise infrared detection: Sensing field adjustment masks provide accurate detection zones (2 included).

Adjustable access settings: Extended Relay Time (ERT) version is available for hold times of 15 or 30 seconds.

Customizable: DIP switches for user-defined settings.

Low profile design:. Compact, aesthetically pleasing design; packages include both ceiling and surface mount adapters.

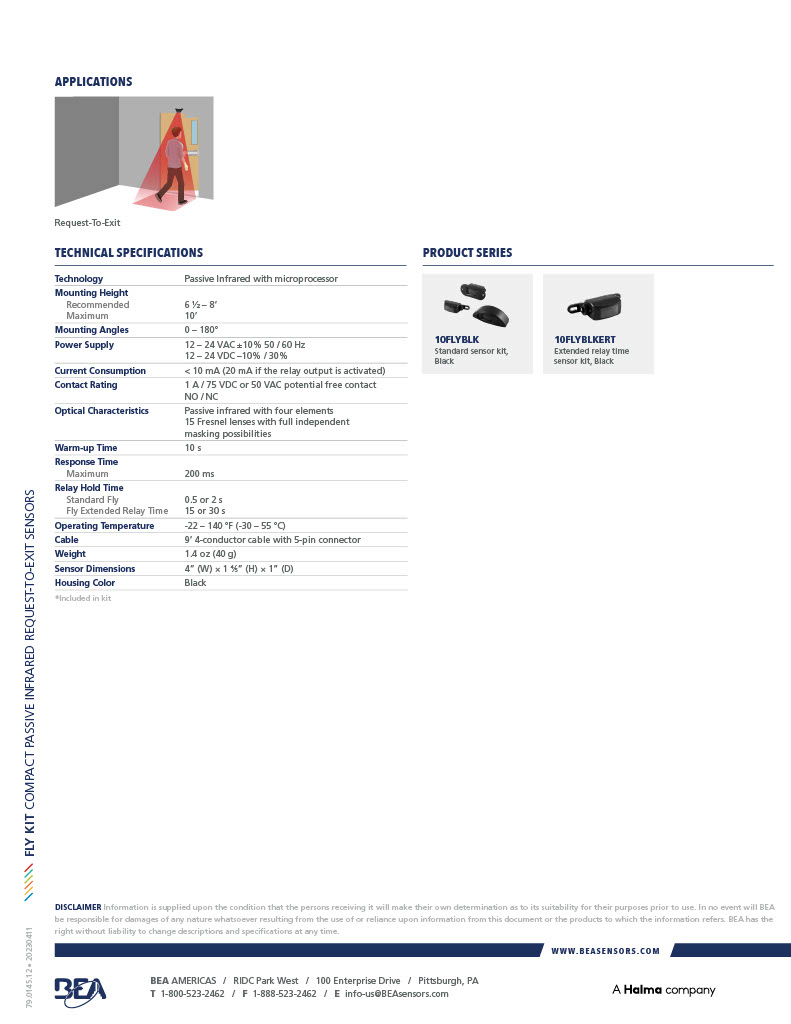

TECHNICAL SPECIFICATIONS:

Technology:Passive Infrared with microprocessor.

Mounting Height:   Recommended: 6 1/2 - 8'.   Maximum: 10'.

Mounting Angles:0 - 180 deg.

Power Supply:   12 - 24 VAC 10% 50 / 60 Hz.   12 - 24 VDC -10% / 30%.

Current Consumption:< 10 mA (20 mA if the relay output is activated).   Contact Rating:1 A / 75 VDC or 50 VAC potential free contact NO / NC.

Optical Characteristics:   Passive infrared with four elements.   15 Fresnel lenses with full independent masking possibilities.

Warm-up Time:10 s.

Response Time - Maximum:200 ms.

Relay Hold Time:   Standard Fly: 0.5 or 2 s.   Fly Extended Relay Time: 15 or 30 s.

Operating Temperature:-22 - 140 F (-30 - 55 C).

Cable:9' 4-conductor cable with 5-pin connector.

Weight:1.4 oz (40 g).

Sensor Dimensions:4" (W) x 1 4⁄5" (H) x 1" (D).

Housing Color:Black.

BEAFLYKIT, 10FLYKITB , BEA REQUEST-TO-EXIT SENSOR, 10FLYKITB , FLYKITB , 10FLYKITB , BEA 10FLYKITB , BEA10FLYKITB , 10FLYKITBBEA , 10FLYKITB BEA

BEA 10FLYKITB, FLY KIT Passive infrared sensor, field adjustable detection zone, 0 to 180 degree mounting angle, 12 to 24 V AC/DC

SKU: 10FLYKITB

In Stock

$192.77

$132.58

You saved ($60.19)
