Von Duprin PS914-4RL Base Power Supply 4A @ 12/24 VDC Field Selectable, 4 Relay Board Integrated Logic

Von Duprin PS914 Base Power Supply 4A  @ 12/24 VDC Field Selectable, 4 Relay Board Integrated - (PS873 Replacement)

Model - PS914-4RL: 4 relay distribution board with logic is field configurable for time delay function, auto operator, security interlock

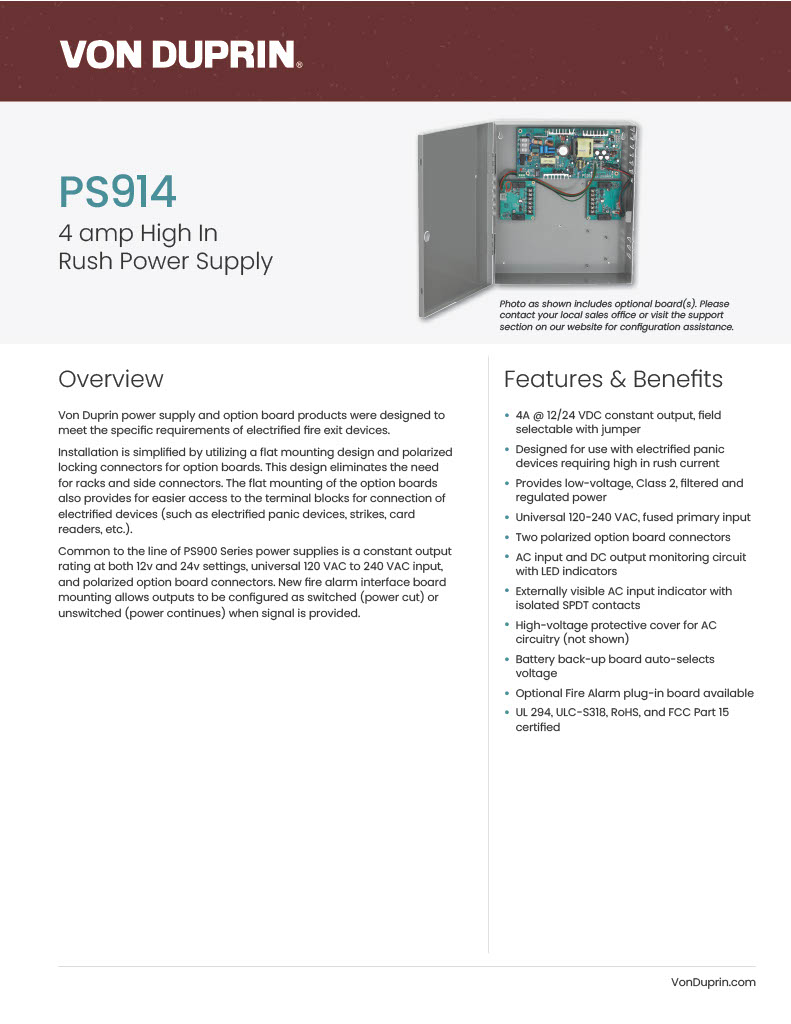

  Von Duprin power supply and option board products were designed to meet the specific requirements of electrified fire exit devices.

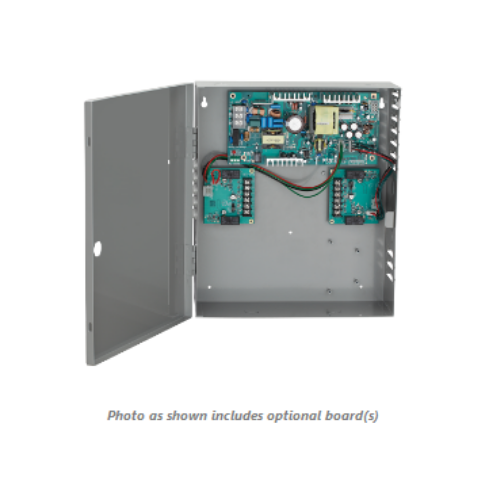

Installation is simplified by utilizing a flat mounting design and polarized locking connectors for option boards. This design eliminates the need for racks and side connectors. The flat mounting of the option boards also provides for easier access to the terminal blocks for connection of electrified devices (such as electrified panic devices, strikes, card readers, etc.).

Common to the line of PS900 Series power supplies is a constant output rating at both 12v and 24v settings, universal 120 VAC to 240 VAC input, and polarized option board connectors. New fire alarm interface board mounting allows outputs to be configured as switched (power cut) or unswitched (power continues) when signal is provided.

Features and benefits:

4A @ 12/24 VDC constant output, field selectable with jumper Designed for use with electrified panic devices requiring high in rush currentProvides low-voltage, Class 2, filtered and regulated powerUniversal 120-240 VAC, fused primary inputTwo polarized option board connectorsAC input and DC output monitoring circuit with LED indicatorsExternally visible AC input indicator with isolated SPDT contactsHigh-voltage protective cover for AC circuitry (not shown) Battery back-up board auto-selects voltageOptional Fire Alarm plug-in board availableUL 294, ULC-S318, RoHS, and FCC Part 15 certified

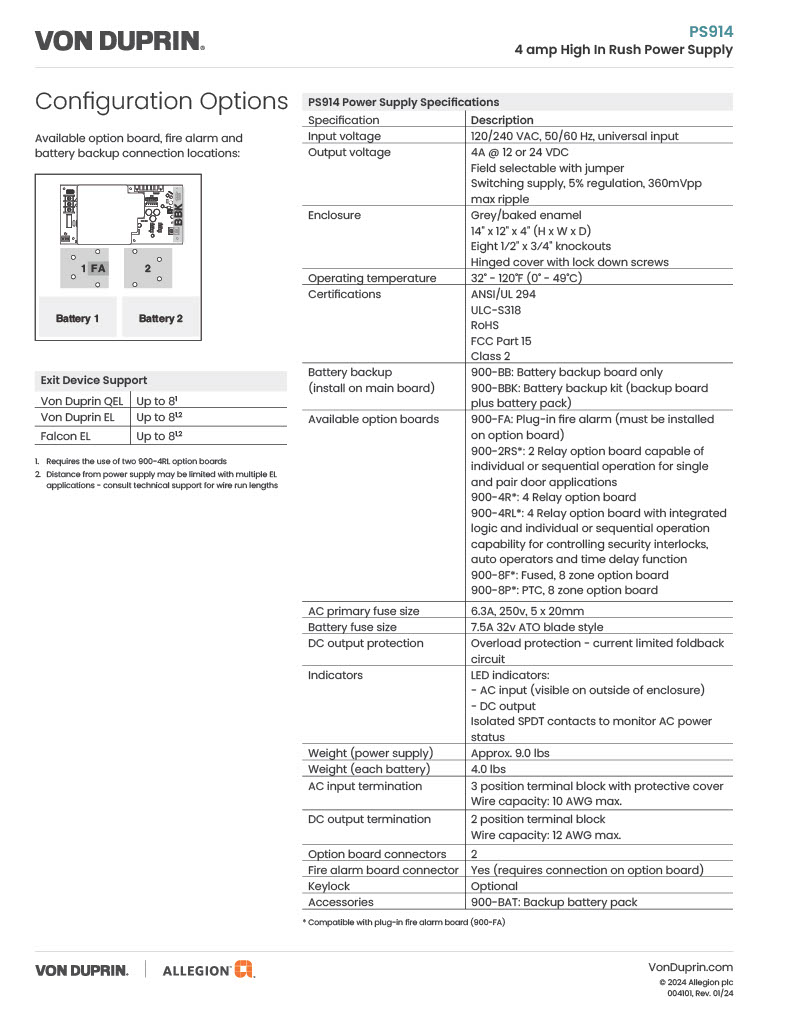

Specification Input voltage: 120/240 VAC, 50/60 Hz, universal input Output voltage: 4A @ 12 or 24 VDC Field selectable with jumper Switching supply, 5% regulation, 360mVpp max ripple Enclosure: Grey/baked enamel 14" x 12" x 4" (H x W x D) Eight 1 ⁄2" x 3⁄4" knockouts Hinged cover with lock down screws Operating temperature: 32 - 120 F (0 - 49 C) Certifications: ANSI/UL 294 ULC-S318 RoHS FCC Part 15 Class 2 Battery backup: (install on main board) 900-BB: Battery backup board only 900-BBK: Battery backup kit (backup board plus battery pack) Available option boards: 900-FA: Plug-in fire alarm (must be installed on option board) 900-2RS: 2 Relay option board capable of individual or sequential operation for single and pair door applications 900-4R: 4 Relay option board 900-4RL: 4 Relay option board with integrated logic and individual or sequential operation capability for controlling security interlocks, auto operators and time delay function 900-8F: Fused, 8 zone option board 900-8P*: PTC, 8 zone option board AC primary fuse size: 6.3A, 250v, 5 x 20mm Battery fuse size: 7.5A 32v ATO blade style DC output protection: Overload protection - current limited foldback circuit Indicators: LED indicators: - AC input (visible on outside of enclosure) - DC output Isolated SPDT contacts to monitor AC power status Weight (power supply): Approx. 9.0 lbs Weight (each battery): 4.0 lbs AC input termination: 3 position terminal block with protective cover Wire capacity: 10 AWG max. DC output termination: 2 position terminal block Wire capacity: 12 AWG max. Option board connectors: 2 Fire alarm board connector: Yes (requires connection on option board) Keylock: Optional, specifiries:  900-BAT Backup battery pack

• Compatible with plug-in fire alarm board (900-FA)
