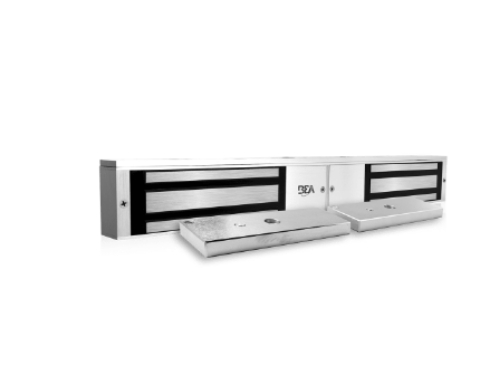

BEA 10MAGLOCK5ULDS Double Electromagnetic Surface Mount Lock - LED Status, Lock Status Sensor / Door Status Sensor - 1200 lb / Double

10MAGLOCK5ULDS

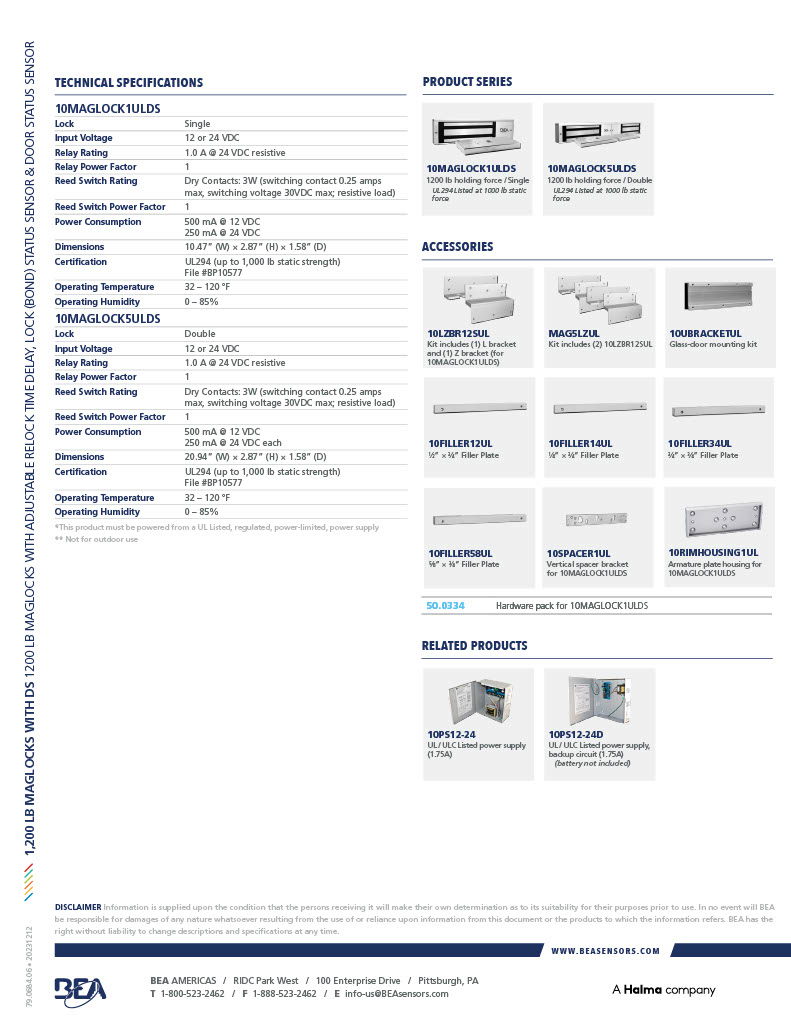

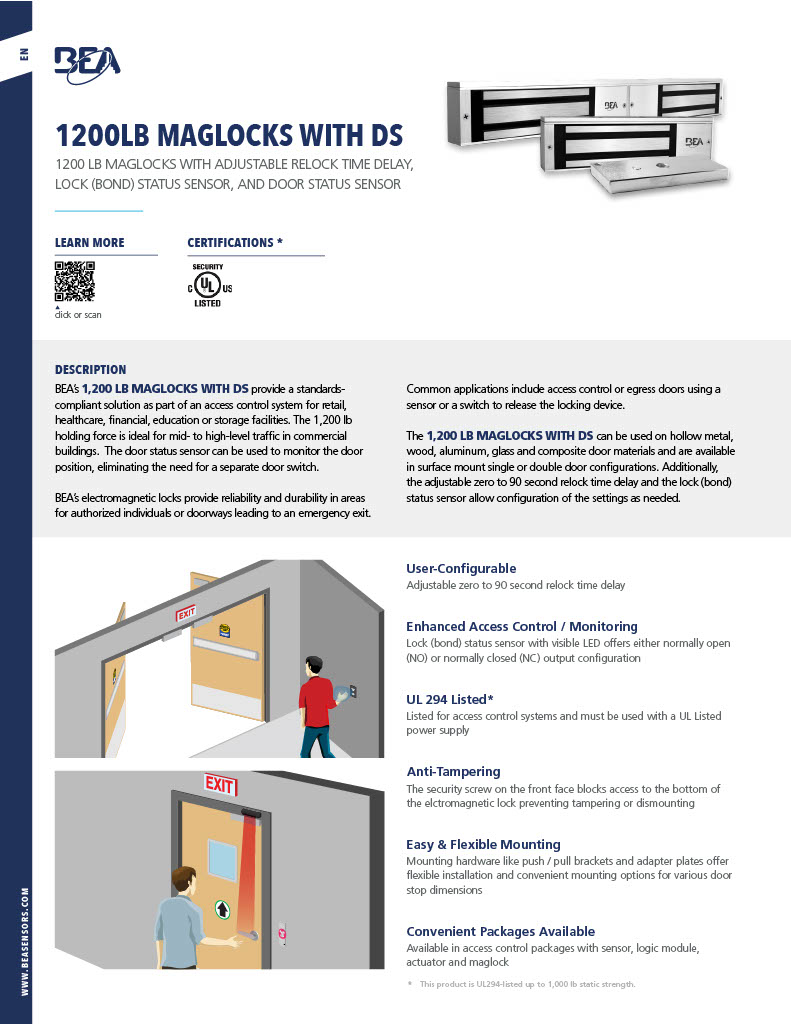

1-page1-maglock-ds-1200
1-page2-maglockds-1200lb
10MAGLOCK5ULDS
1-page1-maglock-ds-1200
1-page2-maglockds-1200lb
naxt
prev

Product Details

BEA 10MAGLOCK5ULDS Double Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor / Door Status Sensor, 0 to 90 S Hold Open Timer (Relock), (1) Bond Status Relay, 12 / 24 VDC (UL Listed Power Supply Required), 1200 Lb.

DESCRIPTION BEA's UL LISTED MAGLOCKS provide a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL LISTED MAGLOCKS are available in surface mount single or double door configurations, with holding force of 600 or 1,200 lbs. These locks include adjustable zero to 90 second relock time delay and a lock status sensor with visible LED.

Customizable: Adjustable zero to 90 second relock time delay.

Enhanced Reliability: Lock status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configurations.

UL Listed: Input voltage of 12 / 24 VDC, must be used with UL Listed power supply.

Mounting Accessories: Variety of mounting hardware available. TECHNICAL SPECIFICATIONS:

10MAGLOCK6ULDS

Door Configuration:Double, surface mount.

Holding Force:600 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply required).

Power Consumption:  505 2 mA @ 12 VDC.  260 2 mA @ 24 VDC.

Dimensions:20.94" (W) x 2.87" (H) x 1.58" (D).

Material:Anodized Aluminum housing.

Relock Time Delay:0 - 90 s.

Sensor: Lock Status Sensor (NO or NC outputs).

Output Relay:Up to 1 A @ 24 VDC.

BEA MAGLOCK, BEA MAGLOCKS, BEA 10MAGLOCK5ULDS, 10MAGLOCK5ULDS, 10MAGLOCK5ULDS  BEA, BEA10MAGLOCK5ULDS, 10MAGLOCK5ULDS, 10MAGLOCK5ULDS BEA, BEA 10MAGLOCK5ULDS, 10MAGLOCK5ULDS, MAGLOCK5ULDS  BEA, BEAMAGLOCK5ULDS, MAGLOCK5ULDS, MAGLOCK5ULDS BEA, BEA 10MAGLOCK5ULDS, 10MAGLOCK5ULDS, 10MAGLOCK5ULDS  BEA, BEA10MAGLOCK5ULDS, 10MAGLOCK5ULDS,  10MAGLOCK5ULDS BEA, BEA 10MAGLOCK5ULDS, 10MAGLOCK5ULDS, MAGLOCK5ULDS BEA, MAGLOCK5ULDSBEA, MAGLOCK5ULDS,  BEA MAGLOCK5ULDS,

BEA 10MAGLOCK5ULDS Double Electromagnetic Surface Mount Lock - LED Status, Lock Status Sensor / Door Status Sensor - 1200 lb / Double

SKU: 10MAGLOCK5ULDS

In Stock
Picture for manufacturer BEA
icon Chat

$395.53

About this item

UL LISTED MAGLOCKS MAGLOCKS WITH ADJUSTABLE RELOCK TIME DELAY & LOCK STATUS SENSOR, DOOR STATUS SENSOR

Resources

BEA 10MAGLOCK5ULDS Double Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor / Door Status Sensor, 0 to 90 S Hold Open Timer (Relock), (1) Bond Status Relay, 12 / 24 VDC (UL Listed Power Supply Required), 1200 Lb.

DESCRIPTION BEA's UL LISTED MAGLOCKS provide a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL LISTED MAGLOCKS are available in surface mount single or double door configurations, with holding force of 600 or 1,200 lbs. These locks include adjustable zero to 90 second relock time delay and a lock status sensor with visible LED.

Customizable: Adjustable zero to 90 second relock time delay.

Enhanced Reliability: Lock status sensor with visible LED offers either normally open (NO) or normally closed (NC) output configurations.

UL Listed: Input voltage of 12 / 24 VDC, must be used with UL Listed power supply.

Mounting Accessories: Variety of mounting hardware available. TECHNICAL SPECIFICATIONS:

10MAGLOCK6ULDS

Door Configuration:Double, surface mount.

Holding Force:600 lb.

Input Voltage:12 / 24 VDC (UL Listed power supply required).

Power Consumption:  505 2 mA @ 12 VDC.  260 2 mA @ 24 VDC.

Dimensions:20.94" (W) x 2.87" (H) x 1.58" (D).

Material:Anodized Aluminum housing.

Relock Time Delay:0 - 90 s.

Sensor: Lock Status Sensor (NO or NC outputs).

Output Relay:Up to 1 A @ 24 VDC.

BEA MAGLOCK, BEA MAGLOCKS, BEA 10MAGLOCK5ULDS, 10MAGLOCK5ULDS, 10MAGLOCK5ULDS  BEA, BEA10MAGLOCK5ULDS, 10MAGLOCK5ULDS, 10MAGLOCK5ULDS BEA, BEA 10MAGLOCK5ULDS, 10MAGLOCK5ULDS, MAGLOCK5ULDS  BEA, BEAMAGLOCK5ULDS, MAGLOCK5ULDS, MAGLOCK5ULDS BEA, BEA 10MAGLOCK5ULDS, 10MAGLOCK5ULDS, 10MAGLOCK5ULDS  BEA, BEA10MAGLOCK5ULDS, 10MAGLOCK5ULDS,  10MAGLOCK5ULDS BEA, BEA 10MAGLOCK5ULDS, 10MAGLOCK5ULDS, MAGLOCK5ULDS BEA, MAGLOCK5ULDSBEA, MAGLOCK5ULDS,  BEA MAGLOCK5ULDS,

10MAGLOCK5ULDS
BEA 10MAGLOCK5ULDS Double Electromagnetic Surface Mount Lock - LED Status, Lock Status Sensor / Door Status Sensor - 1200 lb / Double

Product code: 10MAGLOCK5ULDS

In Stock

$997.76

$395.53

10MAGLOCK5ULDS
BEA 10MAGLOCK5ULDS Double Electromagnetic Surface Mount Lock - LED Status, Lock Status Sensor / Door Status Sensor - 1200 lb / Double

Product code: 10MAGLOCK5ULDS

In Stock

$997.76

$395.53
