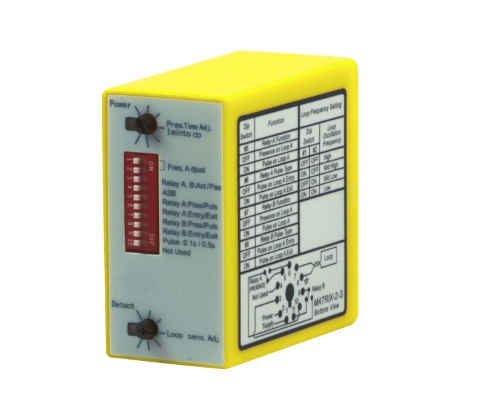

BEA 10MATRIXIIS1224 Induction loop detector, single or dual loop detector

BEA 10MATRIXIIS1224 Induction loop detector, single or dual loop detector  automatic sensitivity boost, 12 to 24 V AC/DC * *Model:10MATRIXIIS1224  12 - 24 VAC / VDC, Single loop detector.

DESCRIPTION:

BEA's MATRIX FAMILY of induction loop detectors is designed for vehicle detection application in industrial environments.

These UL 508 listed loop detectors offer a wide range of features including automatic boost sensitivity (ABS), pulse on entry and pulse on exit. The MATRIX 3 provides learn on power up, as well as an independent dual loop detection setting.

The MATRIX FAMILY includes single and dual loop detectors with operating voltages of 110 - 120 VAC or 12 - 24 VAC / VDC, depending on model.

Features:

Two loop models available: Available in single or dual loop models.

Dual output: Two relay outputs.

Vehicle detection, direction and counting: Ideal for vehicle directionality and sequencing applications.

Easy to adjust: Settings are adjusted via two ease-to-use potentiometers.

Technical Specifications:

Tuning:Automatic.

Connector:11-pin male (86CP11).

Presence Time:1 min - infinity.

Pulse Time Output:100 ms or 500 ms.

LED Indicators:   Green: Power.   Red: Loop Status 1 / Loop Status 2.

Frequency Range:20 kHz - 130 kHz.

Frequency Steps:   Single Loop: 4.   Double Loop: 2 (for each loop).

Sensitivity (ΔL/L):0.005 - 0.5%.

Reaction Time:   Single Loop: 25 ms.   Double Loop: 50 ms (each channel).

Setup Time After Configuration:2 s max by channel.

Power Supply (depending on model):   12 - 24 AC / DC  10%.   115 VAC  10%.

Power Frequency:48 - 62 Hz.

Power Consumption:< 2.5 W.

Temperature Range: -22 - 158 F (-30 - 70 C).

Protections:   Loop Insulation Transformer.   Zener Diodes.   Gas Discharge Clamping.

Inductance Range:20 - 1000 μH.

Connection:86CP11 (Standard 11-pin Round).

Relay Outputs:2 (free potential change-over contact).   Max. Contact Voltage: 230 VAC.   Max. Contact Current: 5 A (resistive).

Setup Time at Power On:   MATRIXD/S: 8 s max by channel.   MATRIXIIS: 8 s max by channel.   MATRIX-3S: 1.6 s max by channel.   MATRIX-3D: 2.2 s max by channel.

Norm Conformity:R&TTE: 1999 / 5 / EC.   EMC: 89 / 336 / EEC   EMC: 89 / 336 / EE   EMC: 2004 / 108 / EC   FCC: 47 CFR 15   IC: RSS-210 ISSUE 5   UL Listed equipment for UL 508.

Degree of Protection:IP40.

Weight:7 oz.

Dimensions:1 1/2" (W) x 3" (H) x 3" (D).
