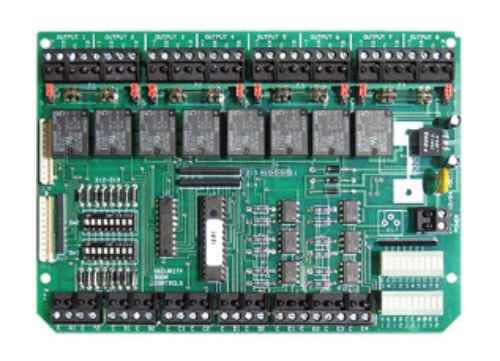

SDC UR4-8 Universal Programmable Door Controller with 4 Fused SPDT Outputs and 4 Non-fused SPDT Outputs

SDC UR4-8 Universal Programmable Door Controller *with 4 Fused SPDT Outputs and 4 Non-fused SPDT Outputs*

Features:

• Use the same controller for virtually all multi-door applications.

• Centralized wiring for all locks, access controls, monitoring contacts and peripheral equipment.

• On board logic reduces need for communicating door and lock contacts and standalone relays.

• Reduced wiring, easy troubleshooting.

PROGRAMMABLE SYSTEM MODES

System selection provides appropriate mode of operation for each input and output:

• Airlock/Interlock Mode A: All doors normally unlocked, opening any door causes all other doors to lock.

• Mantrap Mode B: All doors normally locked. When any door is unlocked all other doors are incapable of unlocking.

• 3 Mantrap Mode C: Select doors locked or unlocked. When unlocked door is opened, locked doors are incapable of unlocking. When a locked door is unlocked, normally unlocked doors lock and all other locked doors are incapable of unlocking.

• Shared Hospital/Dorm Bathroom A: Doors equipped with magnetic locks.

• Shared Hospital/Dorm Bathroom B: Doors equipped with electrified locksets.

PROGRAMMABLE STATION MODES

Each output may be individually programmed with its own mode of operation • Conventional Relay:

• Latching Relay, on/off

• Latch multi-station zones on/off or all stations on/off

• Time Delay Relay 1-60 seconds

• Dual function Latching on/off, plus 1-60 second Timed output when on

Specifications:

Input Voltage: 12 or 24VDC +/- 10%

Input Current: 130mA Max.

Relay Inputs:  8-SPST, Dry, Optically Isolated (Relay) 4-SPST, NO Dry, Optically Isolated (Auxiliary)

Outputs: 4 fused SPDT relays, 7 Amps @ 30VDC 4 non-fused SPDT relays, 7 Amps @ 30VDC

Dimensions: 7" W x 5" H x 7/8" D UR4-8
