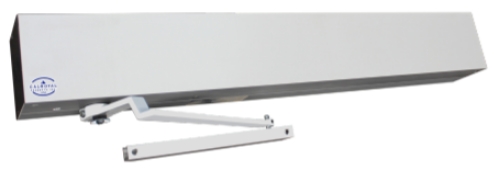

Cal Royal 8604 Automatic Low Energy Door Operator - Push Side - Reveal 0 - 4" - RH

Cal Royal 8604 Automatic Low Energy Door OperatorPush Side*Reveal 0 - 4"RHFor Right Hand Door*

Inclludes Safety Signage & Guideline Sticker

Exterior Operator with Wind Dampening and Power Close with 5 force settings feature

ADA Compliant and conforms to ANSI A156.19 / UL325 standards for door operators

Easy non-handed conversion, specify hand when ordering

Programmable Controller with easy set up & programming

Push & Go feature opens a door when pushed manually

Obstacle Detection feature for open & closing ensures the safest use possible

On Board Power Supply, 12/24 VDC 1.2A for strikes & latches

Adjustable Closing & Opening Speeds

Adjustable Closing Force

Adjustable Latching Speed & Position

Electrified Lock Input and Delay

Door Weight:700 lbs (317kg) per leaf, 48" wide

Dimensions (height & width):5.5" (140mm) H x 4.5 (115mm) D

Standard Dimensions (length):Single: 39", 45", & 51"

On Board Power Supply:On board 1.2A 12/24VDC

Consumption:100W Max

Motor rating:1/4 hp, 24VDC, 3A max

Rated operation:Continuous opening and closing cycles

Closing force:Adjustable pressure by spring tension

Operation during power failure:Low manual resistance when opened by hand. Door closing by spring.

Motor type:Low revolution, DC motor

Operating environment:Ambient temperature 18 deg ~ +50 deg. (no condensation or icing)

Ambient humidity 30% to 85%RH (no hazardous materials must be present in the atmosphere)

Finish: Aluminum (AL)  Dark Bronze (DB) Model:  Cal Royal 8604, Cal Royal 8604 RH

**
