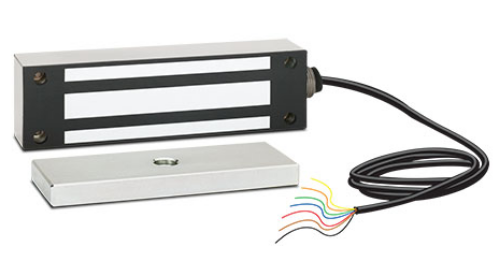

SDC 1576U Single Electromagnetic Gate Lock with magnetic bond sensor & door status sensor, Face Mount, 1200lbs

Product Details

SDC 1576U Single Electromagnetic Gate Lock with magnetic bond sensor & door status sensor, Face Mount, 12/24VDC, 1200lbs

Features:

  • 1200 lbs Holding Force

  • Stainless Steel Case

  • Epoxy filled for weather resistance

  • Threaded conduit fitting

  • Built-in voltage kickback protection

  • Low power consumption

  • Built-in bond sensor (BAS)

  • Built-in door position sensor (DPS)

  • ANSI/BHMA Grade 1 Compliant

  • BHMA Certified Holding Force

  • UL, CSFM, MEA Listed

Specifications:

  • Voltage Input: 450mA @ 12VDC; 225mA @ 24VDC

  • DPS and BAS sensors: SPDT, 250mA @ 30VDC

  • Wire Leads: 24 AWG, 3ft. long

  • Conduit Fitting: 1/2’’ Length, 3/4’’ outside thread, 1/2’’ inside thread

  • Lock: 8-11/16’’L x 2-1/2’’H x 1-5/8’’D

  • Armature: 7-3/4’’L x 2-13/32’’H x 5/8’’D

SDC 1576U Single Electromagnetic Gate Lock with magnetic bond sensor & door status sensor, Face Mount, 1200lbs

SKU: 1576U

In Stock

$377.30

$523.00

You saved $145.70

About this item

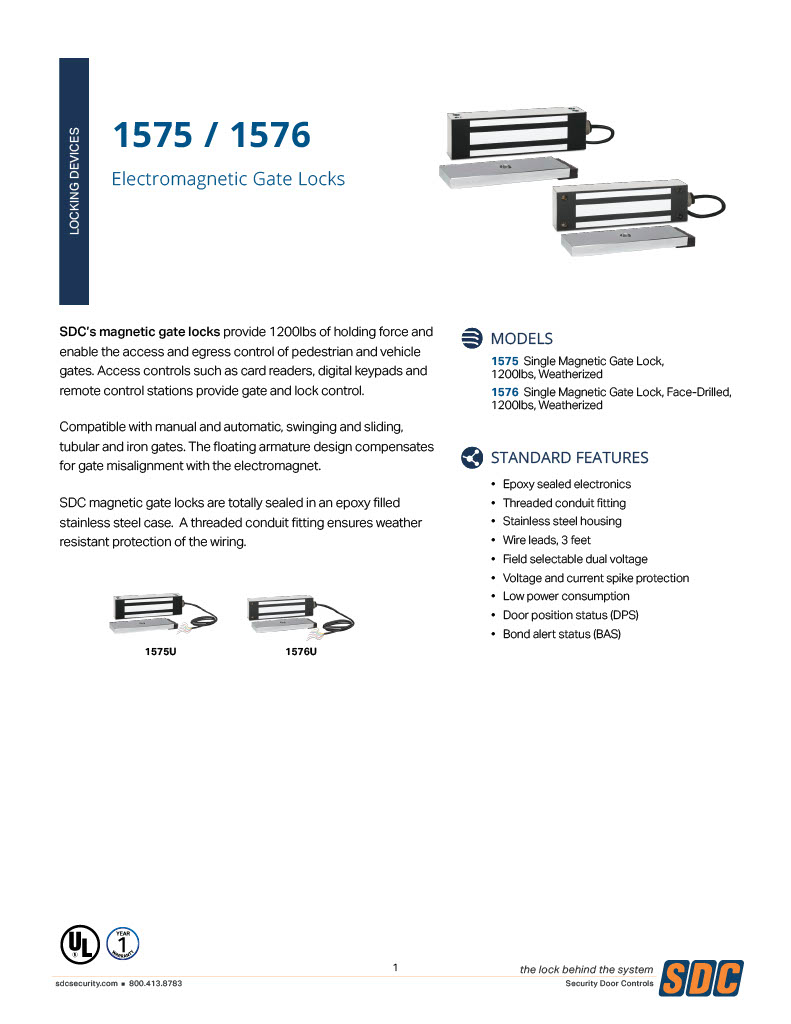

SDC’s Gate EMLock® provides 1200lbs of holding force and enables the access and egress control of pedestrian and vehicle gates. Access controls such as card readers, digital keypads and remote control stations provide gate and lock control.

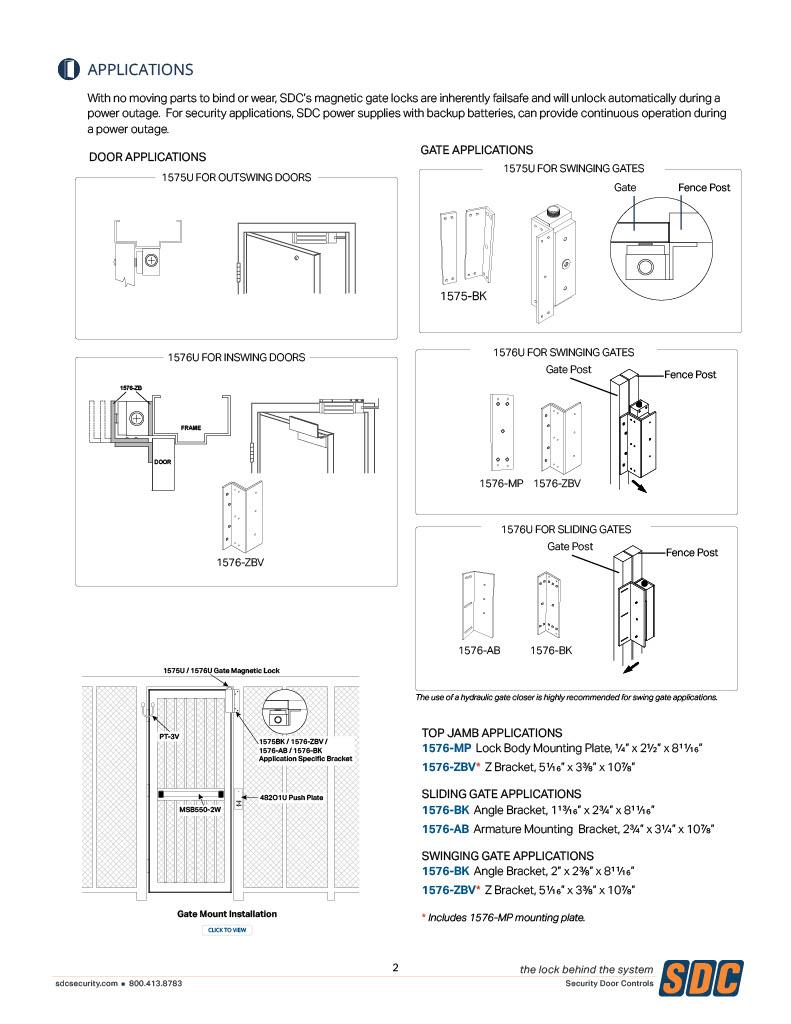

Gate EMLocks are compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet.
