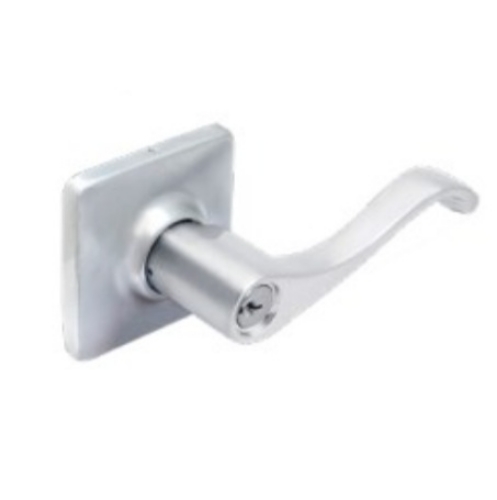

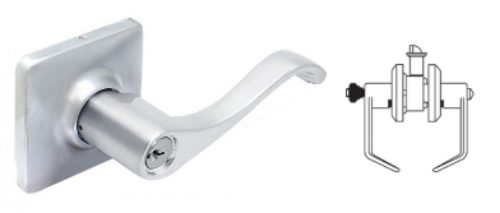

Cal-Royal AST00-SQ Grade 2, Entrance Lock

Cal-Royal AST00-SQ Grade 2, Entrance Lock - ANSI: F109

Turn/Push button locking. Pushing and turning button locks outside knob requiring use of key until button is manually unlocked. Pushing button locks outside knob until unlocked with key or inside knob is turned.

Backset -2-3/8" Standard

Door Range- 1-3/8" to 2" thickness doors.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.   Latch Faseplate -2 1/4" x 1", round corner

Strike- FLS Full Lip Strike 1'' x 2 1/4", 1/4" round corner (standard)

Cylinders & Keyways- 6 pin solid brass "C" keyway standard

Keys:2 keys per lock.

Model: Cal Royal AST00-SQ, AST00-SQ26D, AST00-SQ26, AST00-SQ10B, AST00-SQ3, AST00SQ15,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
