About this item

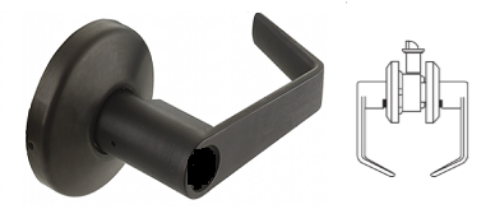

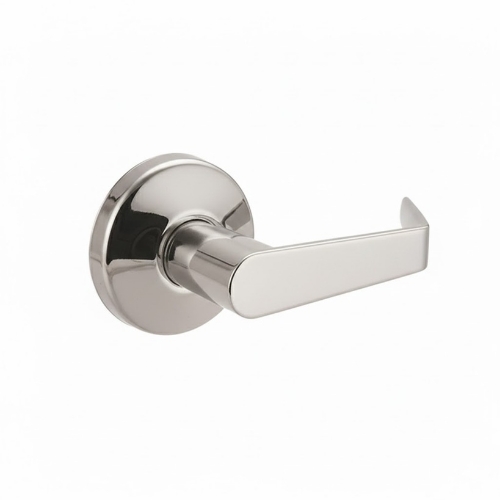

The passage function is the simplest lever lock function in commercial hardware, and it's also one of the most commonly over-specified. Contractors who aren't sure which function to order sometimes default to an entrance lock when all a door actually needs is a passage lever. The Cal-Royal SG30 is what that door should get instead. It's a Grade 2 Challenger Series passage lever lock, ANSI Function F01, where the latch bolt is operated by lever from either side at all times with no locking mechanism of any kind. No push button, no turn button, no cylinder, no key. Just a lever that latches the door closed and opens it from both sides freely.
For keyed functions in the same Challenger Series, browse the full Cal-Royal lever lock lineup. For passage, privacy, entrance, and storeroom functions across every commercial brand, view our commercial door locks catalog.
How ANSI Function F01 Works

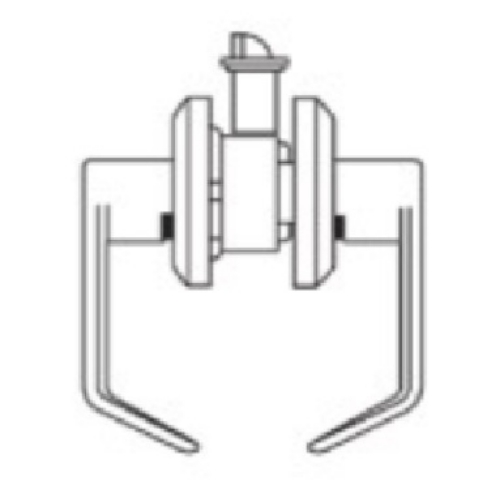

The latch bolt on the SG30 retracts any time either lever is turned, from either side of the door. There is no locked state, no button to engage, no cylinder to key, and no emergency access tool needed because the door can never be locked. Turning either lever from either side always opens the door. The latch bolt holds the door closed when released, which is the only mechanical function this lock performs. It's a latching lever with no security function.
This is the correct specification for interior corridors, hallways, conference rooms, break rooms, supply closets, server room anteroom doors, and any commercial opening where security is not required but the door needs to latch shut. It's also the standard hardware for building areas where fire code requires free egress in both directions without any locking hardware installed.
Cal-Royal SG30 Technical Specifications

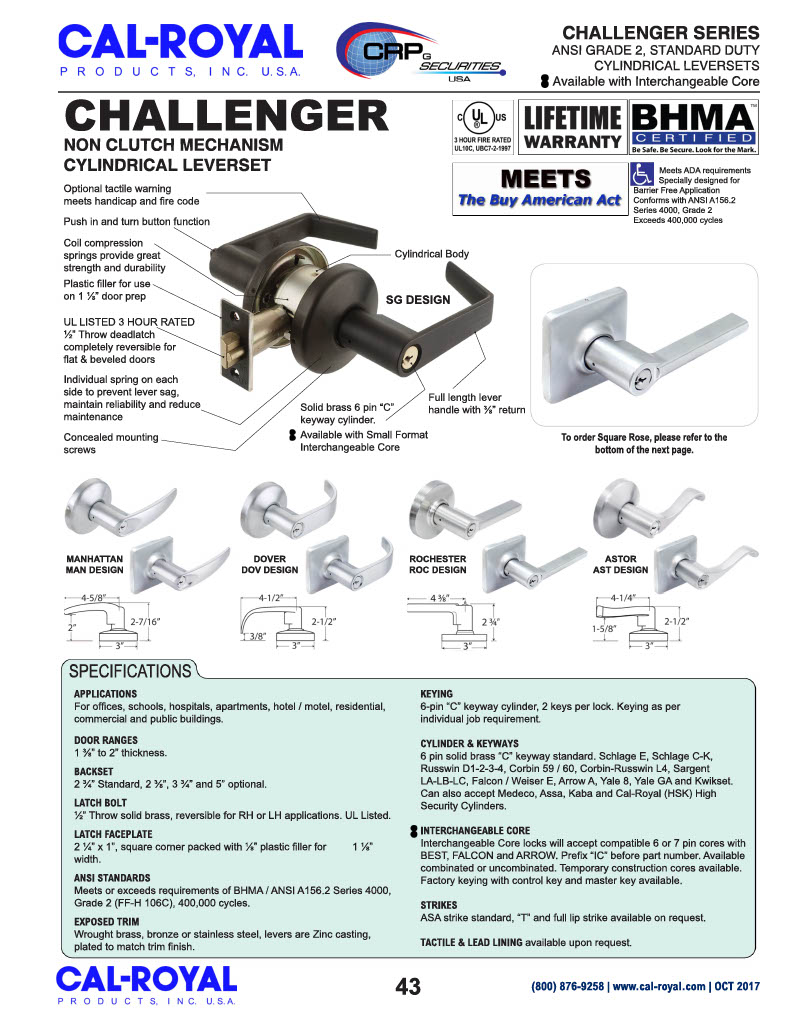

Series: Challenger, Grade 2 cylindrical lever lock. ANSI function: F01, Passage. ANSI standard: BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C). Cycle rating: 400,000 cycles. UL Listed. BHMA Certified Lifetime Warranty. Meets Buy American Act. Lever: SG style, 4-3/4" full length. Finish: US26D Satin Chrome. Latchbolt: 1/2" throw, solid brass, reversible for right-hand or left-hand applications. Latch faceplate: 2-1/4" x 1", square corner, packed with 1/8" plastic filler for 1-1/8" width. Door thickness: 1-3/8" to 1-3/4". Backset: 2-3/4" standard; 2-3/8", 3-3/4", and 5" optional. Rose diameter: 3-1/2". Bore: 2-1/8" diameter. Housing: cold rolled steel with zinc dichromate finish. Strike: ASA 1-1/4" x 4-7/8" standard. Exposed trim: wrought brass, bronze, or stainless steel. Levers: zinc casting plated to match trim finish. Handing: non-handed. Concealed mounting screws. No locking mechanism.
Passage vs. Privacy vs. Entrance: Knowing Which to Order
This is where most ordering mistakes happen on door schedules. Passage (SG30) has no locking function at all. Privacy (SG20) locks from inside with a turn button and provides emergency outside access via a coin tool. Entrance (SG00) has a normally free outside lever that can be locked by a push button and requires a key to unlock. Storeroom (SG05) has an always-fixed outside lever requiring a key for every outside entry. If your opening requires any form of security or controlled access, the SG30 is not the right lock. The passage function exists purely for doors that need to latch but must remain accessible from both sides without restriction at all times.
Optional Clutch and Finish Options
The SG30 is available with an optional clutch mechanism that causes the lever to freewheel if excessive force is applied, protecting the mechanism from damage on high-traffic doors where lever abuse is common. Available finishes span the full Challenger Series: US26D Satin Chrome, US32D Satin Stainless, US10B Oil Rubbed Bronze, US3 Bright Brass, US26 Bright Chrome, and US4 Satin Brass. The non-handed design covers both left-hand and right-hand door swings from a single SKU, simplifying procurement on large door schedules with mixed handling.
