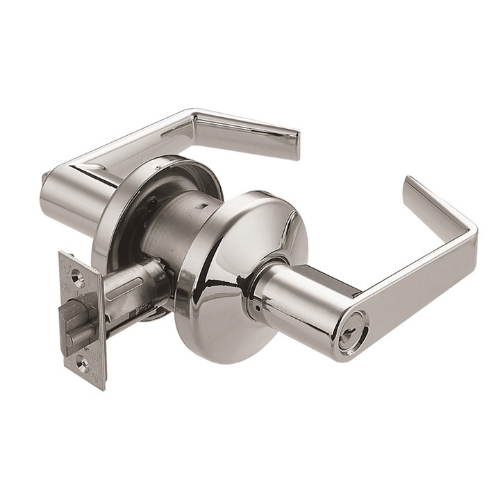

Cal-Royal SG00 US26D Grade 2, Entrance Lock, Satin Chrome

The Cal-Royal SG00 is part of the Challenger Series, Cal-Royal's Grade 2 cylindrical lever lock line built for offices, schools, hospitals, apartments, hotels, and commercial buildings where a reliable entrance lock is needed without the cost premium of a Grade 1 specification. It's ANSI A156.2 Series 4000 Grade 2 certified, UL Listed, and rated for 400,000 operating cycles. The SG lever style in US26D Satin Chrome is the most commonly specified configuration in this series, and it ships non-handed, covering both left-hand and right-hand door swings from a single SKU.

For a broader selection across the Cal-Royal lever lock family, browse Cal-Royal lever locks or view all commercial door locks across every brand.

How the SG00 Entrance Function Works

The SG00 carries ANSI Function F109, which is the entrance/office function with turn/push button locking. From the outside, the lever operates the latchbolt freely when unlocked. Pushing the interior button locks the outside lever, which then requires a key to retract. Pushing and turning the button keeps the outside lever locked until the button is manually disengaged, even after a key is used. From the inside, the lever is always free for immediate egress regardless of whether the outside is locked. This is the standard function for office entry doors, apartment corridor doors, and hotel room exterior doors where occupants need controlled entry from outside but unrestricted exit from inside at all times.

Cal-Royal SG00 Technical Specifications

Series: Challenger, Grade 2 cylindrical lever lock. ANSI function: F109, Entrance/Office. ANSI standard: BHMA/ANSI A156.2 Series 4000, Grade 2 (FF-H 106C). Cycle rating: 400,000 cycles. UL Listed. BHMA Certified Lifetime Warranty. Meets Buy American Act. Lever style: SG. Finish: US26D Satin Chrome. Latchbolt: 1/2" throw, solid brass, reversible for right-hand or left-hand applications. Latch faceplate: 2-1/4" x 1", square corner, packed with 1/8" plastic filler for 1-1/8" width. Door thickness: 1-3/8" to 2". Backset: 2-3/4" standard; 2-3/8", 3-3/4", and 5" optional. Exposed trim: wrought brass, bronze, or stainless steel. Levers: zinc casting plated to match trim finish. Handing: non-handed.

Keyway Compatibility and Cylinder Options

The SG00 ships with a 6-pin solid brass "C" keyway cylinder and two keys per lock. Compatible keyways include Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA, and Kwikset. High security cylinder upgrades are available for Medeco, Assa, Kaba, and Cal-Royal HSK. The SG00 also accepts SFIC (Small Format Interchangeable Core) with BEST, Falcon, and Arrow cores. Temporary construction cores and factory keying with master key and control key are available when ordering in IC configuration.

Optional Clutch Lever Upgrade

An optional clutch mechanism is available on the SG00. The clutch causes the outside lever to freewheel in the locked position instead of transferring torque to the latch mechanism. This prevents lever breakage on high-abuse applications where someone forcefully tries the outside lever when it's locked. For schools, hotel corridors, and any high-traffic installation where lever abuse is a real operational concern, specifying the clutch option at the time of order is worth the minor cost difference.

Where the SG00 Gets Specified

This lock is the correct specification for office entry doors, apartment unit entrances, hotel room exterior doors, hospital department entries, school administrative offices, and light commercial storefronts where Grade 2 performance satisfies the project requirement. For applications requiring Grade 1 heavy-duty specification or mortise lock body security, Cal-Royal's NM Series and Grade 1 cylindrical lines are the appropriate step up.
