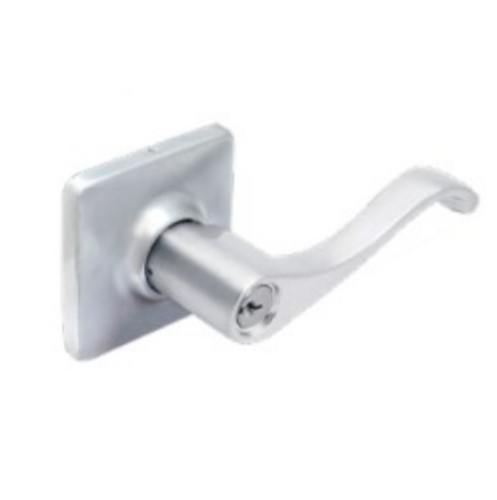

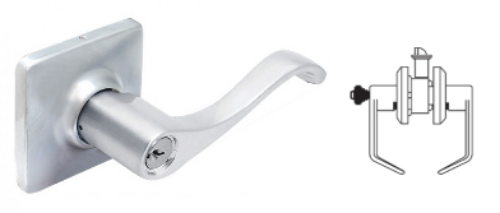

Cal-Royal AST03-SQ Grade 2, Classroom Lock

Cal-Royal AST03-SQ Grade 2, Classroom*Lock - *ANSI: F84

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

Backset -2-3/8" Standard

Door Range- 1-3/8" to 2" thickness doors.   Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Latch Faseplate -2 1/4" x 1", round corner

Strike- FLS Full Lip Strike 1'' x 2 1/4", 1/4" round corner (standard)

Cylinders & Keyways- 6 pin solid brass "C" keyway standard

Keys:2 keys per lock.

Model: Cal Royal AST03-SQ, AST03-SQ26D, AST03-SQ26, AST03-SQ10B, AST03-SQ3, AST03-SQ15,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
