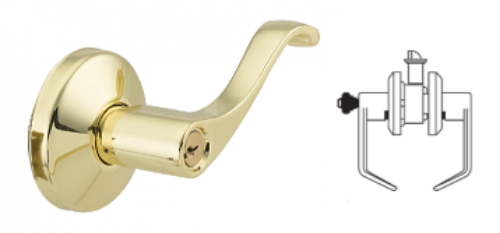

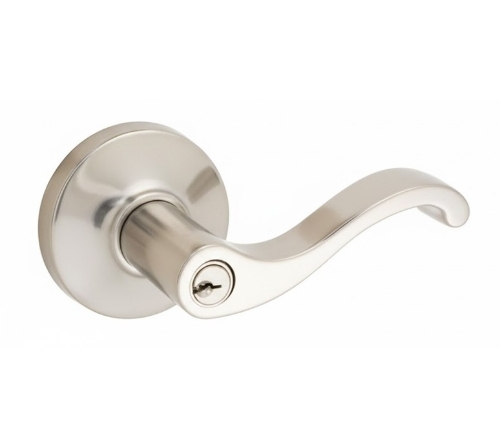

Cal-Royal AST05 Grade 2, Storeroom Lock

Cal-Royal AST05 Grade 2, Storeroom Lock - ANSI: F86

Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.

Backset- 2-3/8" Standard

Door Range- 1-3/8" to 2" thickness doors.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.   Latch Faseplate- 2 1/4" x 1", round corner Strike - FLS Full Lip Strike 1'' x 2 1/4", 1/4" round corner (standard)

Cylinders & Keyways- 6 pin solid brass "C" keyway standard

Keys:2 keys per lock.

Model: Cal Royal AST05, AST0526D, AST0526, AST0510B, AST053, AST0515,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
