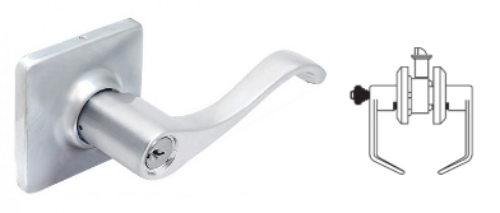

Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome

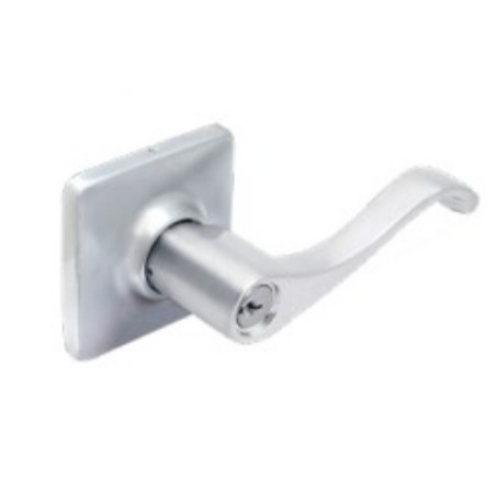

Picture of Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome
Picture of Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome
1-Page1-CHALLENGER
Picture of Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome
Picture of Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome
1-Page1-CHALLENGER
naxt
prev

Product Details

Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome

ANSI: F86

Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.

Door Range - 1-3/8" to 2" thickness doors.

Backset - 2-3/8" Standard

Latchbolt - 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Latch Faseplate - 2 1/4" x 1", round corner

Strike - FLS Full Lip Strike 1'' x 2 1/4", 1/4" round corner (standard)

Cylinders & Keyways - 6 pin solid brass "C" keyway standard

Keys: 2 keys per lock.

Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome

SKU: AST05-SQ US26D

In Stock
Picture for manufacturer Cal-Royal
icon Chat

$78.34

Backset *

2-3/4" Backset (Standard)
2-3/4" Backset (Standard)
2-3/8" Backset
2-3/8" Backset

Strike *

ANSI Strike - 4-7/8" (Standard)
ANSI Strike - 4-7/8" (Standard)
T Strike - 2-3/4"
T Strike - 2-3/4"

Handing *

Keying *

About this item

Applications - For offices, schools, hospitals, apartments, hotel/motel and other public buildings.

Resources

Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome

ANSI: F86

Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.

Door Range - 1-3/8" to 2" thickness doors.

Backset - 2-3/8" Standard

Latchbolt - 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Latch Faseplate - 2 1/4" x 1", round corner

Strike - FLS Full Lip Strike 1'' x 2 1/4", 1/4" round corner (standard)

Cylinders & Keyways - 6 pin solid brass "C" keyway standard

Keys: 2 keys per lock.

Picture of Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome
Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome

Product code: AST05-SQ US26D

In Stock

$78.34

$78.34

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.

Picture of Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome
Cal-Royal AST05-SQ US26D Grade 2, Storeroom Lock, Satin Chrome

Product code: AST05-SQ US26D

In Stock

$78.34

$78.34
