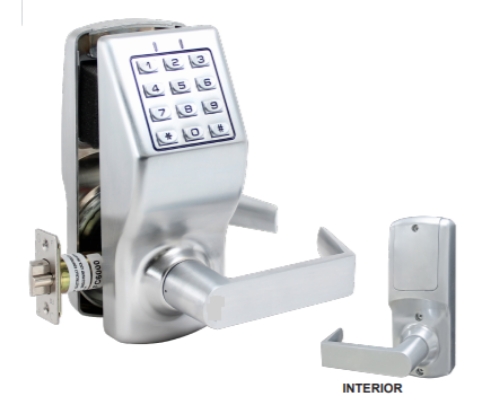

Cal-Royal CR3030 Heavy Duty Digital Keypad Door Lock

Cal-Royal CR3030Heavy Duty Digital Keypad Door Lock

Function: Latch bolt operated by lever from either side, except outside has to enter a pre-programmed code in the keypad in order to retract the latch upon turning the lever.

Door Ranges:1 3/8" to 2" thickness.

Backset:2 3/4" Standard, 2 3/8", 3 3/4", 5" and 2 3/4" anti-friction latch with 3/4" throw for pair of fire doors optional.

Latch Faceplate:Standard 2 1/4" x 1 1/8" for 2 3/4" backset. Optional 2 1/4" x 1 1/8" for 2 3/8" backset.

Strikes:ASA strike standard, "T" and full lip strike available on request.

Ansi Standards:Meets or exceeds BHMA / ANSI A 156.2 Series 4000 Grade 1 requirements.

Power Supply:4 AA Batteries (comes standard in packing)

Clutch:Clutch technology allows turning of lever without retracting latch, thus prolonging the life of the lock by reducing stress on the spindle and other parts.

Weather Resistant:All models are weather resistant for temperature ranges of +158○F to -22○F (+70○C to -30○C).

Keypad:12 programmable buttons for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service codes.

Model:Cal-Royal CR3030, CR3030US26D, CR3030US10B

Master Code:performs all programming functions.

Sub-Master Code:performs all programming functions except delete or change Master Code.

Manager Codes: CR3000 can accommodate 10 Managers each having different codes and under each Manager has 9 Users (1 Manager + 9 Users = 1 Bank). Managers are capable of programming / adding and deleting User codes under his Bank. Managers are also capable of accessing the next higher Bank until another Manager Code appears.

Service Codes (5):are one-time codes only. It cannot be used again. Once a Service Code is entered, the unit will unlock but will automatically delete the code.

Passage Mode:once enabled, the unit is unlocked continuously until "Disable Passage Mode" is initiated.

Tones and LED Indicators:can be programmed for different settings. Making sure that every key pressed is confirmed by an accompanying LED and / or tone.

Next Free Code Location Finder:no need of guessing what free location is available in entering a new code. CR3000 can pin point and tell you where the next available location is.

Code Locator Function:CR3000 can tell you the exact location of a certain code. Making it easy to determine as to what manager a user code is under.

Keypad Anti-Tamper Lockout:if an invalid code is entered 3 times in succession, the unit will turn off for 30 seconds to prevent tampering.

Remote Switch / Release:CR3000 provides 2 Remote Switches. Either can be used for an emergency push button switch, or connected to alarm systems such as fire alarms.

Weather Resistant:CR3000 are manufactured making sure that internal electronic parts are protected from moisture, dust, water and corrosion. All models are weather resistant for temperature ranges of +158 F to -22 F (+70 C to -30 C).

Clutch Technology:the outside lever of the CR3000 is a free-wheeling lever. If no valid code is entered, the lever will just turn freely without moving any parts inside, thus preventing breaking or tampering.

Non-Handed:CR3000 can be installed for both left and right door opening.

2 Year Warranty
