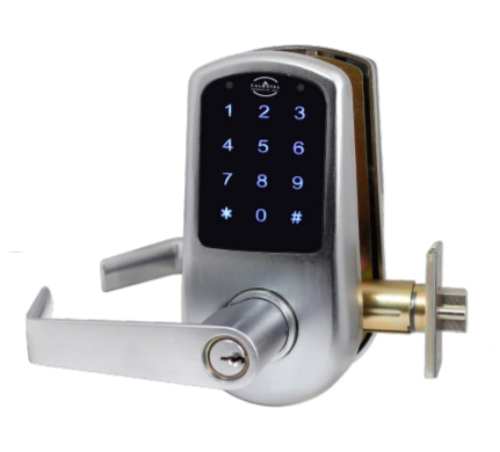

Cal-Royal CR9000 Digital Touch Screen Door Lock

The Cal-Royal CR9000 is a commercial-grade digital touchscreen keypad door lock with clutch technology, designed for small business storefronts, professional offices, salons, fitness studios, dental and medical clinics, short-term rental properties, multi-unit residential buildings, storage facilities, and back-of-house commercial doors where keyless code-based entry replaces traditional keys without requiring the cost or complexity of an enterprise access control system. Stand-alone touch screen wakes on touch, accepts up to 50 user PIN codes plus 2 one-time use codes, and reverts to sleep mode after each operation. Master PIN code (6 digits) handles all programming, lock-out mode, and factory reset. Each user PIN code is 4 to 6 digits programmable. Mechanical key cylinder overrides the touchscreen for emergency entry or low-battery situations, with the standard 6-pin "Schlage C" keyway accepting two brass keys per lock. Free-wheeling lever mechanism: when the outside lever is locked, it rotates freely up and down while remaining securely locked, preventing pry attacks that target the spindle on rigid-lever locks. Clutch technology decouples the lever from the latch when no valid code is entered, prolonging lock life by eliminating spindle stress. Weather resistant from -30°F to 150°F at 85% relative humidity, suitable for exterior doors, gates, and garage entries in addition to interior commercial use. Powered by 4 AA alkaline batteries with a low-battery indicator.

About Cal-Royal CR9000 Series and Grade 2 Specification

Cal-Royal Products is a U.S. commercial hardware manufacturer (Los Angeles, in business since 1986), supplying value-engineered architectural hardware that meets the same ANSI/BHMA standards as Schlage, Yale, Sargent, and Falcon at a meaningfully lower price point. Within Cal-Royal's electronic lock lineup, the CR9000 Series is the touchscreen keypad tier without RFID, sitting between the mechanical pushbutton CRCODE200 family (entry tier, no electronic features) and the CR6000/AT6000/SPA6000 RFID-enabled touchscreen tier (premium, supports proximity card readers). ANSI/BHMA A156.2 Series 4000 Grade 2 is the moderate-frequency commercial cycle and abuse rating: 800,000+ operating cycles, vertical/horizontal load resistance, and impact resistance suitable for offices, retail, and professional service spaces. For higher-frequency institutional applications (schools, hospitals, multi-tenant office buildings) where Grade 1 is specified, see the heavier-duty Cal-Royal CR3000 keypad family. For the broader Cal-Royal electronic lock category see Cal-Royal Keypad/Proximity Locks within Electronic Keypad/Proximity Lock under Keypad/Prox Locks.

CR9000 Specifications and Programmable Features

• ANSI/BHMA Standard: A156.2 Series 4000 Grade 2 strength and operational requirements

• Lock function: stand-alone touchscreen, no network or app required, no monthly fees

• Touchscreen behavior: touch-to-wake, illuminates number pad on touch, reverts to sleep after operation

• User PIN codes: up to 50 codes, 4-6 digits each

• One-time PIN codes: 2 simultaneous one-time codes (consumed on use)

• Master PIN code: 6 digits, used for programming, lock-out mode, factory reset

• Auto re-lock: default 5 seconds after successful entry, adjustable via Master PIN

• Passage mode: continuous unlocked operation for non-restricted traffic, green LED blinks when active

• Lock-out mode: restricts all User PIN codes, Master PIN only access (for emergencies, security incidents, holiday closures)

• Low battery indicator: blinking signal when 4 AA alkaline batteries are low

• Free-wheeling lever: rotates freely when locked, anti-pry protection on spindle

• Clutch technology: lever decouples from latch when no valid code is entered, reducing spindle stress and extending lock life

• Latch bolt: 1/2" throw solid brass, deadlocking on both keyed and non-keyed function, UL listed

• Backset: 2-3/4" (70mm) standard, 2-3/8" (60mm) optional

• Latch faceplate: 1-1/8" × 2-1/4" square corner beveled (2-3/4" backset), 1" × 2-1/4" square corner beveled (2-3/8" backset)

• Strike: ANSI curved lip 1-1/4" × 4-7/8" × 1-3/16" standard; T strike and full-lip strike optional

• Door thickness range: 1-3/8" to 1-3/4"

• Mechanical override: 6-pin solid brass "Schlage C" keyway standard with 2 brass keys per lock

• Interchangeable Core option: SFIC small-format IC core compatible with Best and Master 6-pin and 7-pin cores (prefix "IC" before part number, available with US26D and US10B finishes only)

• Weather resistance: -30°F to 150°F (-35°C to 66°C) at 85% relative humidity, suitable for exterior doors, gates, garage entries

• Power source: 4 AA alkaline batteries (replaceable, low-battery indicator alerts before depletion)

Trim Design Family and Available Finishes

The CR9000 ships in 4 trim design variants -same lock body and electronics, different lever aesthetic to match architectural style:

• CR9000 standard (clean rectangular touchscreen housing with straight contemporary lever)

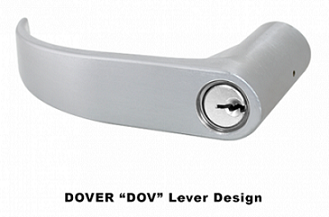

• DOV9000 Dover Design (more transitional styling, suits older office buildings and retail conversions)

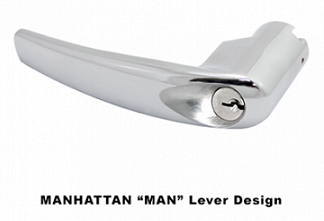

• MAN9000 Manhattan Design (modern flat-bar lever, suits contemporary commercial interiors)

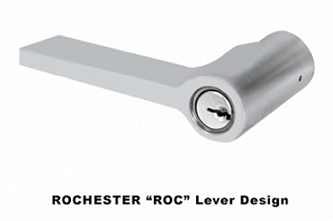

• ROC9000 Rochester Design (classic round-knob aesthetic, suits residential conversion and traditional architectural styles)

Five BHMA-coded finish options across all four trim designs: US26D Satin Chrome (most-specified commercial finish), US26 Polished Chrome (mirror finish), US3 Polished Brass, US4 Satin Brass, and US10B Oil Rubbed Bronze. The IC small-format core option is available only with US26D and US10B finishes.

When to Specify the CR9000 vs Other Cal-Royal Electronic Locks

Three buyer scenarios point specifically to the CR9000:

• Small business and professional office retrofits (salons, gyms, clinics, dental offices, attorney offices, accounting firms) where the owner wants employee code-based entry without managing physical keys or paying for cloud-based access systems.

• Short-term rental and property management where each guest gets a unique PIN that's deactivated after checkout (the 2 one-time codes plus 50 user codes accommodate this perfectly).

• Back-of-house commercial doors (supply rooms, server rooms, employee-only areas, storage units) where staff turnover requires periodic code changes without rekeying the building.

If the application requires RFID proximity card or key fob support in addition to keypad codes, see the Cal-Royal CR6000 (touchscreen + RFID), Cal-Royal AT6000, Cal-Royal SPA6000, or the Cal-Royal ICCR6000 (touchscreen + RFID + SFIC core compatibility). For RFID accessories see Cal-Royal CRPRFID Proximity Card and Cal-Royal RFID-KF Key Fob. If the application is a heavier-duty institutional setting requiring Grade 1 cycle life (schools, hospitals, multi-tenant office buildings, government), step up to the Cal-Royal CR3000, Cal-Royal CR3030, or Cal-Royal ICCR3000 heavy-duty keypad locks.
