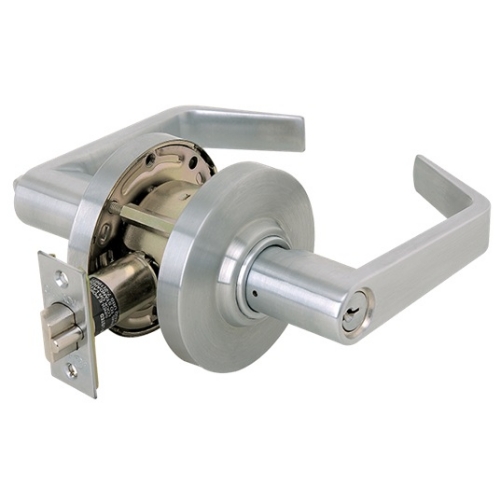

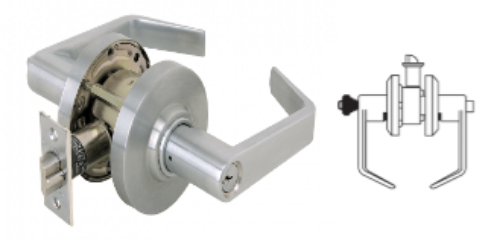

Cal-Royal CXP03 Grade 2, Classroom Lock - With Clutch

Cal-Royal CXP03* Grade 2,Classroom Lock -*ANSI: F84

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

Clutch:Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Cylinders & Keyways- 6 pin solid brass "C" keyway standard

Keys:2 keys per lock.

model:Cal-Royal CXP03,Cal-Royal CXP03US26D,Cal-Royal CXP03US10B,Cal-Royal CXP03US26,Cal-Royal CXP03US4,Cal-Royal CXP03US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
