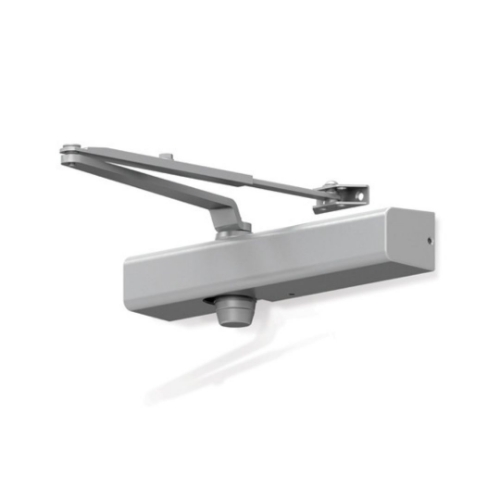

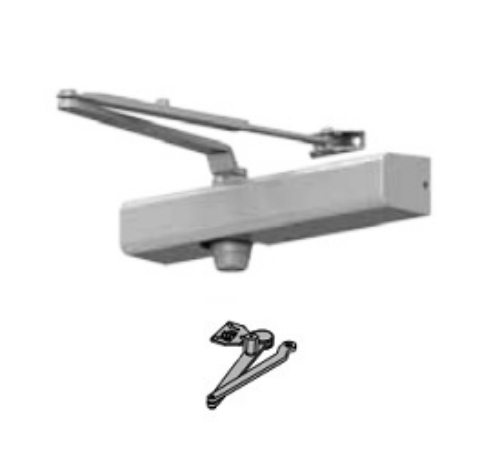

Falcon SC81A DSHO Door Closer - Dead Stop Arm, Hold Open

Falcon SC81A DS Door Closer - Dead Stop Arm, Hold Open (Dor-O-Matic)

Non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

Standard features

• Meets ANSI A117.1 -  ANSI/BHMA A156.4, grade 1

• UL listed  -  1 1 ⁄4" diameter piston

• Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.

• Fully adjustable sizes 1-6 -  Single piece cast aluminum body

• Non-handed for left or right swinging doors -  Heat-treated steel piston

• Heat-treated pinion  -  Separate adjustable general speed, latch speed and backcheck

• Cover is high-impact UL listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test

• UL 10C approved fluid -   Universal screw pack for aluminum, hollow metal, and wood door
• 10-year warranty

Listings and certifications

The Falcon SC81 is UL approved and compliant with the UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC81 is designed to meet the American Disabilities Act (ADA) and ANSI A117.1. The SC81 is ANSI/BHMA A156.4, grade 1 certified.

Model: Falcon SC81 DS, SC81DS, SC81-DS, SC81DS, SC81 DS, SC81-RWPA
