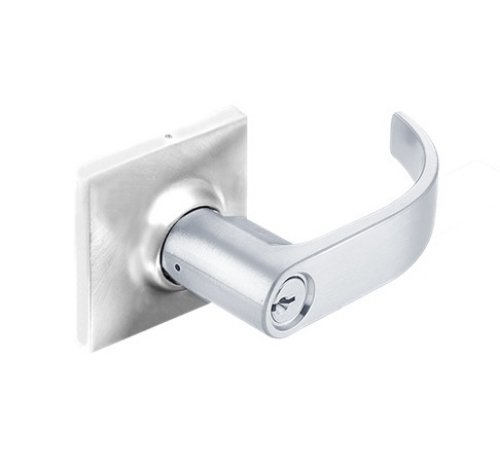

Cal-Royal DOV03-SQ US26D Grade 2, Classroom Lock, Satin Chrome

Cal-Royal DOV03-SQ US26D Grade 2, Classroom Lock, Satin Chrome

ANSI: F84

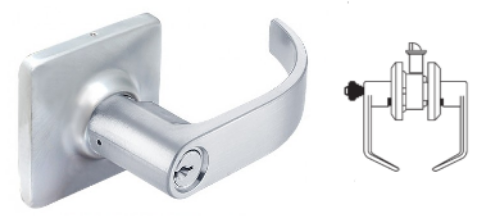

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

Door Range - 1-3/8" to 2" thickness doors.

Backset - 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front - 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike - ASA strike standard, "T" and full lip strike available.

Latchbolt - 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Cylinders & Keyways - 6 pin solid brass "C" keyway standard

Keys: 2 keys per lock.

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
