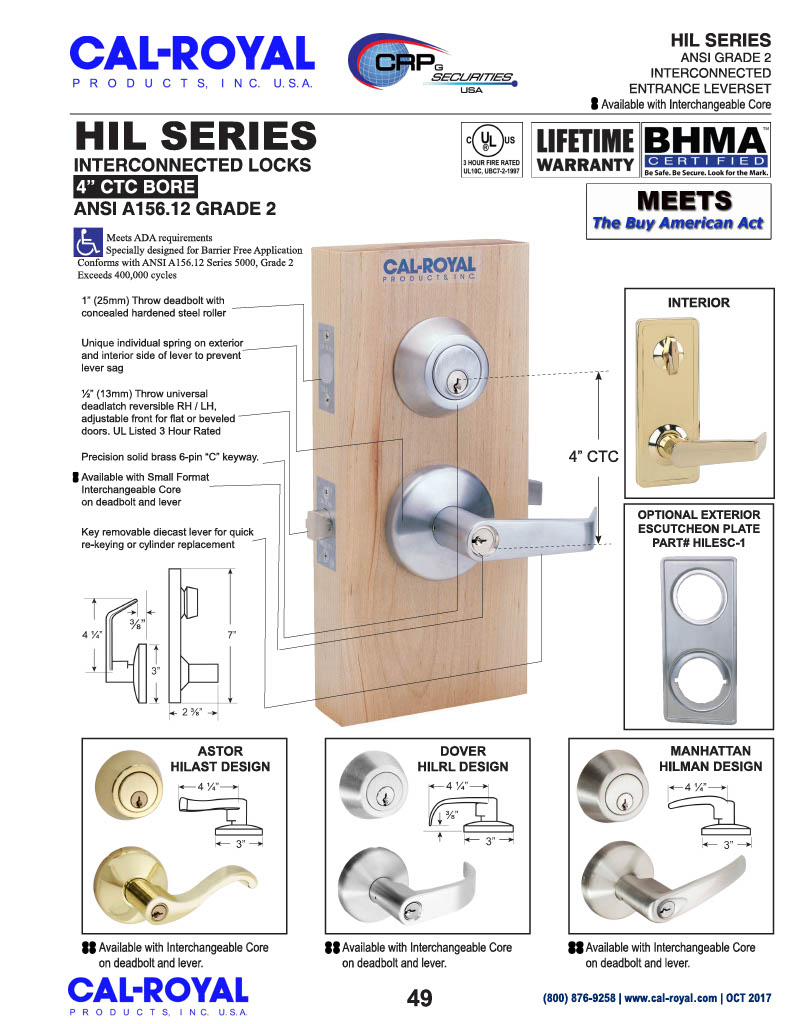

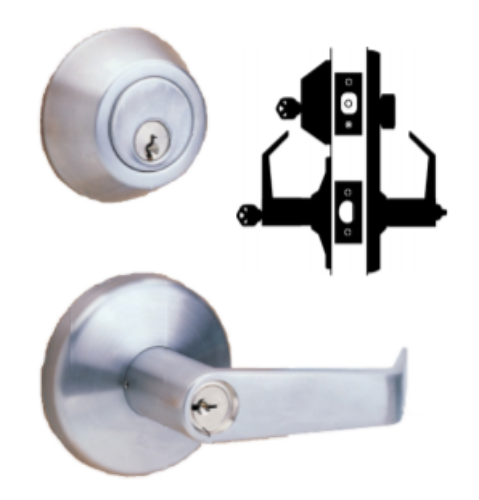

Cal-Royal HIL00 Double Locking, Interconnected Entrance Lever Lock

Cal-Royal HIL00 Double Locking, Interconnected Entrance Lever  Lock -*4" CTC Bore -ANSI: F97*

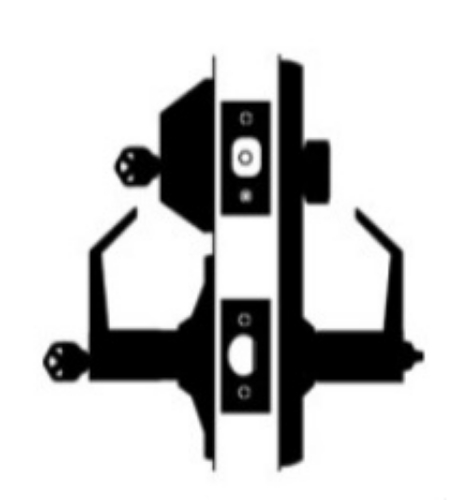

FUNCTIONS:Deadbolt thrown or retracted by key in upper lock from outside or by inside turn unit. Dead latch retracted by key in outer when locked by pushing turn button in inner lever. Outer lever may be fixed in locked position by rotating turn button. Turning inside lever retracts deadbolt and latch bolt simultaneously for immediate exit.

DOOR RANGE: 1 3/8" - 1 3/4" door thickness.

ANSI STANDARDS: Meet ANSI A156.12 Series 5000 Grade 2 Requirements.

STRIKES: Standard "T" strike furnished with lockset. 2 3/4" x 1 1/8" square strike with deadbolt.

ESCUTCHEON: 2 11/16" x 7" brass plated. Packed with interior escutcheon. Optional external escutcheon available.

DEADBOLT: 1" Throw. UL-Listed Adjustable 2 3/4" or 2 ⅜" Brass with hardened steel pin. Standard 2 1/4" x 1" face plate, packed with plastic filler for 1 ⅛" door preparations.

LATCH BOLT: 1/2" Throw. UL-Listed for 3 hour doors. 2 3/4" standard backset.

LATCH FACEPLATE: Standard 2 1/4" x 1 ⅛" for 2 3/4" backset. 2 1/4" x 1 1/8" for 2 3/8" backset optional.

HOUSING: Steel and Zinc dichromate finish for rust resistance.

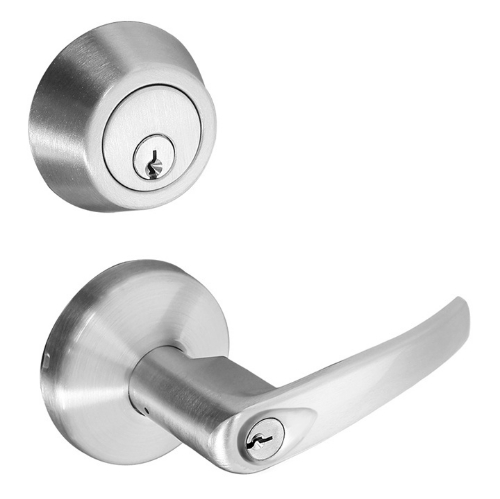

Model:Cal-Royal HIL00,Cal-Royal HIL00US26D,Cal-Royal HIL00US3,Cal-Royal HIL00US10B,Cal-Royal HIL00US15,

GENERAL SPECIFICATIONS: Simultaneous retraction on both latch and deadbolts from inside by turning the lever in a panic-proof exit situation. Top lock is heavy duty deadbolt with the bottom lock having a cylindrical body. High security with a double locking point using the keyed lock function.
