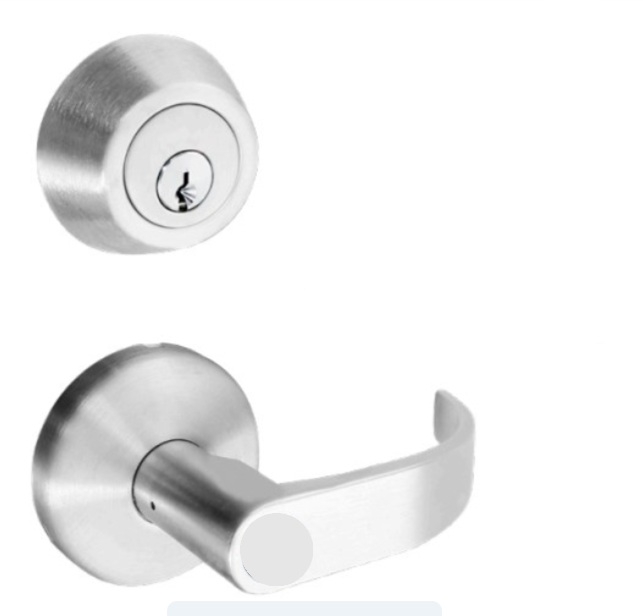

Cal-Royal HILRL30 US26D Single Locking, Interconnected Passage Lever Lock, Satin Chrome

Interconnected locks solve a problem that standard cylindrical locks can't: simultaneous retraction of both the latch and the deadbolt from inside with a single lever turn. That matters in any application where quick, code-compliant egress is required without a separate deadbolt knob. The Cal-Royal HILRL30 does exactly that, in a Grade 2 ADA-barrier-free certified configuration with UL 3-hour fire rating and a BHMA certified lifetime warranty.

It's part of the Cal-Royal HIL Series, a family of interconnected entry locks designed for hotels, apartments, schools, and commercial facilities where you need the security of a keyed deadbolt on the outside and panic-proof, one-motion exit from the inside. Browse the full range of Cal-Royal lever locks to find related configurations in the HIL lineup.

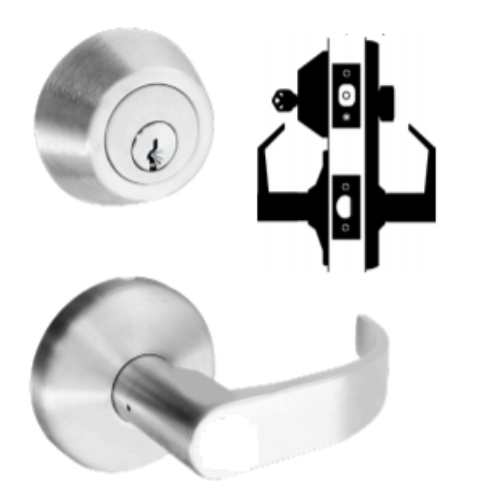

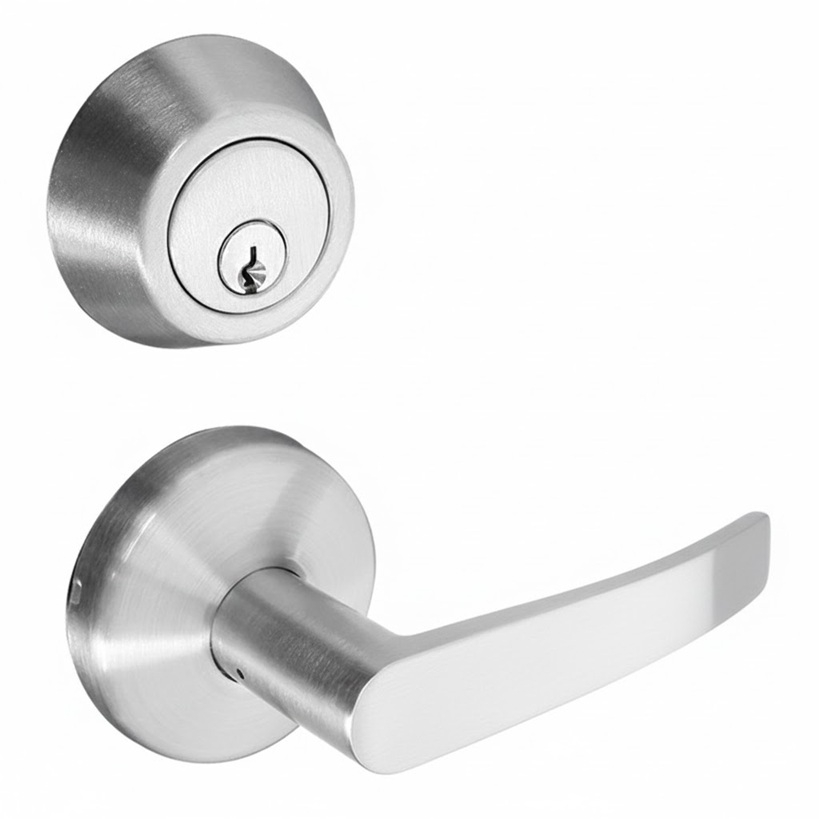

How the HIL30 Single Locking Function Works

The HILRL30 uses the HIL30 single locking, entrance passage lever function. From the outside, the deadbolt is thrown or retracted by key in the upper lock, or by the inside turn unit. The latch bolt retracts by lever from either side. From the inside, a single turn of the lever retracts both the deadbolt and the latch bolt simultaneously for immediate exit. No need to disengage the deadbolt separately. That's the panic-proof exit design that makes interconnected locks the preferred choice for hotel corridors, dormitories, and occupied commercial suites.

Cal-Royal HILRL30 Technical Specifications

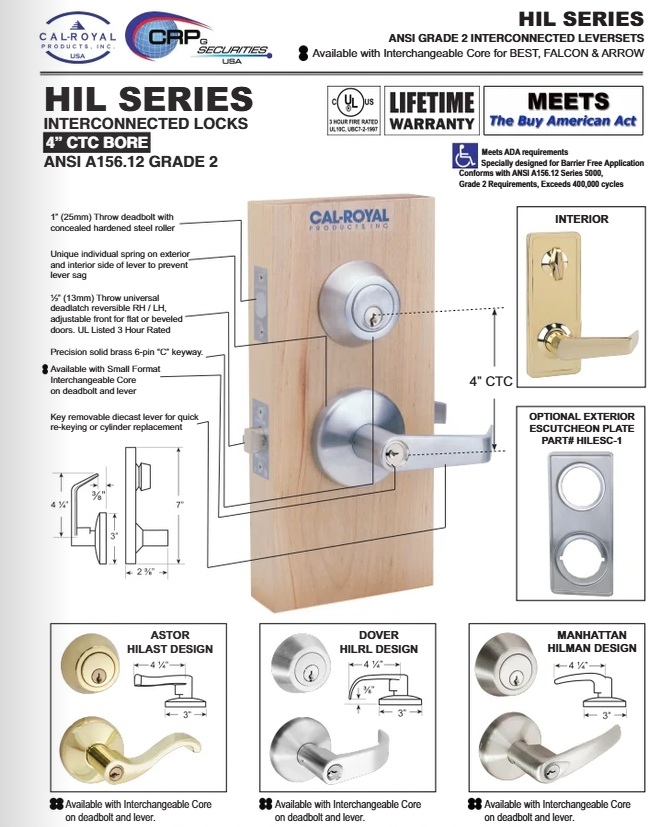

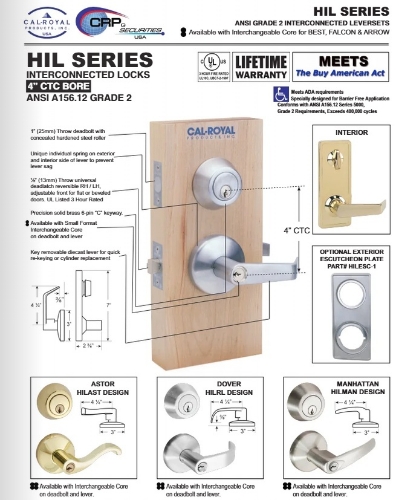

ANSI standard: A156.2 Series 4000, Interconnected, Barrier Free. Also meets ANSI A156.12 Series 5000 Grade 2 requirements. UL Listed, 3-hour fire rating, conforms to UL10C and UBC 7-2-1997. Meets the Buy American Act. BHMA Certified Lifetime Warranty. Finish: US26D Satin Chrome. Lever style: RL. Lever length: 4-1/4". Handing: reversible, non-handed. Door thickness: 1-3/8" to 1-3/4". Backset: 2-3/4" standard (2-3/8" optional). Deadbolt: 1" throw, brass with hardened steel pin, adjustable 2-3/4" or 2-3/8", front 2-1/4" x 1-1/8" square face. Latch bolt: 1/2" throw, 2-3/4" standard backset, UL Listed for 3-hour doors. Latch faceplate: 2-1/4" x 1-1/8" for 2-3/4" backset, 2-1/4" x 1" for 2-3/8" backset. Strike: standard "T" strike included, 2-3/4" x 1-1/8" square deadbolt strike. Escutcheon: 2-11/16" x 7" brass plated, interior escutcheon packed standard, external escutcheon optional. Housing: steel with zinc dichromate finish for rust resistance.

Cylinder, Keyway, and Re-Keying

The HILRL30 ships with a solid brass 6-pin "C" keyway cylinder. It's compatible with Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA, and Kwikset keyways. High security cylinder options include Medeco, Assa, Kaba, and Cal-Royal HSK. Small Format Interchangeable Core (SFIC) is available, accepting compatible 6 or 7 pin cores with BEST, FALCON, and ARROW.

The lever is key-removable, which means quick re-keying or cylinder replacement without pulling the full lock body. Each lever also has a unique individual spring on both the exterior and interior sides, which prevents lever sag over time. That's a small engineering detail that most facility managers only notice when it's missing.

ADA Compliance and Barrier-Free Design

The HILRL30 conforms to ANSI A156.2 Series 4000 Interconnected, Barrier Free standards. The lever design meets ADA requirements for accessible hardware, allowing single-hand operation without tight grasping, pinching, or twisting of the wrist.

Available Functions

Beyond the standard HIL30 single locking passage lever configuration, the HIL Series also supports Classroom, Storeroom, and Dummy functions on request. For more commercial door locks across all brands and functions, we carry the full spectrum of Grade 1 and Grade 2 cylindrical, mortise, and interconnected hardware.
