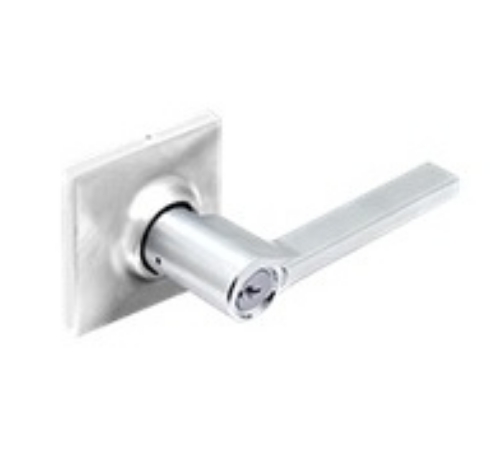

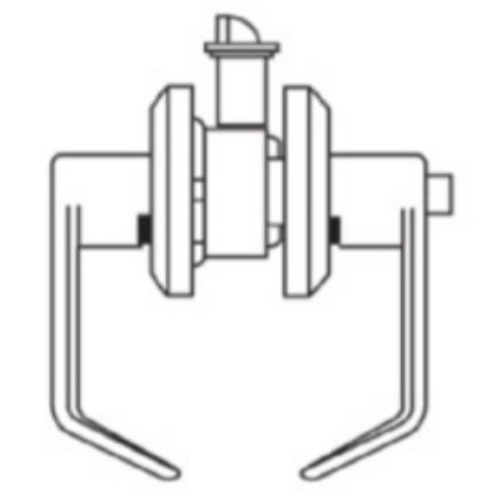

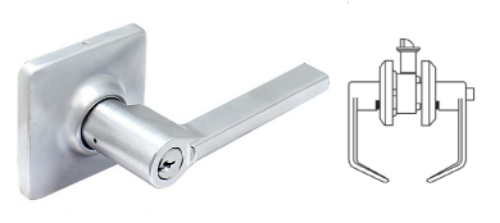

Cal-Royal ROC10-SQ Grade 2, Patio Lock

Cal-Royal ROC10-SQ*Grade 2, PatioLock - ANSI: F86*

Deadlocking latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by rotating inside lever or closing door

Door Range- 1-3/8" to 2" thickness doors. Backset - 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.   Model: Cal Royal ROC10-SQ, ROC10-SQ26D, ROC10-SQ26, ROC10-SQ10B, ROC10-SQ3, ROC10-SQ15,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
