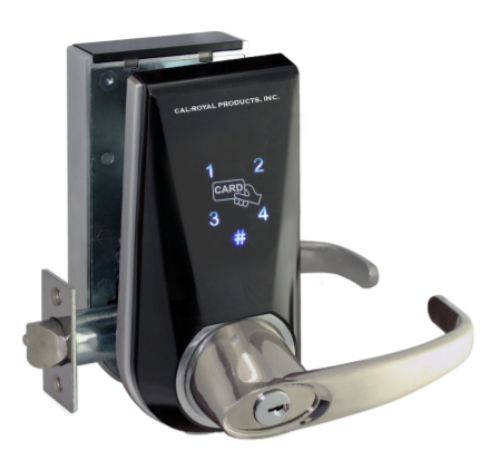

Cal-Royal RS2100 Residential / Commercial Phone Lock

Cal-Royal RS2100Residential / Commercial Phone Lock

Function:Latch bolt operated by lever from either side, except outside has to use a pre-programmed RFID card or a registered smart phone to touch the face of the face lock in order to retract the latch upon turning the lever. Key overrides the use of the RFID card and smartphone.

Standard Duty Grade 2

Door Ranges:1 3/8" to 1 3/4 thickness.

Backset:2 3/8" Standard, optional 2 3/4"

Latch Faceplate:Standard 2 1/4" x 1" for 2 3/8" backset. Optional 2 1/4" x 1 1/8" for 2 3/4" backset

Proximity (Rfid) Card (Standard):2 pcs. included. Compatible with existing MIFARE infrastructure. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16".

Rfid Keyfob (Optional):Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16".

Power Supply:4 AA 1.5V Alkaline Batteries (comes standard in packing).

Strikes:Full lip strike standard. ASA strike available on request

Clutch:Clutch technology allows turning of lever without retracting latch. Thus prolonging the life of the lock by reducing stress on the spindle and other parts. Cylinder & Keyways: 5 pin solid brass "C" keyway standard. Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 /60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal (HSK) High Security Cylinders.

Weather Resistant:All models are weather resistant for operating temperature ranges of +149○F to -4○F (+65○C to -20○C) and storage temperature ranges of +176○F to -22○F (+80○C to -30○C).

Bluetooth Connectivity:Lock can be managed / synced using the K3 (Apple) and K3+ (Android) app.

Access Log (Audit Trail):The K3 app features a 24 / 7 activity log, so you can keep track of who accessed the lock. A timestamped access log can be shared by the Admin phone via email. 10,000 audit trail entries.

Ble Gateway Connectivity:Optional BLE Gateway connectivity for remote lock management.

Model:Cal-Royal PL7100, PL7100US26D, PL7100US10B, PL7100US3, PL7100US4, PL7100US26

Apple and Android Compatible - iPhone 4S or above with iOS 8.0 and above. Android 4.3 or above with Bluetooth Low Energy capability.

Gateway Connectivity - optional gateway device to connect compatible locks to the internet, so users can manage locks remotely.

Bluetooth Connectivity - lock can be managed / synced using the K3 (Apple) and K3 (Android phones without NFC), and K3+ (Android phones with NFC) app.

NFC (Near Field Communication) Interface - NFC compatible for android phones. For the complete list of phones, please go to link: www.nfcworld.com/nfc-phones-list/#available

Admin Phone - a lock can only have one Administrator phone at a time. Only smartphones are used as Administrator. One admin phone can manage up to 250 locks.

Access Log (Audit Trail) - the K3 app features a 24 / 7 activity log, so you can keep track of who accessed the lock. A timestamped access log can be shared by the Admin phone via email. 10,000 audit trail entries.

Passage Mode - once enabled by the Admin, the unit is unlocked continuously until "Disable Passage Mode" is initiated.

Tones and LED Indicators - indicates the operating status of the lock accompanied by the corresponding tones / beeps.

Restricted Access Right - RS2100 can be programmed to specify the access period or intervals of users.

Keypad Anti-Tamper Lockout - if an invalid code is entered 3 times consecutively, the unit will alarm 10 beeps and stay idle for 1 minute.

RFID Card (Standard) - compatible with existing MIFARE infrastructure. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16".

RFID KEY FOB (Optional) - compatible with existing MIFARE infrastructure. Operates at 13.56 MHz in accordance with ISO 14443A. Inductive distance up to 1 3/16".

Weather Resistant- the RS2100 is designed to ensure that internal electronic parts are protected from moisture, dust, water and corrosion. All models are weather resistant with operating temperature of +149 Degree F to -4 Degree F (+65 C to -20 C) and storage temperature of +176 F to -22 F (+80 Degree C to -30 C).

Low Battery Warning - when voltage is lower than safety power, RS2100 gives beep sound warning after unlocking the device.

Clutch Technology - the outside lever of the RS2100 is a free-wheeling lever. If no valid code is entered, the lever will just turn freely without moving any parts inside. Thus, preventing breaking or tampering.

Non- Handed - RS2100 is reversible for left and right hand openings.
