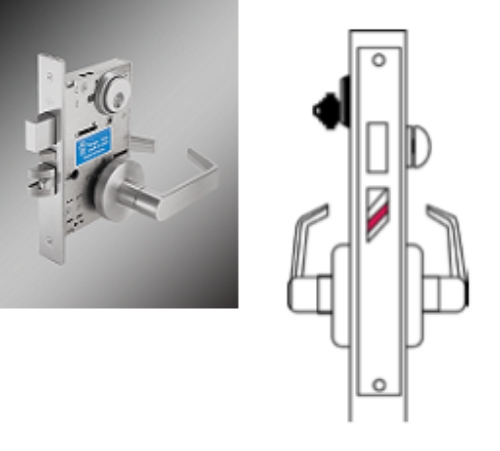

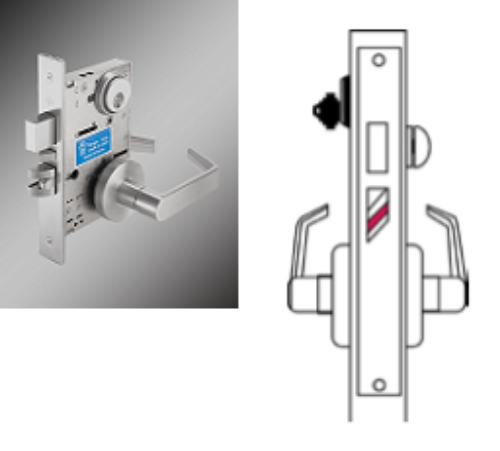

Cal Royal SC8473 US26D Extra H.D. Grade 1, Dormitory / Bedroom Mortise Lockset - Satin Chrome

SC8473
SC8473
naxt
prev

Product Details

Cal Royal SC8473 US26D Extra Heavy Duty Grade 1, Dormitory / Bedroom*Mortise Lockset - With Clutch Free-Wheeling - Satin Chrome*

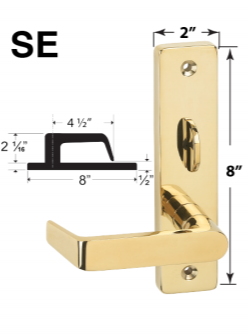

For Trims Styles Click here

Function:* ANSI F21 -Dormitory / Bedroom -*Latch bolt retracted by knob or lever from either side. Deadbolt extended or retracted by key outside or thumb turn inside. Latch bolt and deadbolt are independent of each other.

For Doors:1 3/4" (44.5mm) thick standard.Lock Hand:Lock bodies are easily field reversible, no need to specify hand when ordering

Backset & Strike:2 3/4" (70mm) only backset. Brass or stainless steel strike; ANSI Standard A115.1; curve lip with dust box

Lock Case:Heavy Duty wrought steel, zinc dichromate plated

Center To Center:Center of lever to center of cylinder is 3 7 /8" (98mm)

Armor Faceplate:Brass or stainless steel; 8" x 1 7 /32" (203mm x 31.3mm); ANSI Standard A115.1

Deadbolt:1" (25.4mm) throw; hardened stainless steel

Latch Bolt:3/4" (19mm) throw; one-piece stainless steel with anti-friction reversible tongue

Cylinder & Keyways:6-pin solid brass "C" keyway standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

Interchangeable core (IC):Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW (SFIC). Also available with SCHLAGE,CORBIN / RUSSWIN D-1 thru 4, SARGENT LA , and YALE GA Large Format Cylinders.

Toggle Button:High rust-resistant chrome plated zinc alloy Warranty: Lifetime warranty

Model:Cal Royal SC8473 Extra Heavy Duty Grade 1, Closet / Storeroom with Deadbolt Mortise Lockset - With Clutch Free-Wheeling - Satin Chrome, SC8473SS, SC8473SE, SC8473 SS,  SC8473SE,

Cal Royal SC8473 US26D Extra H.D. Grade 1, Dormitory / Bedroom Mortise Lockset - Satin Chrome

SKU: SC8473

In Stock
Picture for manufacturer Cal-Royal
icon Chat

$267.27

Trim *

SS
SS
SE [+$21.37]
SE [+$21.37]

Cylinder *

Conventional Mortise Cylinder (Standard)
Conventional Mortise Cylinder (Standard)
IC - Mortise housing - For SFIC (Best) [+$25.56]
IC - Mortise housing - For SFIC (Best) [+$25.56]
ICSC - Mortise housing - For LFIC Schlage [+$26.15]
ICSC - Mortise housing - For LFIC Schlage [+$26.15]
ICCR - Mortise housing - For LFIC Corbin / Russwin [+$26.15]
ICCR - Mortise housing - For LFIC Corbin / Russwin [+$26.15]
ICSA - Mortise housing - For LFIC Sargent [+$26.15]
ICSA - Mortise housing - For LFIC Sargent [+$26.15]
ICYA - Mortise housing - For LFIC Yale [+$26.15]
ICYA - Mortise housing - For LFIC Yale [+$26.15]

About this item

**

Resources

Cal Royal SC8473 US26D Extra Heavy Duty Grade 1, Dormitory / Bedroom*Mortise Lockset - With Clutch Free-Wheeling - Satin Chrome*

For Trims Styles Click here

Function:* ANSI F21 -Dormitory / Bedroom -*Latch bolt retracted by knob or lever from either side. Deadbolt extended or retracted by key outside or thumb turn inside. Latch bolt and deadbolt are independent of each other.

For Doors:1 3/4" (44.5mm) thick standard.Lock Hand:Lock bodies are easily field reversible, no need to specify hand when ordering

Backset & Strike:2 3/4" (70mm) only backset. Brass or stainless steel strike; ANSI Standard A115.1; curve lip with dust box

Lock Case:Heavy Duty wrought steel, zinc dichromate plated

Center To Center:Center of lever to center of cylinder is 3 7 /8" (98mm)

Armor Faceplate:Brass or stainless steel; 8" x 1 7 /32" (203mm x 31.3mm); ANSI Standard A115.1

Deadbolt:1" (25.4mm) throw; hardened stainless steel

Latch Bolt:3/4" (19mm) throw; one-piece stainless steel with anti-friction reversible tongue

Cylinder & Keyways:6-pin solid brass "C" keyway standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

Interchangeable core (IC):Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW (SFIC). Also available with SCHLAGE,CORBIN / RUSSWIN D-1 thru 4, SARGENT LA , and YALE GA Large Format Cylinders.

Toggle Button:High rust-resistant chrome plated zinc alloy Warranty: Lifetime warranty

Model:Cal Royal SC8473 Extra Heavy Duty Grade 1, Closet / Storeroom with Deadbolt Mortise Lockset - With Clutch Free-Wheeling - Satin Chrome, SC8473SS, SC8473SE, SC8473 SS,  SC8473SE,

SC8473
Cal Royal SC8473 US26D Extra H.D. Grade 1, Dormitory / Bedroom Mortise Lockset - Satin Chrome

Product code: SC8473

In Stock

$267.27

$267.27

ANSI / BHMA -  Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards

UL / cUL  - UL and UL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate

POSITIVE PRESSURE - Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

ADA - Meets ADA requirements, specifically designed for Barrier Free Application

SC8473
Cal Royal SC8473 US26D Extra H.D. Grade 1, Dormitory / Bedroom Mortise Lockset - Satin Chrome

Product code: SC8473

In Stock

$267.27

$267.27
