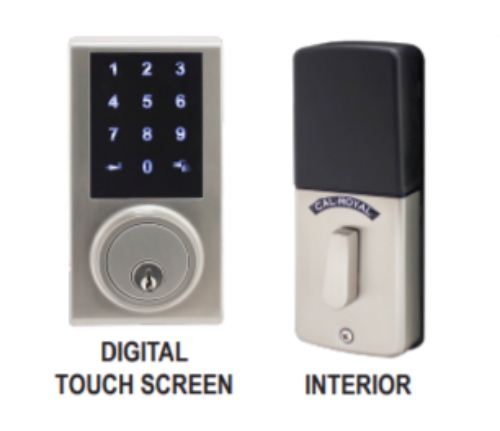

Cal-Royal ZWDB-10 Touch Screen Electronic Deadbolt

Cal-Royal ZWDB-10*Touch Screen Electronic Deadbolt*

Applications:For Residential and Standard Duty Commercial Applications

Door Ranges:1 3/8" (35mm) to 1 3/4" (45mm) Thickness

Material:Zinc Alloy and Steel

Backset:2 3/8" (60mm) or 2 3/4" (70mm) 2-Way Adjustable Backset

Latch Faceplate:1" (25.4mm) x 2 1/4" (57mm) Square Corner

Strikes:1" (25.4mm) x 2 1/4" (57mm) Square Corner Strike

Deadbolt:1" Throw High-Strength Deadbolt with Anti-Saw Pin

Power Supply:4 AA 1.5V Alkaline Batteries (comes standard in packing)

Door Preparation:1" (25.4mm) Diameter for Edge Bore 2 1/8" (54mm) Cross Bore

Dimensions: Exterior Trim: 5 1/4" (133mm) x 2 5 /8" (67mm) x 11/16" (23mm) Interior Trim: 7 7/16" (189mm) x 2 7/8" (73mm) x 1 1/8" (28mm)

Cylinder & Keyways:5-Pin, Kwikset KW1 Keyway

Finishes:US3 - Bright Brass US15 - Satin Nickel US26 - Bright Chrome US26D - Satin Chrome US12P - Tuscany Bronze

Model:Cal-Royal ZWDB-10, ZWDB-10US26D, ZWDB-10US26, ZWDB-10US3, ZWDB-10US15, ZWDB-10US12P,

Administrator Code - 1 group administrator password, 4-10 digits. It is used for managing all codes. Add / delete user?s code individually.

User Codes - this feature only opens the lock by entering the code on the touchpad. It can accommodate up to 30 sets of passcode, 4-10 digits.

Pre-Entry Codes - random pre-entry code prevents deciphering of user code. It is also useful to remove remaining fingerprint smudges and prevent exposure of password.

Disposable Code - one-time user code is available for temporary access.

Touch screen panel - this feature helps ease of operating in the dark. It is useful in making sure that every key pressed is successfully entered by an accompanying beep / tone.

Auto-Locking Function - when the door is unlocked, it automatically locks within just a few seconds for security and convenience.

Low Battery Warning - when voltage is lower than safety power, the low battery indicator will turn on until the low battery alarm goes off, then you have to change the batteries.

User Friendly Design - simplifies your access management.

Z-Wave Technology - it has a built-in 500 Series Z-WAVE module to connect with compatible controller / hub with gateway frequency of 908.4 MHz. By using an existing controller, you could use app and / or mobile phone to manage all compatible devices such as control lights, security systems, and home automation in one tap.

High-Strength Deadbolt - 1? throw high-strength deadbolt with anti-saw pin.

Deadbolt Detection - touchpad deadbolt with auto latch bolt locking detection prevents any incomplete door locking.

Non-Handed - ZWDB-10 Series can be installed for both left and right door opening.
