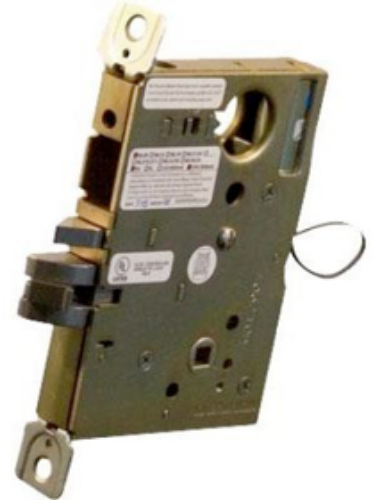

Command Access ML9080LBEU, ML9080 Lock Body, Fail Secure, Grade 1, 24V

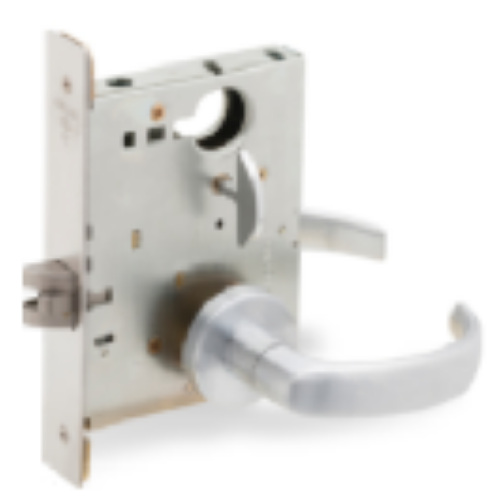

Command Access ML9080LBEU, ML9080 Lock Body, Fail Secure, Grade 1, 24V The electrified Schlage L9000 series mortise lock line allows for remote keyless access and egress control for heavy use applications where security and safety is critical. These locks may be purchased as complete locks, chassis only or as modifications only (add MD prefix for modification only of customers L9050 lock bodies). Along with the styles and Finishes listed, we offer multiple Functions and voltages to meet your requirements. Common applications include stairwell doors, lobby entrances, computer rooms, classrooms, interior and exterior doors.

ML180 - storeroom:(fail secure)Outside lever unlocked (EU) electronically.Latchbolt retracted by key outside or lever inside.Applied power allows outside lever to retract latchbolt.Inside lever is always free for immediate egress.Features: Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cyclePlug-in bridge rectifier that allows for an AC or DC power sourceLow current drawNo hassle 3-Year WarrantySpecifications: Operating Voltage - 12 or 24VAC/DC (+or- 10%)(must specify 12 or 24 volts when ordering)Amperage - 12V = 700 mA / 24V = 350 mASolenoid coil resistance - 12V = 18 Ω / 24V = 69 ΩPower consumption - 8 watts
