Exit Hardware
Exit Device Power Supply

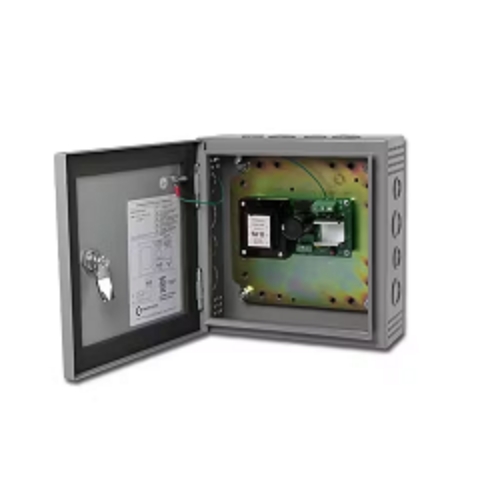

Command Access PS1, 1 Amp at 24VDC, Built to Run Up to 1 Locks, Exit Trim, & LP Motor/Soleniod kits

Command Access PS1, 1 Amp at 24VDC, Built to Run Up to 1 Locks, Exit Trim, & LP Motor/Soleniod kits

Product Details

Command Access PS1, 1 Amp at 24VDC, Built to Run Up to 1 Locks, Exit Trim, & LP Motor/Soleniod kits* PS1: BO Board Only to replace PS1 - 1A, 24V regulated power supply* *FEATURESLED's:- Red = A/C Power indicator- Green = D/C Output indicator- Orange = Battery Output IndicatorFeatures & Benefits:- Linear design insures ample inrush/hold current for latch retraction- Door mounted LED Power Indicator, Easy to remove euro connectors- Intelligent short circuit detectionMechanical Details:- Enclosure dimensions: PS1 (11" W x 11" H x4" D)- 1/2" & 3/4" knockouts on all sides- Hinge-less removable cover; Cam lock not provided- Product Weight: PS1 - 14 lbs- Shipment Weight: PS1 - 15 lbsElectrical:- Temperature range: 0 to 49" C; 32 to 120" F- Maximum humidity: 85%*

Command Access PS1, 1 Amp at 24VDC, Built to Run Up to 1 Locks, Exit Trim, & LP Motor/Soleniod kits

SKU: PS1

In Stock

Chat

$221.65

$310.00

You saved $88.35

About this item

PS1 - 110-120VAC input power supplies that deliver (1) amps @ 24VDC to (1) PTC fused outputs. (1) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid & motor driven exit devices, electric locks, electric strikes, and mag locks.

Resources

Catalog

Command Access PS1, 1 Amp at 24VDC, Built to Run Up to 1 Locks, Exit Trim, & LP Motor/Soleniod kits

Product code: PS1

In Stock

$310.00

$221.65

Input Voltage:- 120 VAC, 60 Hz,- Input Fuse: 2 Amp Fuse @ 250VACOutput Voltage:- 1A @ 24VDC- 1 Solid State I/O's - 1A auto resetting fusedoutputs- Over-voltage protection- Output Voltage trim potFire Alarm:- Fire alarm contacts can be wired in series with input trigger to achieve fire alarm disconnect.Listings:- UL294- CSA
