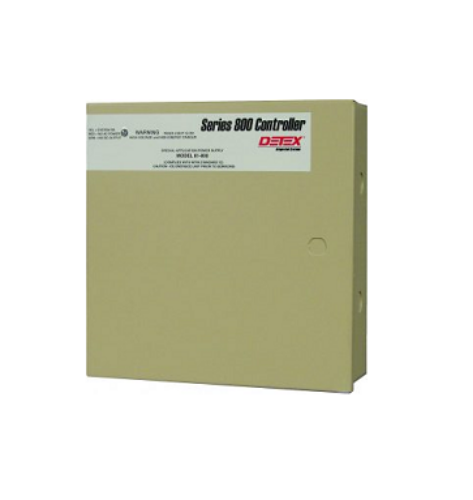

Detex 81-800 Series 800 Controller and Power Supply

Detex 81-800 Series 800 Controller and Power Supply, 1 Amp Continuous, Powers and Controls ER Device, for 1 Pair of Doors With Single Output,for 1 Operator

Logic / Power Supply - Latch Retraction

Controller and Power Supply - 1.0A continuous Powers and controls ER device for 1 door with signal output for 1 operator

Benefits

• Filtered and regulated 24VDC power protects circuitry from stray power surges and spikes

• While others require 2 amp power supplies for single door applications, Detex allows you to specify and supply the economical 81-800 for single door latch retraction applications

• The Series 800 products have been engineered to provide superior operation through design integration with all Detex electric latch retraction options

Electrical Options - M12 - 12 volt module provides 12VDC power

Features - 81-800 - 1 AMP continuous, controlling 1 Detex latch retraction (ER) device for 1 door  - 82-800 - 2 AMP continuous, controlling 2 Detex latch retraction (ER) devices for a pair of doors  - 83-800 - 2 AMP continuous, controlling 2 Detex latch retraction (ER) devices for 2 independent doors  - Battery charging circuit included standard (batteries sold separately) - see accessories - Design provides enough power to cycle Detex latch retraction motor, one time, even if power is lost while attempting to open the door and gain access  - 81-800, 82-800 and 83-800 have standard output used to signal automatic door operators

Accessories  - 70-24B - 24VDC 4 AMP hour battery pack

Detex 81-800,  Detex 81800, 81800, 81-800.

Mechanical Options  L - cover lock (cam style) & 2 keys
