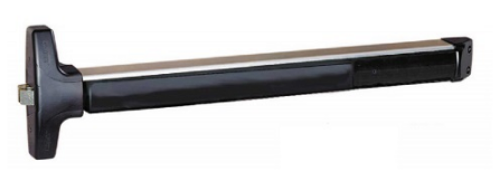

Detex FV40 LD 36, Fire Rated Rim Panic Exit Device - No Alarm - 36"

Product Details

Detex FV40 HD, Fire Rated Rim Exit Device  - No Alarm

36- Fits 36" Door Width 48- Fits 48" Door Width

3 Hours Fire Rated

Door Thickness: 1-3/4" - 2-1/4"

Finishes: 628 - Aluminum 711 - Black

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors.  For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

 LD - Less Dogging

Stainless steel, 3/4" deadlocking Pullman-type latch bolt 10 Year Mechanical - Limited Manufacturer's Warranty

Model:Detex, FV40LD, FV40LD628, FV40LD6289836, FV40LD6289848, FV40LD6289936, FV40 LD 6289948,

Detex FV40 LD 36, Fire Rated Rim Panic Exit Device - No Alarm - 36"

SKU: FV40LD

In Stock

Size *

Finish *

628 - Aluminum Finish
628 - Aluminum Finish
711-Black
711-Black

Strike *

99 - Surface Strike (Std.)
99 - Surface Strike (Std.)

Option *

$441.18

About this item

The V40 Series Rim Exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Detex FV40 HD, Fire Rated Rim Exit Device  - No Alarm

36- Fits 36" Door Width 48- Fits 48" Door Width

3 Hours Fire Rated

Door Thickness: 1-3/4" - 2-1/4"

Finishes: 628 - Aluminum 711 - Black

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors.  For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

 LD - Less Dogging

Stainless steel, 3/4" deadlocking Pullman-type latch bolt 10 Year Mechanical - Limited Manufacturer's Warranty

Model:Detex, FV40LD, FV40LD628, FV40LD6289836, FV40LD6289848, FV40LD6289936, FV40 LD 6289948,

DetexFV40LD
Detex FV40 LD 36, Fire Rated Rim Panic Exit Device - No Alarm - 36"

Product code: FV40LD

In Stock

$680.00

$441.18

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of?  4'x8' with F90KR keyed removable Mullion

Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02

State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall -4140-0127:105 and 3725-0127:108

DetexFV40LD
Detex FV40 LD 36, Fire Rated Rim Panic Exit Device - No Alarm - 36"

Product code: FV40LD

In Stock

$680.00

$441.18

Parts & Accessories

D_03P
Detex 03P Pull Trim

Product code: W561BD

In Stock
$119.00

$74.10

D_03PN
Detex 03PN Pull Trim

Product code: W561BD

In Stock
$119.00

$74.10

D_08BN
Detex 08BN Entry Lever Trim

Product code: W561BD

In Stock
$372.00

$229.14

D_08BN
Detex 09BN Storeroom Lever Trim

Product code: W561BD

In Stock
$372.00

$229.14

D_14BN
Detex 14BN Passage Lever Trim

Product code: W561BD

In Stock
$372.00

$229.14

nopicture
Detex NSK Narrow Stile Door Kit for Value Series Device

Product code: W561BD

In Stock
$118.00

$99.06

02a
Detex 02A 689 Dummy Pull Trim - 3 1/2" x 13 1/2"

Product code: W561BD

In Stock
$135.00

$80.94

02an
Detex 02AN 689 Dummy Pull Trim - 1 7/8" x 13 1/2"

Product code: W561BD

In Stock
$135.00

$80.94

03a
Detex 03A 689 Nightlatch Pull Trim - 3 1/2" x 13 1/2"

Product code: W561BD

In Stock
$135.00

$80.94

03an
Detex 03AN 689 Nightlatch Pull Trim - 1 7/8" x 13 1/2"

Product code: W561BD

In Stock
$135.00

$80.94

v40hd

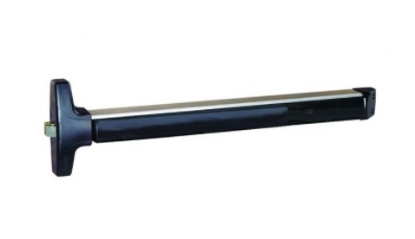

Detex V40 LD, Rim Panic Exit Device Less Dogging - No Alarm

Product code: W561BD

In Stock
$530.00

$327.18
