Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging

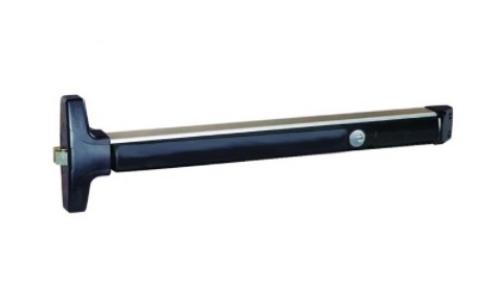

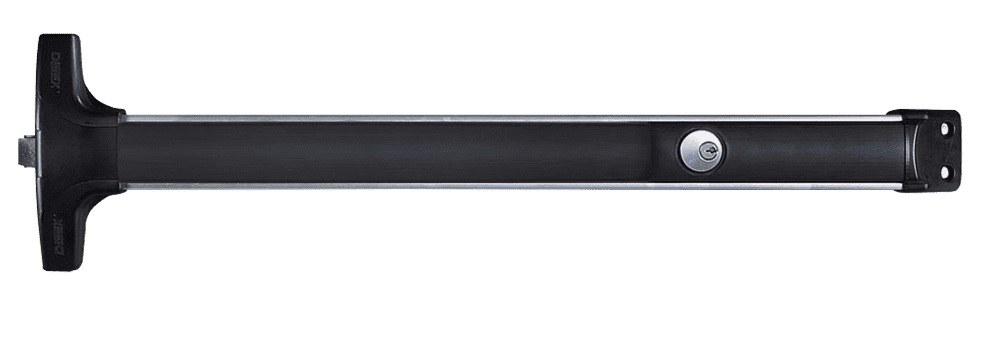

Picture of Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging

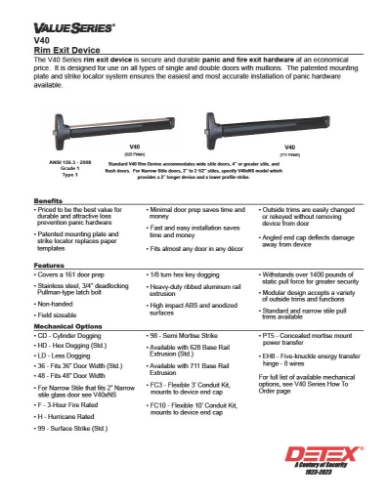

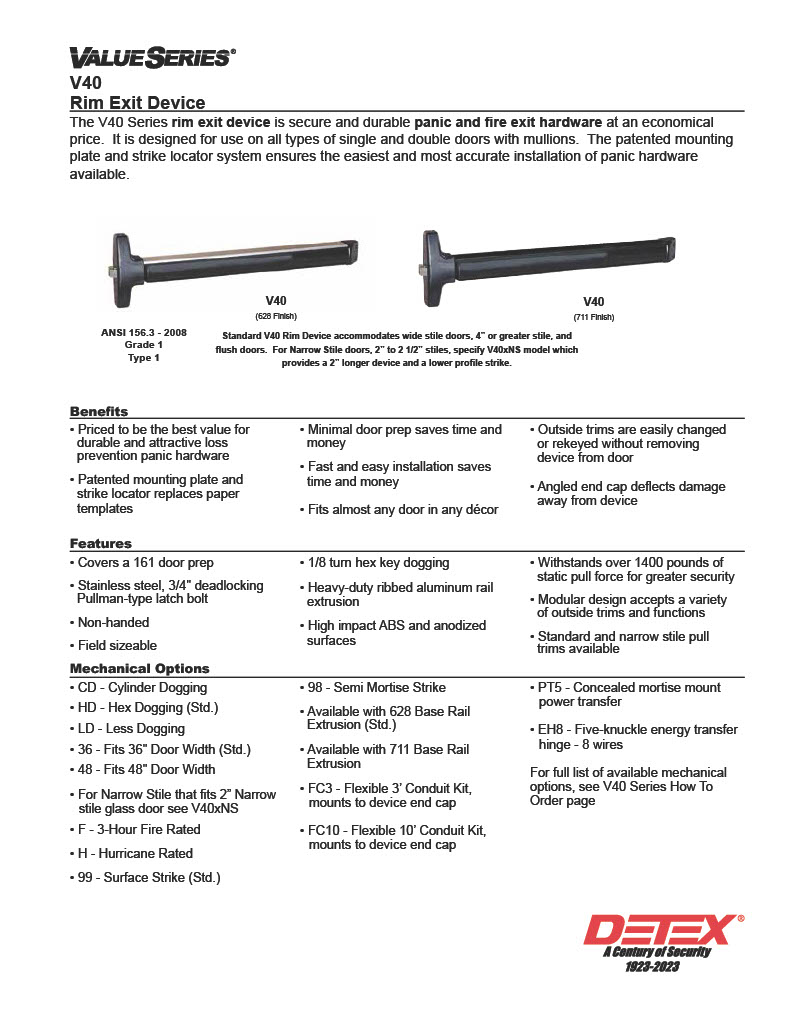

1-Page1-V40

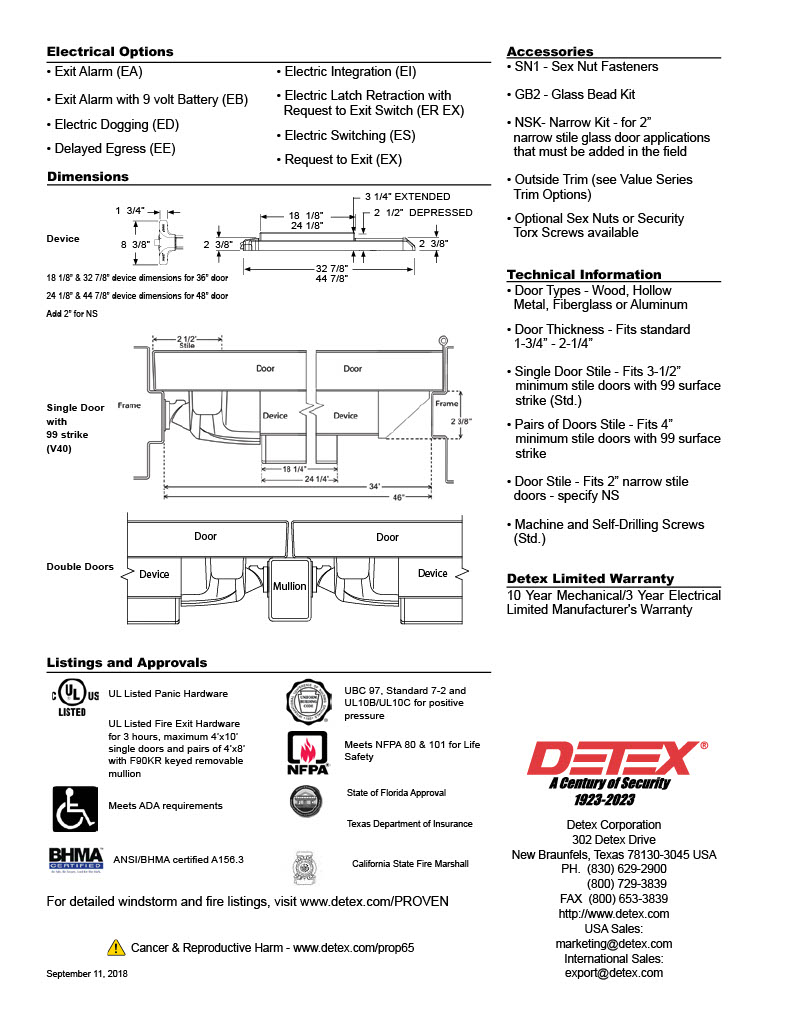

1-Page2-V40
Picture of Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging
1-Page1-V40
1-Page2-V40
naxt
prev

Product Details

Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging

Trims For the V40 series are:

01P, 01PN, 02A, 02AN, 02WP, 03P, 03PN, 03CN, 03WS, 03A, 03AN, 02BN, 08BN, 09BN, 14BN

36 - Fits 36" Door Width 48- Fits 48" Door Width

Door Thickness: 1-3/4" - 2-1/4"

Finishes: 628 - Aluminum, 711 - Black

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors.  For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners: Machine and Self-Drilling Screws

CD - Cylinder Dogging, Mortise 1-1/8" cylinder (sold separate)

Stainless steel, 3/4" deadlocking Pullman-type latch bolt10 Year Mechanical - Limited Manufacturer's Warranty

Model: Detex, V40CD, V40CD628, V40CD711, V40CD6289836, V40CD6289848, V40CD6289936, V40 CD 6289948, V40CD711, V40CD7119836, V40CD7119936, V40CD7119948

Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging

SKU: V40 CD

In Stock

$356.82

Size *

Finish *

628 - Aluminum Finish
628 - Aluminum Finish
711 - Black Finish
711 - Black Finish

Strike *

99 - Surface Strike (Std.)
99 - Surface Strike (Std.)

Cylinder *

Option *

About this item

The V40 Series Rim Exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging

Trims For the V40 series are:

01P, 01PN, 02A, 02AN, 02WP, 03P, 03PN, 03CN, 03WS, 03A, 03AN, 02BN, 08BN, 09BN, 14BN

36 - Fits 36" Door Width 48- Fits 48" Door Width

Door Thickness: 1-3/4" - 2-1/4"

Finishes: 628 - Aluminum, 711 - Black

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors.  For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners: Machine and Self-Drilling Screws

CD - Cylinder Dogging, Mortise 1-1/8" cylinder (sold separate)

Stainless steel, 3/4" deadlocking Pullman-type latch bolt10 Year Mechanical - Limited Manufacturer's Warranty

Model: Detex, V40CD, V40CD628, V40CD711, V40CD6289836, V40CD6289848, V40CD6289936, V40 CD 6289948, V40CD711, V40CD7119836, V40CD7119936, V40CD7119948

Picture of Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging
Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging

Product code: V40 CD

In Stock

$356.82

$356.82

UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of  4'x8' with F90KR keyed removable Mullion

Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02

State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall -4140-0127:105 and 3725-0127:108

Picture of Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging
Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging

Product code: V40 CD

In Stock

$356.82

$356.82

Detex V40 CD, Value Series Wide Stile Rim Exit Device, Cylinder Dogging

SKU: V40 CD
