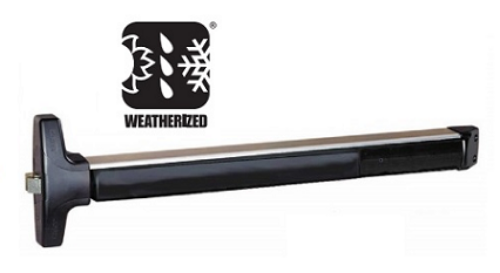

Detex V40W HD 628/711, Weatherized Rim Panic Exit Device w/ Hex Key Dogging - Aluminum / Black

The Detex V40W HD is the weatherized, hex-key-dogging configuration of Detex's V40 Value Series rim exit device ANSI/BHMA A156.3 Grade 1, UL listed panic hardware, wide stile pushpad, 3/4-inch deadlocking stainless steel Pullman latch bolt, over 1,400 lbs of static pull force resistance, and verified against military weatherization standards for driving rain, salt fog, temperature extremes, and dust. American Locksets stock the V40W HD.

V40W vs V40 vs V40xW: Clearing Up the Model Name

The V40W and V40xW refer to the same device. "V40xW" is Detex's catalog notation; the "x" is a placeholder indicating the position where optional suffixes (like EB for battery alarm) are inserted. When you see "V40W" without any suffix between the model number and the W, you're looking at the standard no-alarm weatherized version. The "HD" suffix designates Hex Key Dogging a hex wrench holds the latch retracted during business hours so traffic can flow freely without repeated code entry or key use. The non-dogging version omits the HD suffix.

If you're searching "detex v40" and landed here: the standard V40 (non-weatherized) is the indoor version. The V40W/V40xW is the exterior-rated variant. If your door sees any weather exposure, rain splash, humidity, coastal salt air the V40W is the correct specification.

What Makes It Weatherized: The Standards Behind the Rating

Most panic hardware manufacturers claim "weatherized" or "outdoor rated" with no supporting data. Detex publishes the specific testing standards the V40xW platform passes:

UL1034-34 Temperature Section 34: Functional operation across extreme temperatures.

UL1034-54 Dust Section 54: Dust ingress resistance verified to UL 1034 standards.

MIL-STD 810F Method 506.4 (Driving Rain Test): Military-grade driving rain exposure test. The device must function correctly during and after sustained direct water impingement from multiple angles at specified wind speeds.

MIL-STD 810F Method 509.4 (Salt Fog Test): Salt spray exposure for corrosion resistance the relevant standard for coastal, marine, pool deck, and high-humidity chemical environments.

UBC Standard 7-2 / UL10C Positive Pressure: Required for fire door applications where positive pressure builds on the fire side of the door.

Those aren't typical hardware certifications. MIL-STD 810F is the benchmark U.S. military uses for equipment that has to survive field conditions. If the V40W passes it, it handles what most commercial exterior door installations throw at it.

Hex Key Dogging: What HD Means Operationally

The hex key dogging feature allows the latch bolt to be held in the retracted position by inserting an Allen wrench (hex key) into the dogging hole on the device and turning it a quarter turn. The door becomes free-swinging; it pushes open without triggering the panic mechanism. Turn the hex key back and the spring-loaded latch returns to the extended, locked position. This is the correct configuration for exterior commercial entries that need controlled access security overnight but free flow during business hours without installing electric dogging or a separate operator.

No alarm activates during dogged operation on the V40W HD; it's the non-alarm model. If your application needs an alarm when the latch is breached, specify the V40W EB (9V battery alarm) or V40W EH (hardwired 24VDC alarm) variant instead.

Specifications

Model: Detex V40W HD (V40xW HD)

Series: Value Series Weatherized Rim Exit Device

Function: Exit only. Hex key dogging. No alarm.

Pushpad: Wide stile

Latchbolt: Stainless steel, 3/4" throw, deadlocking Pullman-type

Bar Construction: Heavy-duty ribbed aluminum rail extrusion

Static Pull Force: Over 1,400 lbs

Bar Lengths: 36" (for 36" door opening), 48" (for 48" door opening)

Door Thickness: 1-3/4" to 2-1/4"

Door Types: Single and double doors with mullion. Wood, hollow metal, fiberglass, aluminum.

Handing: Non-handed

Strike: 99 surface strike standard (fits 2-1/2" stile doors)

Mounting: Patented mounting plate and strike locator system. Machine and self-drilling screws included.

Weatherization Certifications: UL1034-34 (Temperature), UL1034-54 (Dust), MIL-STD 810F Method 506.4 (Driving Rain), MIL-STD 810F Method 509.4 (Salt Fog), UBC Standard 7-2 Positive Pressure

UL: UL listed panic hardware. ANSI/BHMA A156.3 Grade 1. ADA compliant.

Fire Rated: No non-fire-rated. Fire-rated model available (FL prefix).

Finishes: 628 (satin aluminum, clear anodized), 711 (satin black anodized aluminum)

Options: EB (9V battery alarm), EBxW (weatherized alarm), ED (electric dogging), EH (hardwired 24VDC alarm), EHR (remote signal alarm), ER (electric latch retraction), EE (delayed egress), EM (delayed egress with maglock), EI (electric integration)

American Locksets has stocked Detex Value Series exit hardware since 2001.
