Detex VRA-143B-84 Vertical Rod Assembly used with ECL230D Exit Control Lock - 84"

About this item

Detex VRA-143B Vertical Rod Assembly used with ECL230D Exit Control Lock For 84" Doors

ECL-230D Exit Control Lock device sold separately.

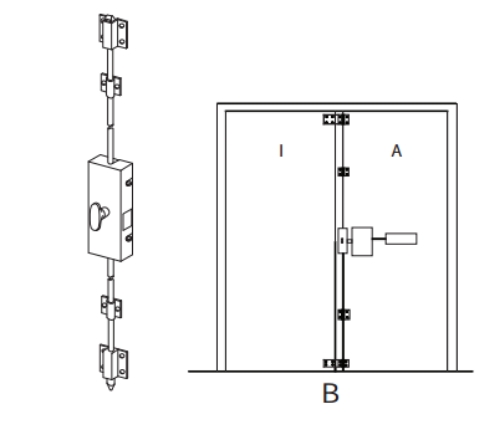

Application: Active Leaf Opens Both Doors Includes one Vertical Rod Assembly for active leaf and two overlapping plates for inactive leaf

A Vertical Rod Assembly (VRA) is used with a Detex Exit Control Lock (ECL-230D) to provide exit control security on outswinging double doors. In addition it may be used on a single door installation to provide top and bottom latching instead of the single point latching provided by the Exit Control Lock itself.

Benefits

• 2 point locking provides extra security

• Surface applied - no mortise required for easy installation

• Automatically released when the ECL-230 device is activated

Features

• Heavy duty 3/8" diameter bolts

• Non-handed

model: VRA-143B, VRA143B, VRA 143B,  VRA143-B
