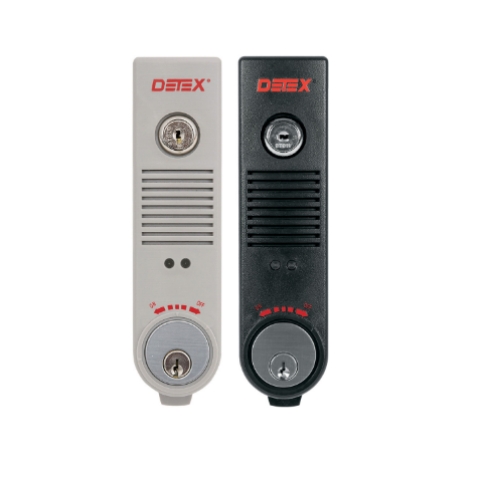

Detex EAX-500SK1 BLACK Exit Alarm, Surface Mount, Battery Powered, One MS-1039S Magnetic Switch, Black

Detex EAX-500SK1 BLACK Exit Alarm, Surface Mount, Battery Powered, One MS-1039S Magnetic Switch, Black

Low cost, self-contained door alarm with piezo horn that sounds to warn unauthorized use of a door or gate

Field selectable 2-minute auto rearm, if desired

100 dB piezo alarm

9VDC battery operated with Low Battery Alert

Secure, tamper resistant housing

Tapered cover allows for installation on narrow stile doors, 2" minimum

Alarm can only be silenced by proper control key

Extended bypass (now a standard feature) allows alarm to remain bypassed when door is open and automatically rearm upon door closing

Field selectable status indicators, if desired

3 Year Limited Manufacturer's Warranty

Detex MS-1039S / MS-1059S Economical Surface Mounted Magnetic Switch

Benefits

- Anti-Tamper Design

- Serves as a trigger for alarms or remote monitors

• Provides assurance that protected doors are under surveillance

• Simple Installation

- BMS - Balanced Magnetic Switch provides improved security

Features

- Polarity selection is non-critical

- Durable Magnet

- Color selection white/brown

- Wide range of alarm and signal applications

Technical Information

- Surface switches have Max. Contact rating 30VDC @ 250mA

- For use on steel, aluminum or wood doors and frames

• Overhead (preferred) or latch-stile mounting available for all models

- Switch - single pole, single throw (SPST)

- Normally closed contact

Detex Limited Warranty

3 Years Limited Manufacturers Warranty

Models: Detex EAX500SK1, EAX-500SK1, EAX500SK1-GY, EAX500SK1-BK, EAX500SK1-Gray, EAX500SK1-Black

Patented plastic template allows for foolproof alignment of internal magnetic door contact and accurate installation

Intelligent circuit senses the external magnet location automatically and sets the correct door handing

Packed with Machine and Self-Drilling Screws
