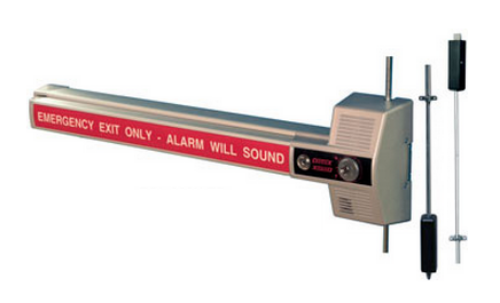

Detex ECL-230X-TB Alarmed Dead Bolt Panic Device - Two-Point Locking

Detex ECL-230X-TB Alarmed Dead Bolt Panic Device - Two-Point Locking (Top And Bottom Bolts)

 84" - Fits 6’8" to 7’ doorBenefits Attack resistant design for maximum holding force - Proven durability and reliability at a reasonable price Easy to install  - Supplied With 9 Volt Battery Reduces employee and customer theft  - Time tested construction resists attack from the inside One size fits 36"-48" doors for code compliant acceptance - Easy to see if the lights go out Straightforward operation that everyone understandsFeatures 2-point, 3/4" throw top and bottom locks with just over 5/8" engagement with the strike  - Saw resistant dead bolt Corrosion resistant alloy lock body - 100 decibel alarm, powered by 9-volt battery (included) Surface/flush reversible strike  - Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders without using cylinder collar Durable photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed  - Locking and unlocking (dead bolt) always arms and disarms the alarm Non-handed  - Low profile meets International Building Code requirement allowing for 4" maximum projection off face of door  Resetting the alarm can only be accomplished with a control key  - For 9VDC hardwiring use BE-961-1 or BE-961-2see belowDetex Limited Warranty

10 Year Limited Manufacturers Warranty

Model:Detex ECL-230X-TB, ECL 230X-TB, ECL230X-TB, ECL230XTB, ECL 230X TB,

 ECL230X TB

Mechanical Options

• Gray Finish (Std.) Note: Contact factory for additional finishes   H - Hurricane Rated

• 30 - Fits 30" wide door  - English Push Plate Sign (Std.)

• RWS - Spanish Sign  - Other Languages available (call factory for details

• DX1 - Add hinge side protection with one hinge bolt for 2 locking points (3/4" frame engagement)see below

Technical Information

• Door Types - Wood, Hollow Metal  - Door Thickness - Fits standard 1-3/4" - 2-1/4"

• Standard Device fits 36"-48" door

• Machine and Sheet Metal Screws (Std.)

Listings and Approvals

UL Listed Panic Hardware 988N-Grade 2

 Meets ADA requirements

 ANSI/BHMA requirements for all Building Codes

 Meets NFPA 101 for Life Safety, CA Title 19

 California State Fire Marshall - 4140-0127:102

Meets International Building Code
