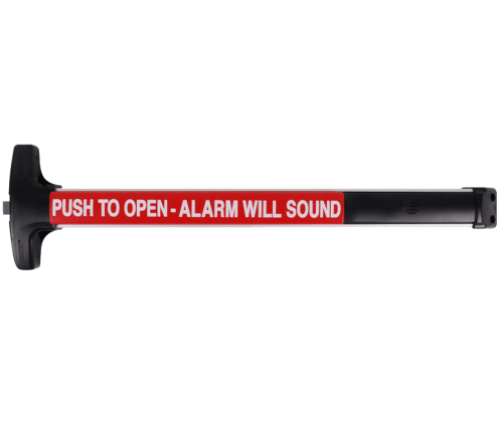

Detex FV40 EB LD, Fire Rated Battery Powered Alarmed Rim Exit Device

V40 EB LD
1-Page1-VALUE-EB
1-Page2-VALUE-EB
V40 EB LD
1-Page1-VALUE-EB
1-Page2-VALUE-EB
naxt
prev

Product Details

Detex FV40 EB LD, Fire Rated Battery Powered Alarmed Rim Exit Device

Exit Alarm (EB) - Battery Powered - Available on all VS Devices Standard Package Includes: - Switch monitors pushpad movement and triggers alarm - Green & Red LED, cylinder arming, 9-volt battery and piezo horn - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only) - Pushpad Signage "Push to Open Alarm Will Sound"

36- Fits 36" Door Width 48- Fits 48" Door Width

3 Hours Fire Rated

Powered by standard, 9-volt battery

Door Thickness: 1-3/4" - 2-1/4"

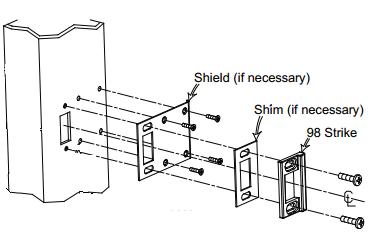

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

(LD) Less Dogging

Stainless steel, 3/4" deadlocking Pullman-type latch boltSingle mortise 1-1/8" cylinder (sold separate) provides arming and dogging - 1/8 turn cylinder dogging

Field selectable key rearm or 2 min. auto rearm

Visual and audible arming indicators

Armed and disarmed field selectable status indicator

100+ Decibel alarm

10 Year Mechanical/3 Year Electrical  - Limited Manufacturer's Warranty

Model:Detex, FV40EB, FV40xEB, V40EBLD, FV40EBLD628, V40EBLD6289836, V40EBLD6289848, FV40EBLD6289936, FV40 EB LD6289948

Detex FV40 EB LD, Fire Rated Battery Powered Alarmed Rim Exit Device

SKU: FV40EBLD

In Stock
icon Chat
Picture for manufacturer Detex

Size *

Finish *

628 - Satin Aluminum
628 - Satin Aluminum
711-Black
711-Black

Strike *

99 - Surface Strike (Std.)
99 - Surface Strike (Std.)
98 - Semi Mortise Strike
98 - Semi Mortise Strike

Option *

$572.85

$893.00

You saved $320.15

About this item

The FV40xEB/EH is designed for primary and secondary exits that require an alarmed panic device. The 100dB alarm will sound when someone attempts to exit, alerting management to the unauthorized exit. Available in various configurations, the V40xEB provides security while meeting all life safety concerns, offering an exceptional value.

Resources

Detex FV40 EB LD, Fire Rated Battery Powered Alarmed Rim Exit Device

Exit Alarm (EB) - Battery Powered - Available on all VS Devices Standard Package Includes: - Switch monitors pushpad movement and triggers alarm - Green & Red LED, cylinder arming, 9-volt battery and piezo horn - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only) - Pushpad Signage "Push to Open Alarm Will Sound"

36- Fits 36" Door Width 48- Fits 48" Door Width

3 Hours Fire Rated

Powered by standard, 9-volt battery

Door Thickness: 1-3/4" - 2-1/4"

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

(LD) Less Dogging

Stainless steel, 3/4" deadlocking Pullman-type latch boltSingle mortise 1-1/8" cylinder (sold separate) provides arming and dogging - 1/8 turn cylinder dogging

Field selectable key rearm or 2 min. auto rearm

Visual and audible arming indicators

Armed and disarmed field selectable status indicator

100+ Decibel alarm

10 Year Mechanical/3 Year Electrical  - Limited Manufacturer's Warranty

Model:Detex, FV40EB, FV40xEB, V40EBLD, FV40EBLD628, V40EBLD6289836, V40EBLD6289848, FV40EBLD6289936, FV40 EB LD6289948

V40 EB LD
Detex FV40 EB LD, Fire Rated Battery Powered Alarmed Rim Exit Device

Product code: FV40EBLD

In Stock

$893.00

$572.85

UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of  4'x8' with F90KR keyed removable Mullion

Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02

State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall -4140-0127:105 and 3725-0127:108

V40 EB LD
Detex FV40 EB LD, Fire Rated Battery Powered Alarmed Rim Exit Device

Product code: FV40EBLD

In Stock

$893.00

$572.85

Related products

Screenshot 2024-08-27 152213
Detex ECL-230D UL-Listed Panic Hardware Exit Control Lock

Product code: W561BD

In Stock
$477.00

$294.12

ECL-230D-PH
Detex ECL-230D-PH Alarm Exit Control Lock, Long Bar

Product code: W561BD

In Stock
$549.00

$261.36

Detex EAX-500
Detex EAX-500 Battery Powered Door Exit Alarm

Product code: W561BD

In Stock
$308.00

$204.06

EAX-500WW
Detex EAX-500W Weatherized Door Exit Alarm

Product code: W561BD

In Stock
$443.00

$289.56

V40 EA CD
Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device

Product code: W561BD

In Stock
$743.00

$458.85

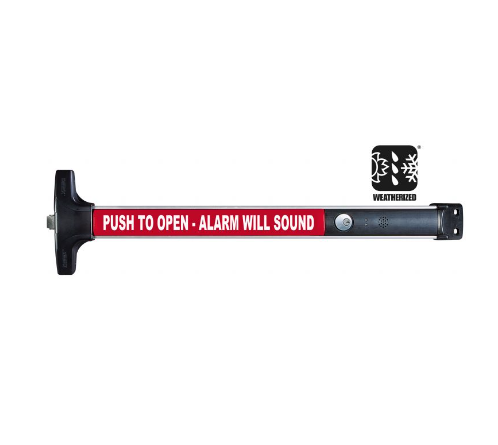

Detex V40 EB W CD
