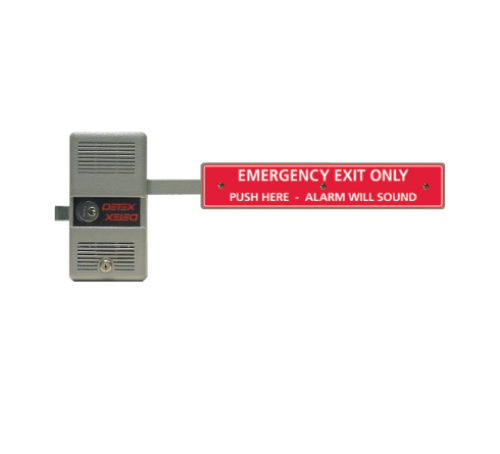

Detex ECL-230D-PH Alarm Exit Control Lock, Long Bar

Product Details

ECL230D Features

Attack resistant design withstands over 2200 lbs. of outside pull force

Easy to see if the lights go out

Single Point 1" throw dead bolt

Saw resistantat dead bolt

Corrosion resistant allow lock body

100 decibel alarm, powered by 9-volt battery (included)

Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders

Durable steel plate with photo luminescent sign absorbs light to then "glow in the dark" when lights are dimmed

Non-handed

Locking and unlocking the dead bolt always arms and disarms the alarm

Resetting the alarm can only be accomplished with a control key

10 Year Limited Manufacturers Warranty

Models: ECL230DPH, ECL-230D-PH, ECL 230D PH, ECL 230D-PH

Detex ECL-230D-PH Alarm Exit Control Lock, Long Bar

SKU: ECL230DPH

In Stock

Finish *

Cylinder *

Keying *

$261.36

$549.00

You saved $287.64

About this item

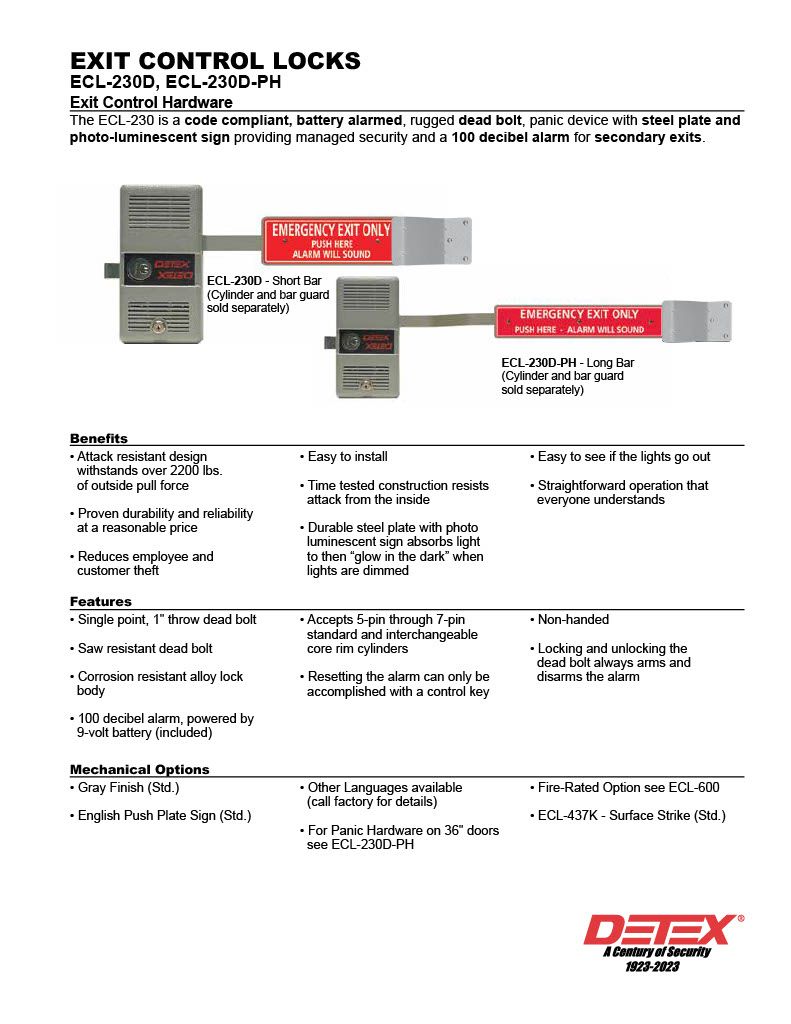

The ECL-230D is a code compliant, battery alarmed, rugged dead bolt, panic device with steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits.

ECL230D Features

Attack resistant design withstands over 2200 lbs. of outside pull force

Easy to see if the lights go out

Single Point 1" throw dead bolt

Saw resistantat dead bolt

Corrosion resistant allow lock body

100 decibel alarm, powered by 9-volt battery (included)

Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders

Durable steel plate with photo luminescent sign absorbs light to then "glow in the dark" when lights are dimmed

Non-handed

Locking and unlocking the dead bolt always arms and disarms the alarm

Resetting the alarm can only be accomplished with a control key

10 Year Limited Manufacturers Warranty

Models: ECL230DPH, ECL-230D-PH, ECL 230D PH, ECL 230D-PH

ECL-230D-PH
Detex ECL-230D-PH Alarm Exit Control Lock, Long Bar

Product code: ECL230DPH

In Stock

$549.00

$261.36

Technical Information

Door Types - Wood, Hollow Metal or Aluminum

Door Thickness - Fits standard 1-3/4" - 2-1/4"

Minimum standard door width is 34"

Door Stile - Fits minimum 5-3/4"

Door Stile - Fits minimum 1-7/8" with optional ECL-475 Kit

Machine and Sheet Metal Screws

Listings and Approvals

UL Listed Panic Hardware 988N-Grade 3

Meets ADA requirements

Meets NFPA 101 for Life Safety, CA Title 19 & ANSI/BHMA requirements for all Building Codes

California State Fire Marshall - 4140-0127:102

ECL-230D-PH
Detex ECL-230D-PH Alarm Exit Control Lock, Long Bar

Product code: ECL230DPH

In Stock

$549.00

$261.36

Related products

Screenshot 2024-08-27 152213
Detex ECL-230D UL-Listed Panic Hardware Exit Control Lock

Product code: W561BD

In Stock
$477.00

$294.12

ECL-230D-PH
Detex ECL-230D-PH Alarm Exit Control Lock, Long Bar

Product code: W561BD

In Stock
$549.00

$261.36

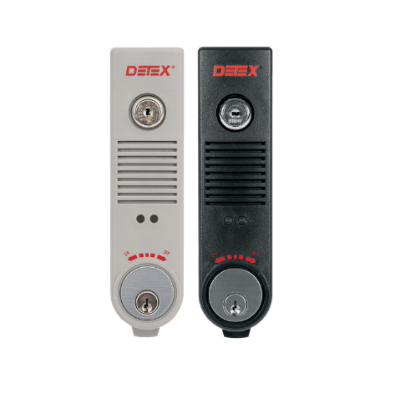

Detex EAX-500
Detex EAX-500 Battery Powered Door Exit Alarm

Product code: W561BD

In Stock
$308.00

$204.06

EAX-500WW
Detex EAX-500W Weatherized Door Exit Alarm

Product code: W561BD

In Stock
$443.00

$289.56

V40 EA CD
Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device

Product code: W561BD

In Stock
$743.00

$458.85

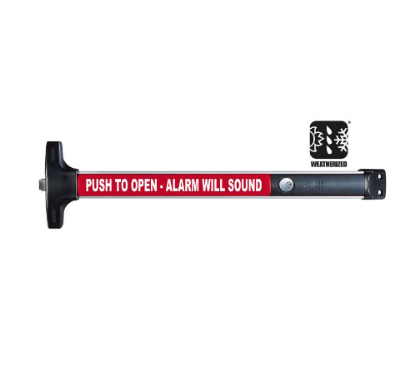

Detex V40 EB W CD
Detex V40 EB W CD, Battery Powered Alarmed Weatherized Rim Exit Device

Product code: W561BD

In Stock
$1,142.00

$713.64

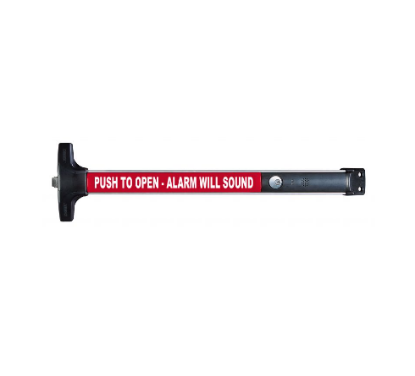

V40 EA CD
