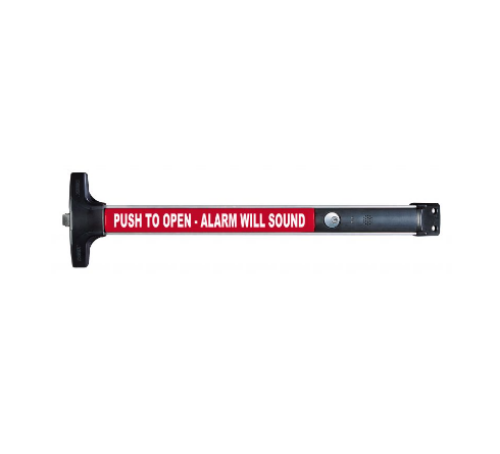

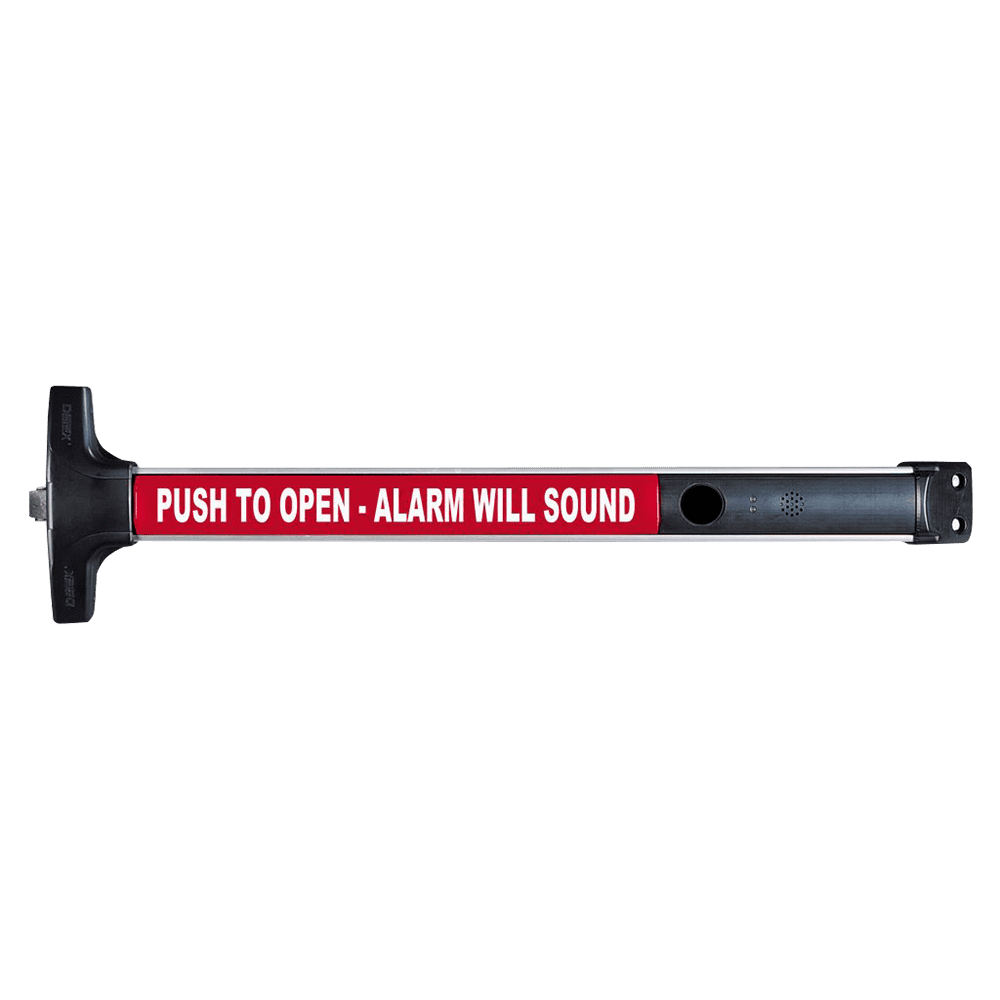

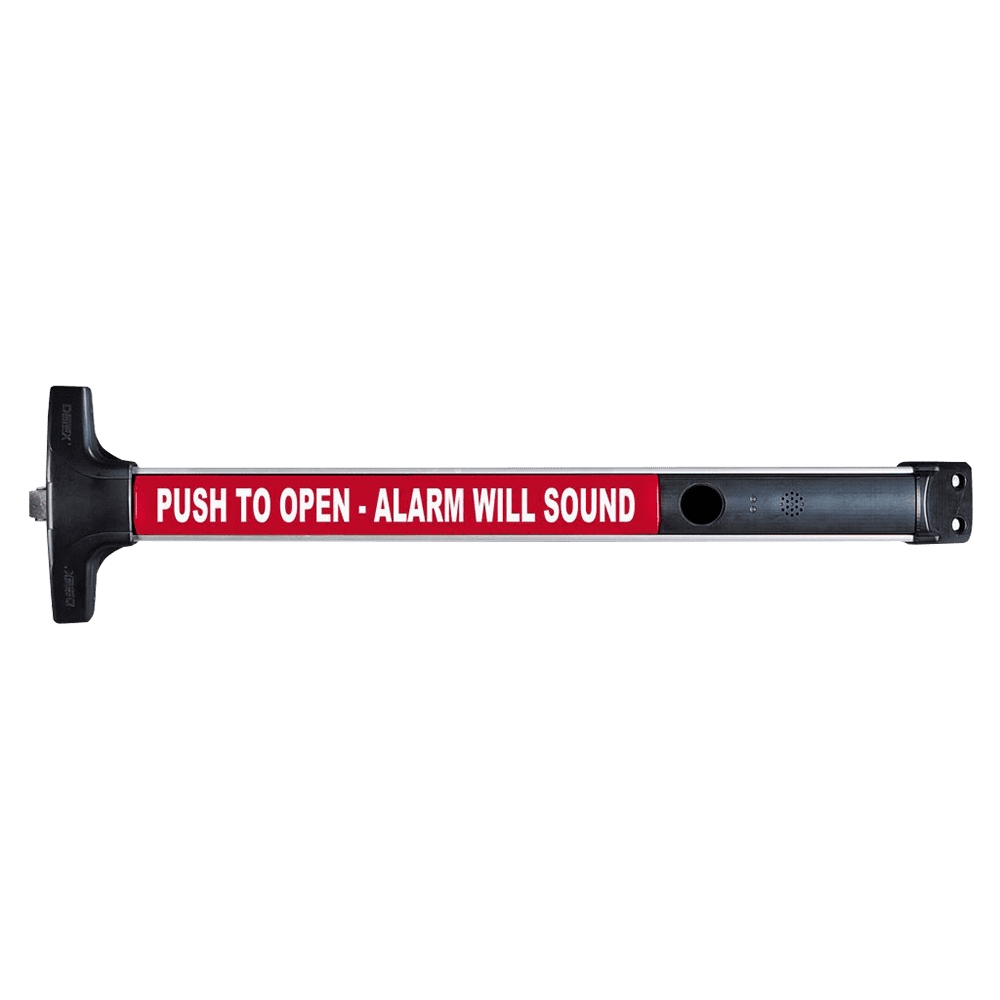

Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device

Product Details

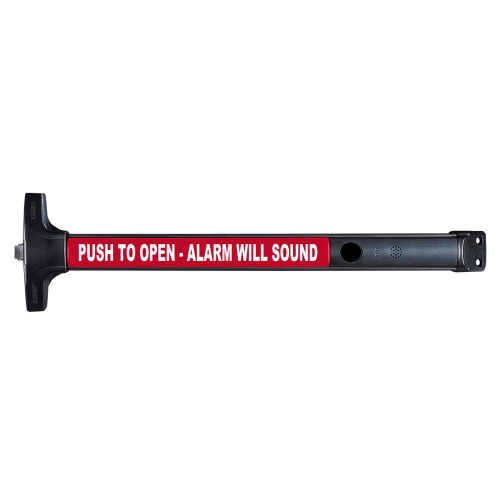

Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device

EB- Exit Alarm - Battery Powered

Standard Package Includes: - Switch monitors pushpad movement and triggers alarm - Green & Red LED, cylinder arming, 9-volt battery and piezo horn - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only). - Pushpad Signage "Push to Open Alarm Will Sound"

Trims For the V40 series are: *01P01PN, 02A02AN02WP03P03PN03CN03WS03A03AN02BN08BN, 09BN14BN.*

36- Fits 36" Door Width 48- Fits 48" Door Width

Powered by standard, 9-volt battery

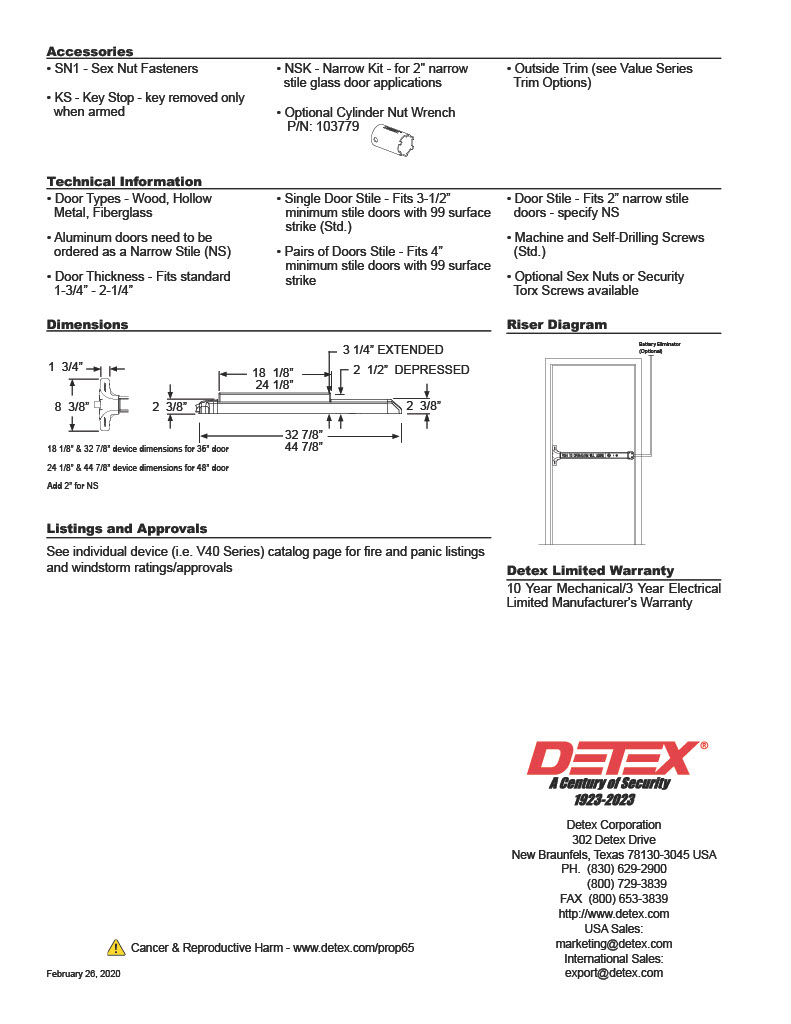

Door Thickness: 1-3/4" - 2-1/4"

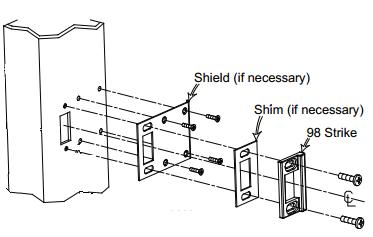

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

Cylinder Dogging (CD) Standard

Stainless steel, 3/4" deadlocking Pullman-type latch boltSingle mortise 1-1/8" cylinder (sold separate) provides arming and dogging - 1/8 turn cylinder dogging

Field selectable key rearm or 2 min. auto rearm

Visual and audible arming indicators

Armed and disarmed field selectable status indicator

100+ Decibel alarm

10 Year Mechanical/3 Year Electrical  - Limited Manufacturer's Warranty

Model:Detex, V40EB, V40xEB, V40EBCD, V40EBCD628, V40EBCD6289836, V40EBCD6289848, V40EBCD6289936, V40 EB CD6289948, V40EBCD711, V40EBCD7119836, V40EBCD7119848, V40EBCD7119936, V40EBCD7119948

Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device

SKU: V40EBCD

In Stock

Cylinder *

Size *

Finish *

628 - Satin Aluminum
628 - Satin Aluminum

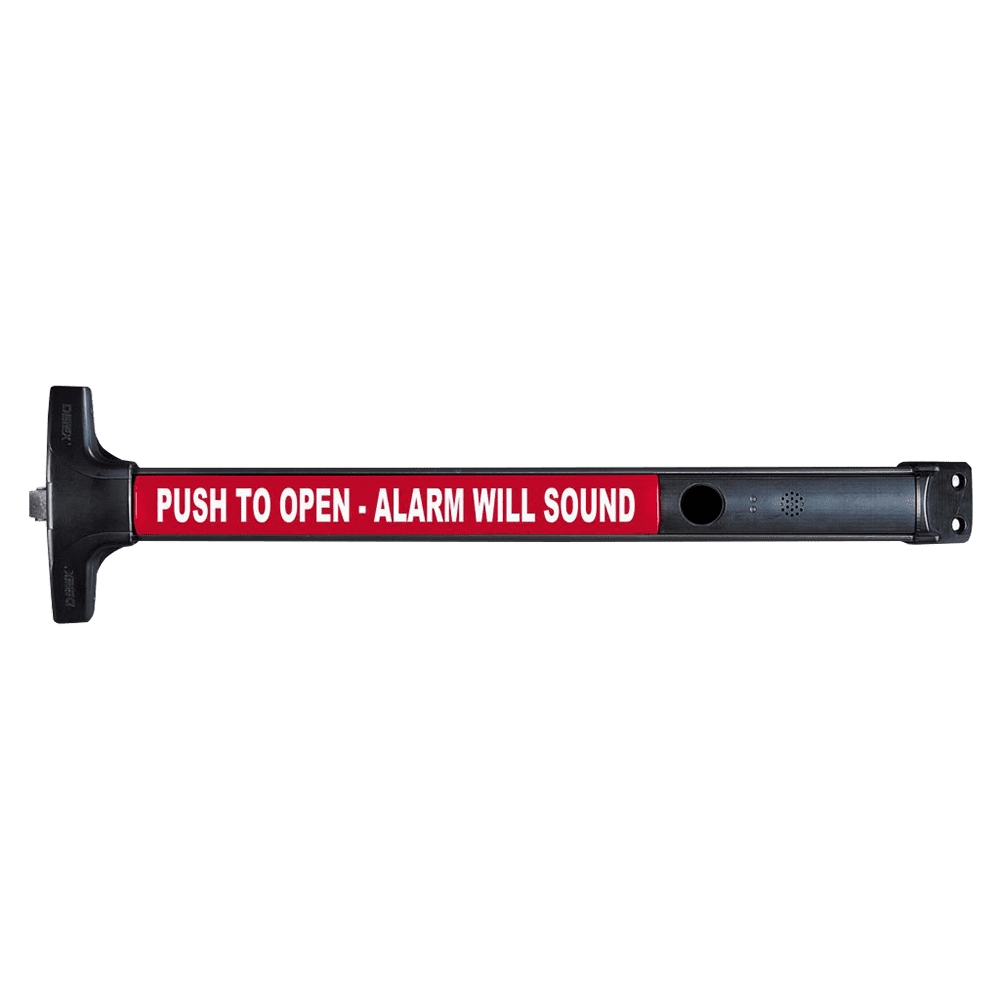

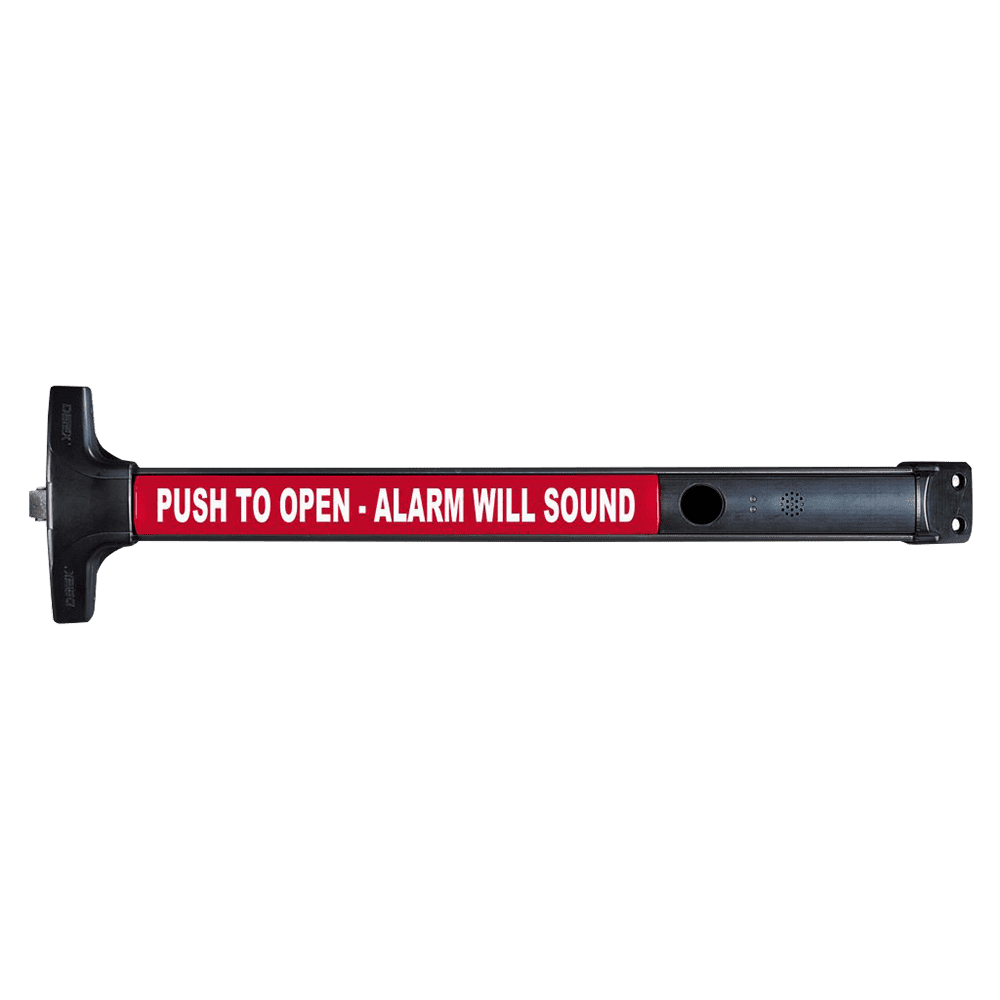

711 - Black Anodized Aluminum
711 - Black Anodized Aluminum

Strike *

99 - Surface Strike (Std.)
99 - Surface Strike (Std.)
98 - Semi Mortise Strike
98 - Semi Mortise Strike

Option *

$458.85

About this item

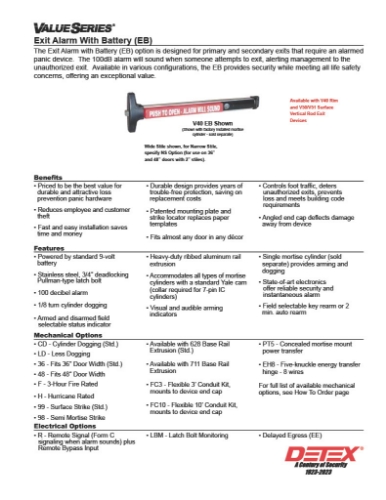

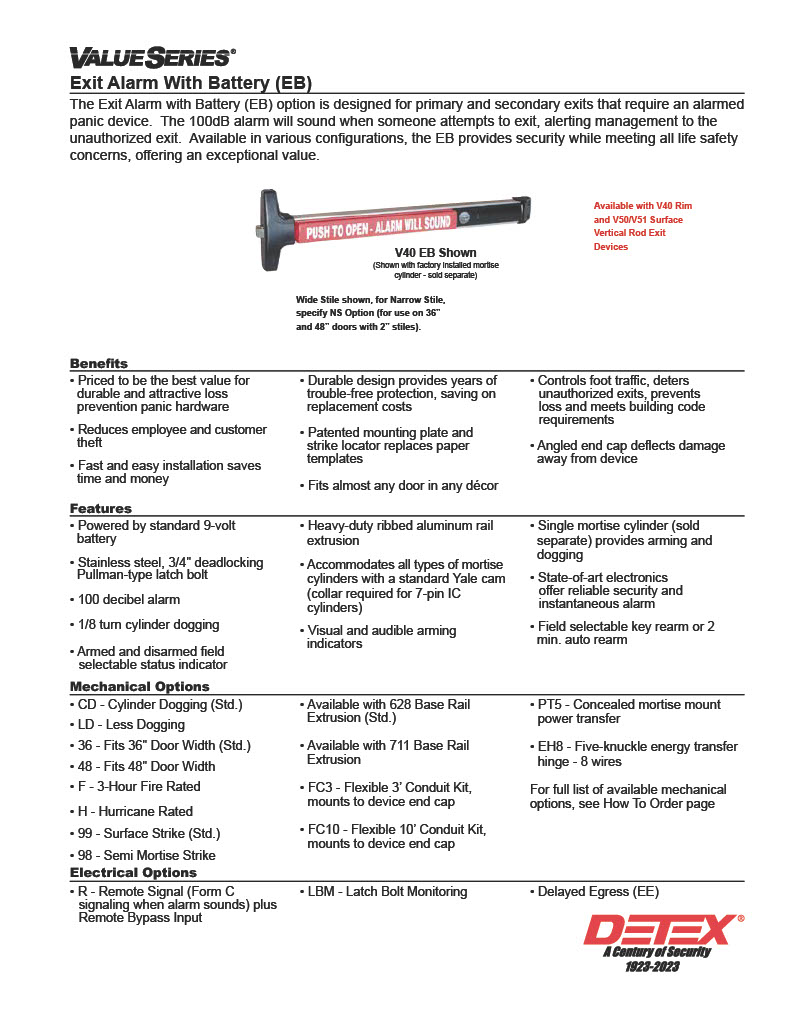

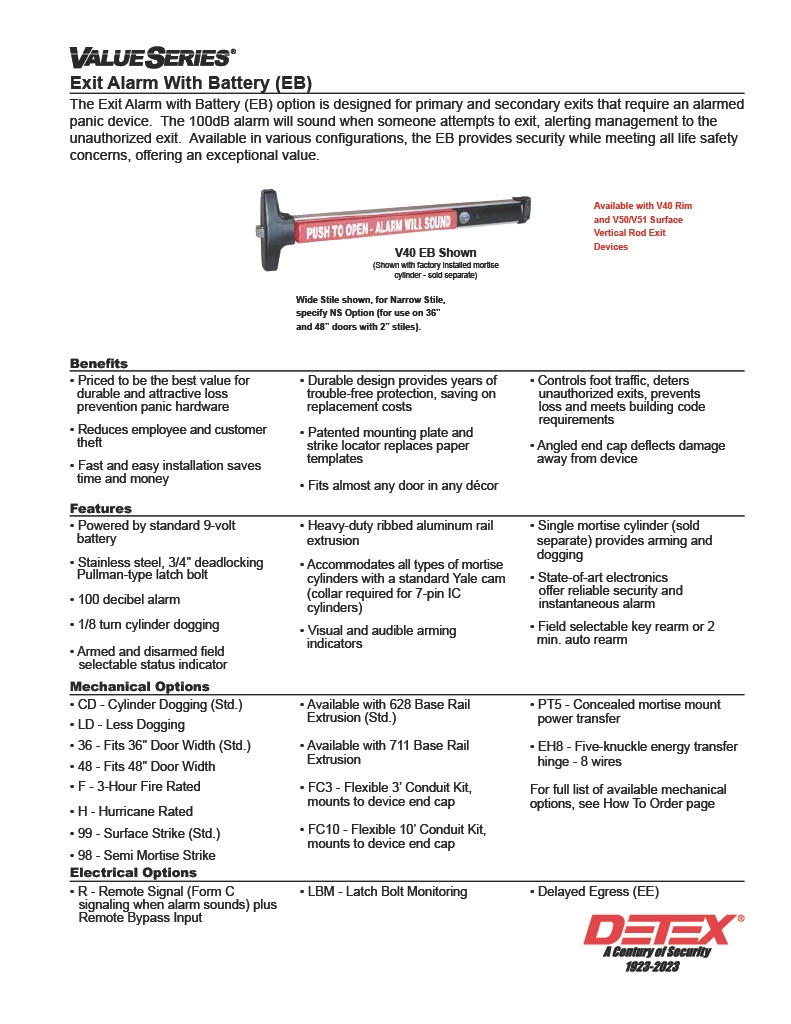

The V40xEB/EH is designed for primary and secondary exits that require an alarmed panic device. The 100dB alarm will sound when someone attempts to exit, alerting management to the unauthorized exit. Available in various configurations, the V40xEB provides security while meeting all life safety concerns, offering an exceptional value.

Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device

EB- Exit Alarm - Battery Powered

Standard Package Includes: - Switch monitors pushpad movement and triggers alarm - Green & Red LED, cylinder arming, 9-volt battery and piezo horn - Cylinder Dogging (CD) standard or Less Dogging (LD - NOTE: Fire Rated devices come LD only). - Pushpad Signage "Push to Open Alarm Will Sound"

Trims For the V40 series are: *01P01PN, 02A02AN02WP03P03PN03CN03WS03A03AN02BN08BN, 09BN14BN.*

36- Fits 36" Door Width 48- Fits 48" Door Width

Powered by standard, 9-volt battery

Door Thickness: 1-3/4" - 2-1/4"

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

Cylinder Dogging (CD) Standard

Stainless steel, 3/4" deadlocking Pullman-type latch boltSingle mortise 1-1/8" cylinder (sold separate) provides arming and dogging - 1/8 turn cylinder dogging

Field selectable key rearm or 2 min. auto rearm

Visual and audible arming indicators

Armed and disarmed field selectable status indicator

100+ Decibel alarm

10 Year Mechanical/3 Year Electrical  - Limited Manufacturer's Warranty

Model:Detex, V40EB, V40xEB, V40EBCD, V40EBCD628, V40EBCD6289836, V40EBCD6289848, V40EBCD6289936, V40 EB CD6289948, V40EBCD711, V40EBCD7119836, V40EBCD7119848, V40EBCD7119936, V40EBCD7119948

V40 EA CD

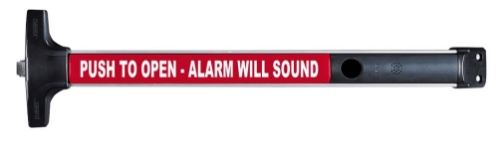

Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device

Product code: V40EBCD

In Stock

$743.00

$458.85

UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion

Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02

State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall -4140-0127:105 and 3725-0127:108

V40 EA CD
Detex V40 EB CD, Battery Powered Alarmed Rim Exit Device

Product code: V40EBCD

In Stock

$743.00

$458.85

Parts & Accessories

Detex V40 EB W CD
Detex V40 EB W CD, Battery Powered Alarmed Weatherized Rim Exit Device

Product code: W561BD

In Stock
$1,142.00

$713.64

V40 EA CD
Detex V40 EA CD, Hardwired Alarmed Rim Exit Device

Product code: W561BD

In Stock
$976.00

$601.92

D_03P
Detex 03P Pull Trim

Product code: W561BD

In Stock
$119.00

$74.10

D_03PN
Detex 03PN Pull Trim

Product code: W561BD

In Stock
$119.00

$74.10

D_08BN
Detex 08BN Entry Lever Trim

Product code: W561BD

In Stock
$372.00

$229.14

D_08BN
Detex 09BN Storeroom Lever Trim

Product code: W561BD

In Stock
$372.00

$229.14

D_14BN
Detex 14BN Passage Lever Trim

Product code: W561BD

In Stock
$372.00

$229.14

nopicture
Detex NSK Narrow Stile Door Kit for Value Series Device

Product code: W561BD

In Stock
$118.00

$99.06

03PP
Detex 03PP Trim Pull Plate

Product code: W561BD

In Stock
$227.00

$191.88

94 double
Detex 94 Double Door Strike - for 10/40 Series Rim Devices

Product code: W561BD

In Stock
$81.00

$68.64

02a
Detex 02A 689 Dummy Pull Trim - 3 1/2" x 13 1/2"

Product code: W561BD

In Stock
$135.00

$80.94

02an

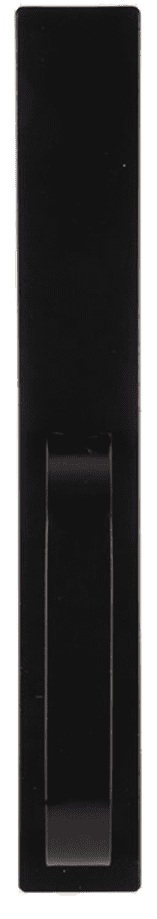

Detex 02AN 689 Dummy Pull Trim - 1 7/8" x 13 1/2"

Product code: W561BD

In Stock
$135.00

$80.94

03a
Detex 03A 689 Nightlatch Pull Trim - 3 1/2" x 13 1/2"

Product code: W561BD

In Stock
$135.00

$80.94

03an
Detex 03AN 689 Nightlatch Pull Trim - 1 7/8" x 13 1/2"

Product code: W561BD

In Stock
$135.00

$80.94

03gs
Detex 03GS, 03 Function Cylinder Trim, for Gate Applications

Product code: W561BD

In Stock
$155.00

$131.04

PT5
Detex PT5 Advantex/Value Series Component, Power Transfer Option

Product code: W561BD

In Stock
$184.37

$52.36

GTPLGRD

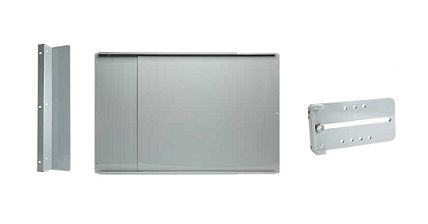

Detex GTPLGRD, GTPLV40 Component, Gate Latch Protector
