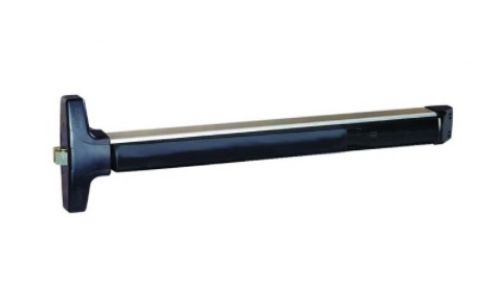

Detex V40 HD, Rim Panic Exit Device w/Hex Key Dogging - No Alarm

Detex V40 HD, Rim Exit Device with Hex Key Dogging - No Alarm

Trims For the V40 series are: *01P, 01PN, 02A, 02AN, 02WP, 03P, 03PN, 03CN, 03WS, 03A, 03AN, 02BN, 08BN, 09BN, 14BN.*

36- Fits 36" Door Width 48- Fits 48" Door Width

Door Thickness: 1-3/4" - 2-1/4"

Finishes: 628 - Aluminum, 711 - 711 - Black

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors.  For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners:Machine and Self-Drilling Screws

 HD - Hex Dogging

Stainless steel, 3/4" deadlocking Pullman-type latch bolt 10 Year Mechanical - Limited Manufacturer's Warranty

Model:Detex, V40HD, V40HD628, V40HD711, V40HD6289836, V40HD6289848, V40HD6289936, V40 HD 6289948, V40HD711, V40HD7119836, V40HD7119936, V40HD7119948

UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of  4'x8' with F90KR keyed removable Mullion

Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02

State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall -4140-0127:105 and 3725-0127:108
