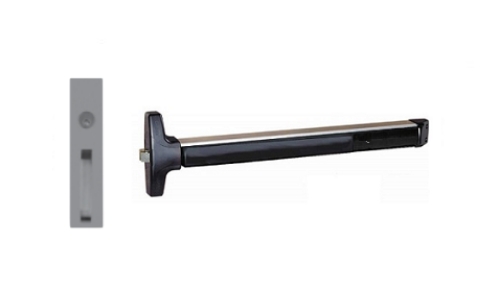

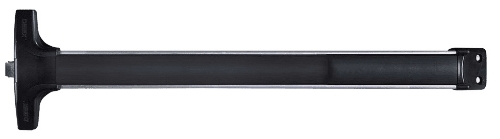

Detex V4003A HD, Rim Panic Exit Device Hex Dogging - Key retracts pull; pull trim - 36" - No Alarm

Detex V4003A HD, Rim Panic Exit Device Hex Dogging - Key retracts pull; pull trim - No Alarm**

Trim: *Key retracts pull; pull trim * Rim cylinder not included (order separately).

36- Fits 36" Door Width.

48- Fits 48" Door Width.

HD- Hex Dogging

Door Thickness: 1-3/4" - 2-1/4".

Finishes: 628 - Aluminum.

Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike.

Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and flush doors.  For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.

NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)

Fasteners: Machine and Self-Drilling Screws

Stainless steel, 3/4" deadlocking Pullman-type latch bolt 10 Year Mechanical - Limited Manufacturer's Warranty

Model:Detex, V4003AHD, V4003AHD628, V4003AHD711, V4003AHD6289836, V4003AHD6289848, V4003AHD6289936, V4003A HD 6289948, V40013AH711, V40013AH7119836, V40013HD7119936, V40H7119948

UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion

Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure

ANSI/BHMA certified A156.3

Meets NFPA 80 & 101 for Life Safety

Miami-Dade County, Florida NOA 10-0303.02

State of Florida Approval FL9052 EXP. 04/07/15

California State Fire Marshall -4140-0127:105 and 3725-0127:108
