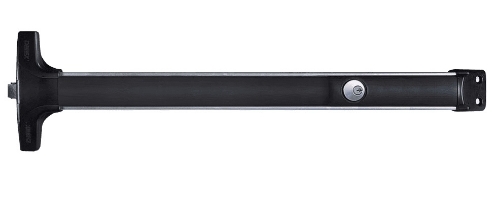

Detex V4003AN CD 48, Rim Panic Exit Device Cylinder Dogging - Key Retracts Pull - Pull Trim; Narrow Trim - 48" - No Alarm
Product Details
Detex V4003AN CD 48, Rim Panic Exit Device Cylinder Dogging - Key Retracts Pull - Pull Trim; Narrow Trim - 48" - No Alarm
Trim: *Key retracts pull - pull trim; narrow trim.
* Rim cylinder not included (order separately).
48 - Fits 48" Door Width.
CD- Cylinder Dogging
Door Thickness: 1-3/4" - 2-1/4".
Finishes: 628 - Aluminum.
Door Stile: Fits 2-1/2" stile doors with 98 semi-mortise strike - Fits standard doors with 99 strike.
Standard V40 Rim Device accommodates wide stile doors, 3" or greater stile, and
flush doors. For Narrow Stile doors, 2" to 2 1/2" stiles add "NSK" Kit.
NSK - Narrow Kit - for 2" narrow stile glass door applications (Option)
Fasteners: Machine and Self-Drilling Screws
Stainless steel, 3/4" deadlocking Pullman-type latch bolt
10 Year Mechanical - Limited Manufacturer's Warranty
Model:Detex, V4003ANHD, V4003ANHD628, V4003ANHD711, V4003ANHD6289836, V4003ANHD6289848, V4003ANHD6289936, V4003A HD 6289948, V40013ANH711, V40013ANH7119836, V40013HD7119936, V40H7119948
